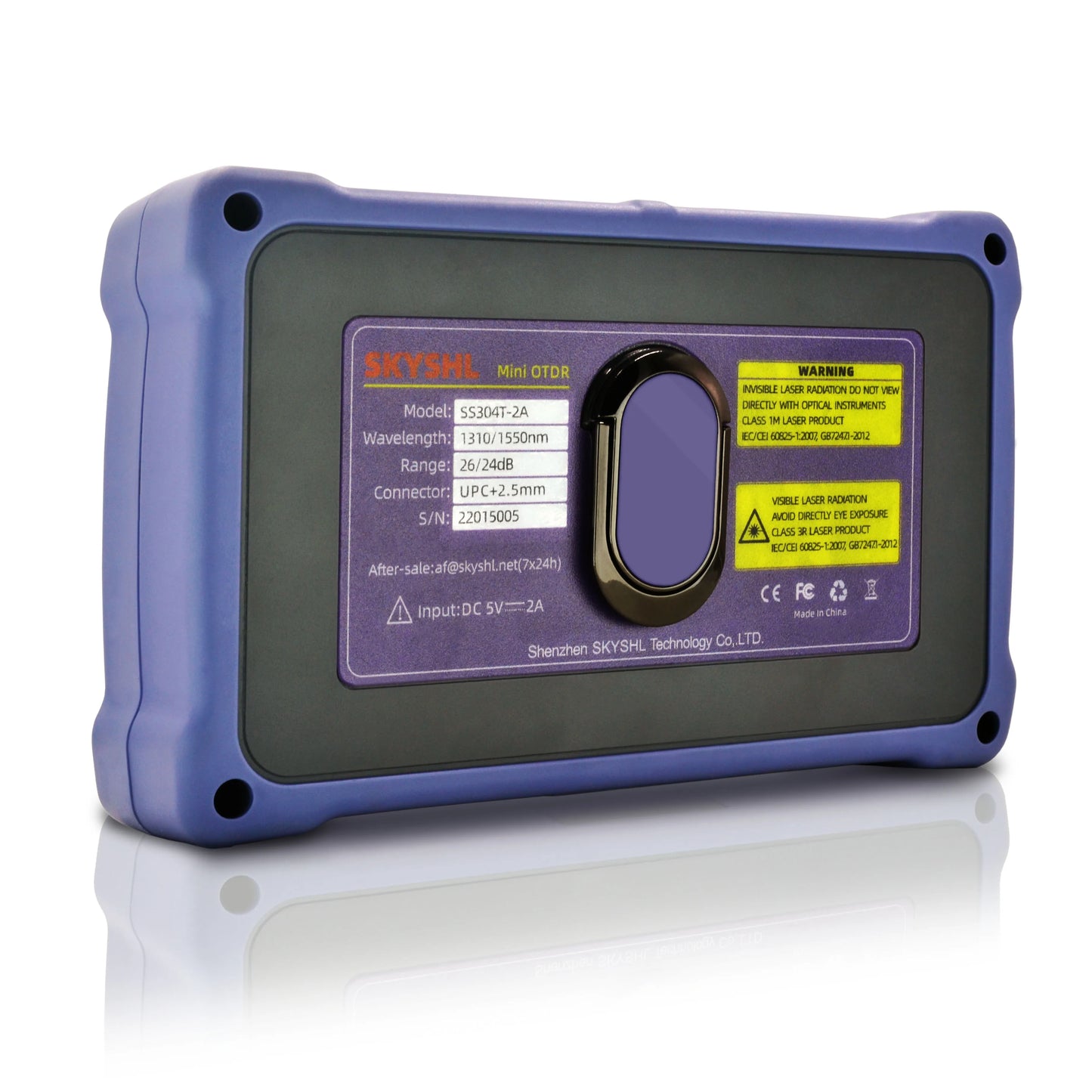

1310nm/26dB+1550nm/24dB SM Fiber OTDR Tester (Built-in OPM+OLS+VFL+Event Map) Compatible with SC+FC+ST+LC/UPC&APC Connector

1310nm/26dB+1550nm/24dB SM Fiber OTDR Tester (Built-in OPM+OLS+VFL+Event Map) Compatible with SC+FC+ST+LC/UPC&APC Connector

$399.99 USD
$0.00 USD $399.99 USD
Sale Sold out
Shipping calculated at checkout.
Ships From

SPECIFICATIONS



Battery: 3.7V 4000Ah lithium battery



Brand Name: SKYSHL

Certification: CE

DataStorage: 300000 groups of curve(8G)

Dimension: 6.8*4.2*1.6Inches/0.98LB(Include Battery)

Display: 4.3inches HD TFT Color touch screen

Dynamic range: 26dB+24dB

EDZ/ADZ: 2.5m/8m

Hign-concerned Chemical: None

Model Number: SS304T-2A1

Optical Light Source/OLS: 1310nm+1550nm(≥-5dBm/CW, 270Hz, 1kHz and 2kHz)

Optical Loss Test: 1310nm+1550nm

Optical Power Meter/OPM: 800nm~1700nm; -50~+26dB

RJ45 Cable Tracker: >300m

Size: 170*110*45mm/6.7*4.3*1.7inch

The max test distance: 96km

VFL: 10km(650nm±20nm/CW, 1Hz and 2Hz)

Wavelength: 1310nm+1550nm

Wireless function: No

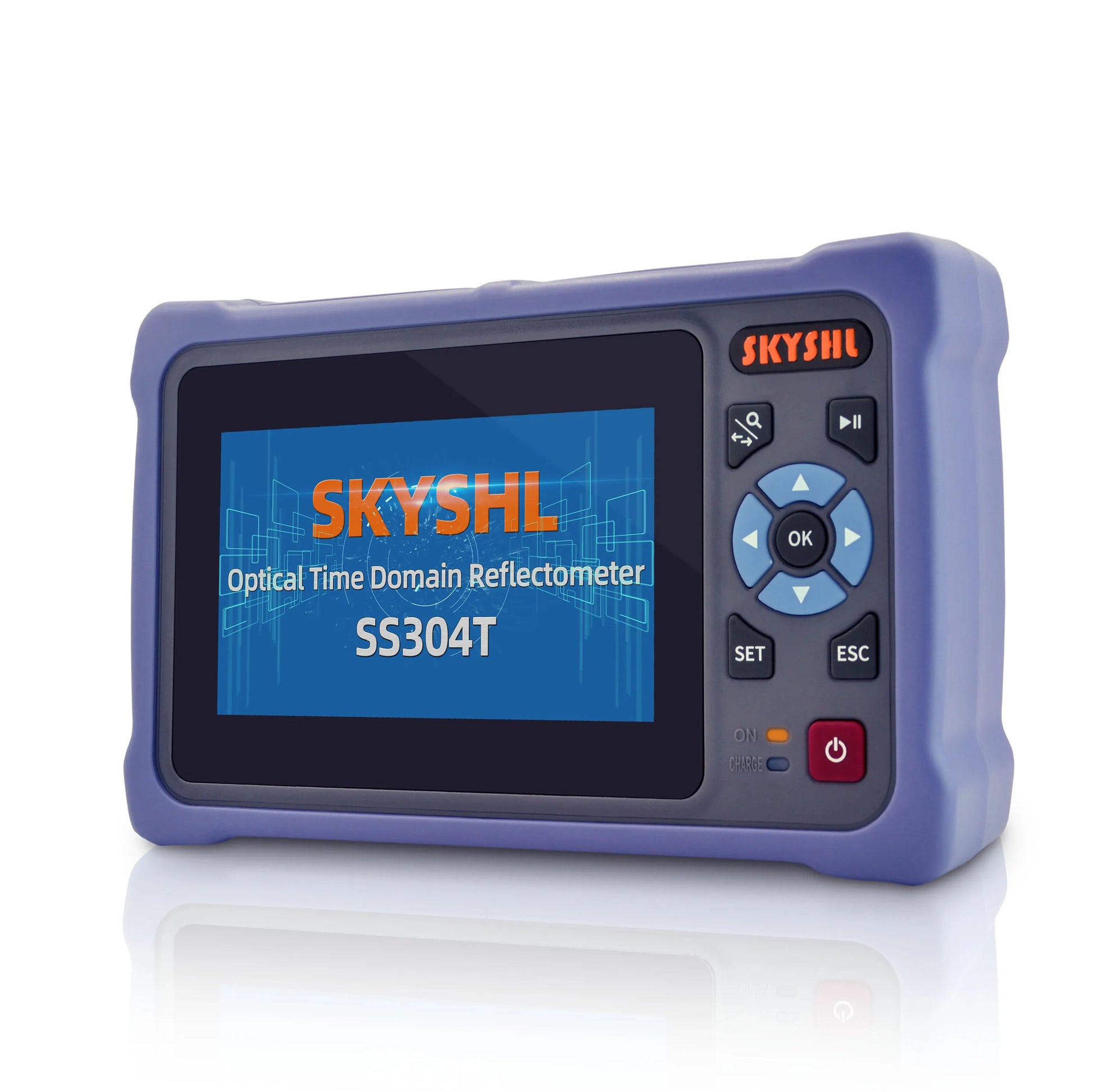

SKYSHL 1310nm/26dB+1550nm/24dB SM Fiber OTDR Tester

An Optical Time Domain Reflectometer (OTDR) is an important instrument used by organizations to certify the performance of new fiber optics links and detect problems with existing fiber links.

With the rapid advancements in fiber optic technology, OTDR testing methods have become indispensable to building, certifying, maintaining and troubleshooting fiber optic systems.

SKYSHL provides a new Optical Time Domain Reflectometer(OTDR)--SS304T series. They are used to measure the fiber length and overall optical attenuation in a circuit. The analyzed data provides insight into the integrity of the fiber and any passive optical components (such as connectors, splices, splitters, and multiplexers) transmitted along the cable path.

SKYSHL 1310nm+1550nm 26dB+24dB SM Fiber OTDR Key Features:


  • 1310nm+1550nm 26dB+24dB OTDR tester(Max Test Distance:95km/59mi).

  • The body of the SS304T is very small, and it is very convenient to carry outdoors.

  • The 4.3-inch capacitive touch screen makes the operation more sensitive.

  • 3.7V/4000mAh lithium battery, continuous 11-15 hours

  • Integrate OPM, VFL, OLS,Optical Loss Test,RJ45 Cable Tracker and Event map(Graphical analysis).

  • One touch operation, automatic analysis, and tailored OTDR user interface for different skill level.Very short Event dead zone(2.5m) and Attenuation dead zone(8m).

  • Compatible interfaces: 2.5mm universal interface,SC, FC, ST, LC UPC&APC adapter.

  • Auto OTDR, expert OTDR,Event map,Smart Graphical analysis of fiber optic connections

  • Support for SOR formats.

  • Multi-language support: English,Russian,Spanish,French and Portuguese.


Intelligence OTDR

The Auto test lets you take advantage of the full power of your OTDR—bringing automation to a new level and enabling untrained technicians to become test experts in no time.

With one click, the unit automatically performs link recognition, sets the optimal parameters and launches multiple acquisitions and analyses—at multiple wavelengths—consolidating the results obtained for every link section and every network element. Get accurate information right away on each link element and export it to a single report.

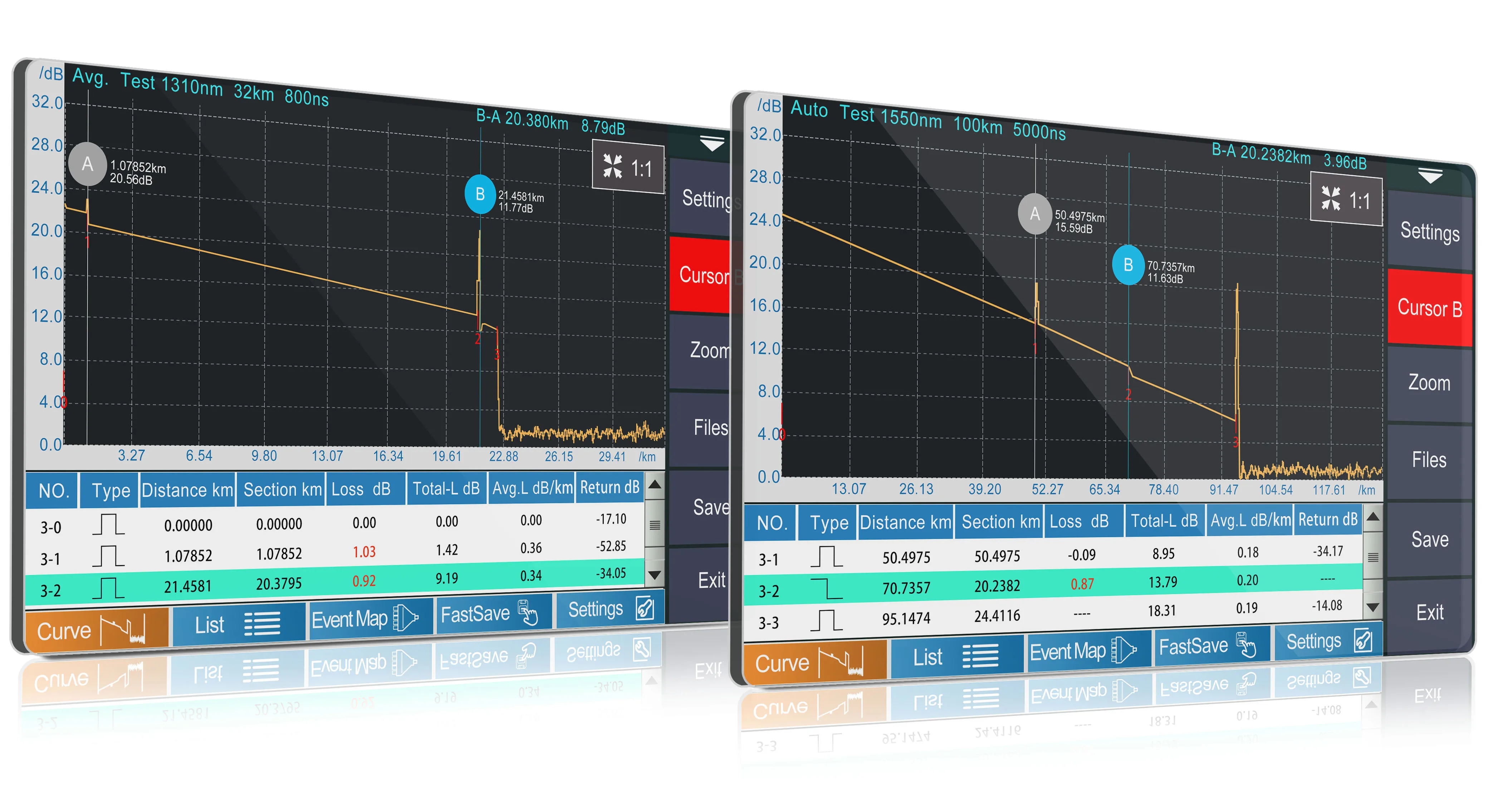

Of course, you can also perform manual testing according to your actual optical fiber network. The parameter setting is also very simple, and it only takes a few steps to complete, such as wavelength,test range, pulse width, test time, etc. The curve obtained by manual test more satisfies your actual requirements.

At the same time, SKYSHL SS304T series OTDR has the most advanced optical technology, which can achieve extremely short Event dead zone (SM typical value is 0.5m) and Attenuation dead zone (SM typical value is 3m). This advanced optical technology enables SS304T It can detect the failure of very short fibers.

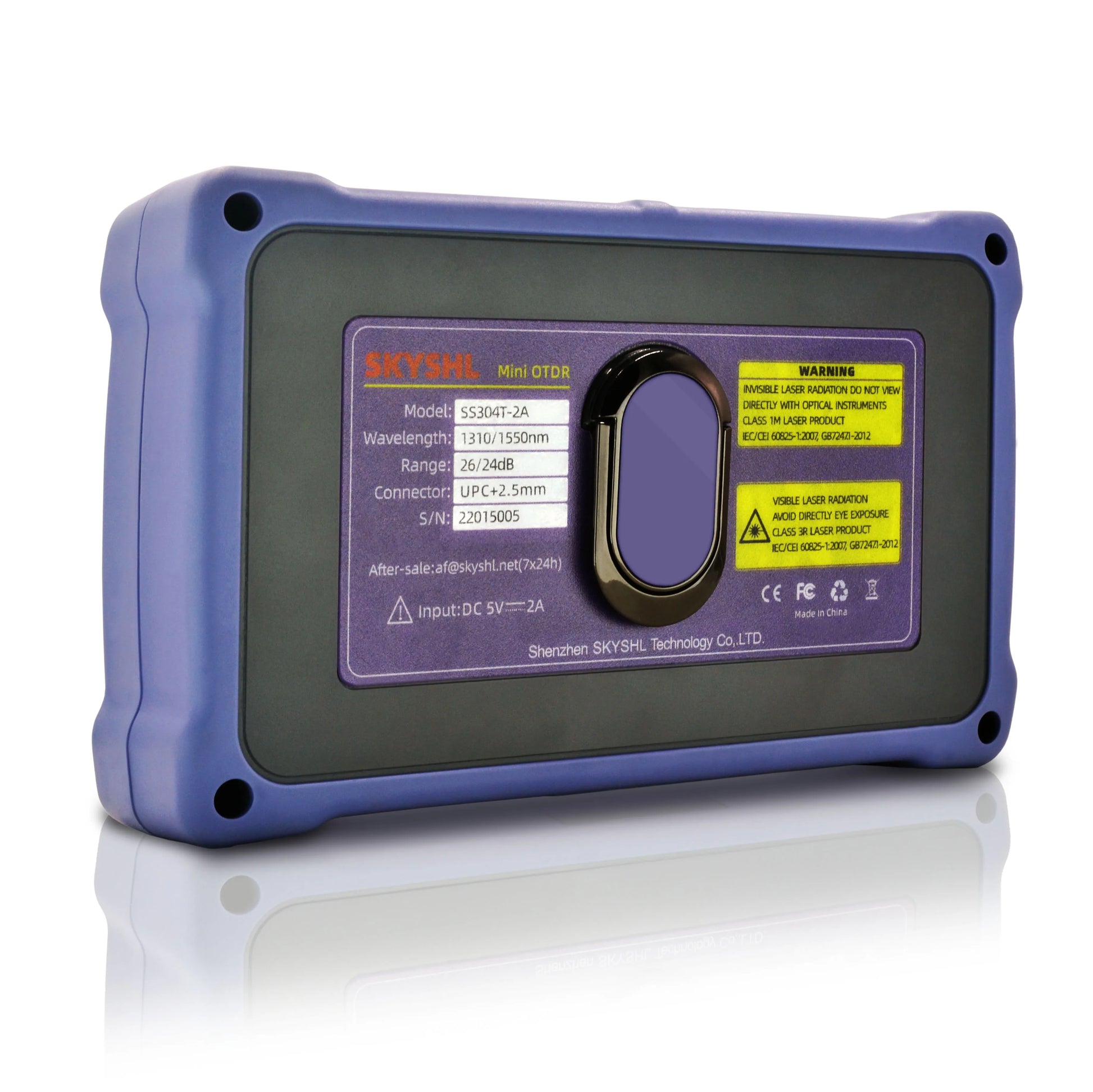

SS304T-2A(1310nm+1550nm 26dB+24dB) SM Fiber OTDR Key Parameters:

  • Wavelength/Dynamic range:1310nm+1550nm/26dB+24dB(Max Test Distance:95Km/59mi);EDZ/ADZ:2.5m/8M.

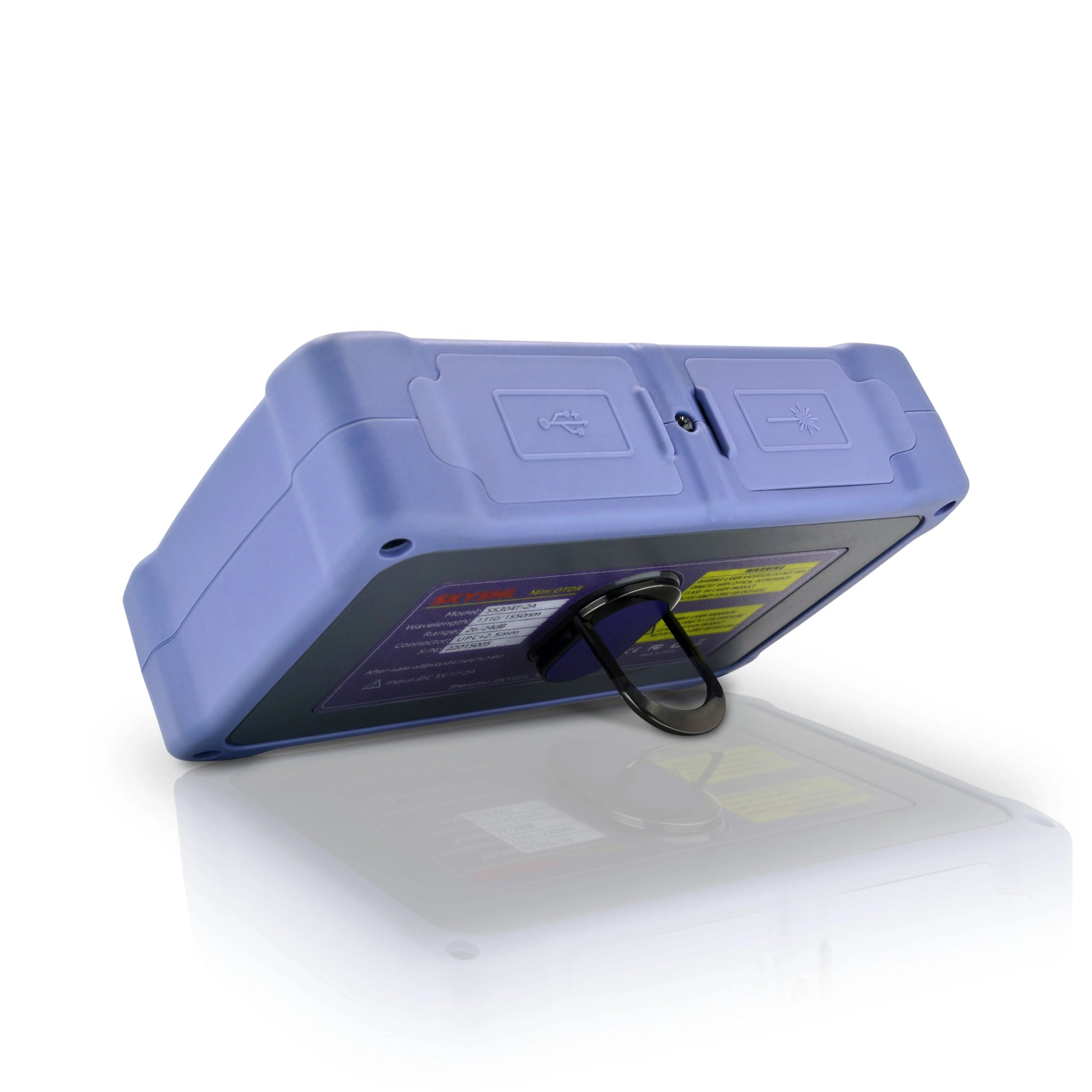

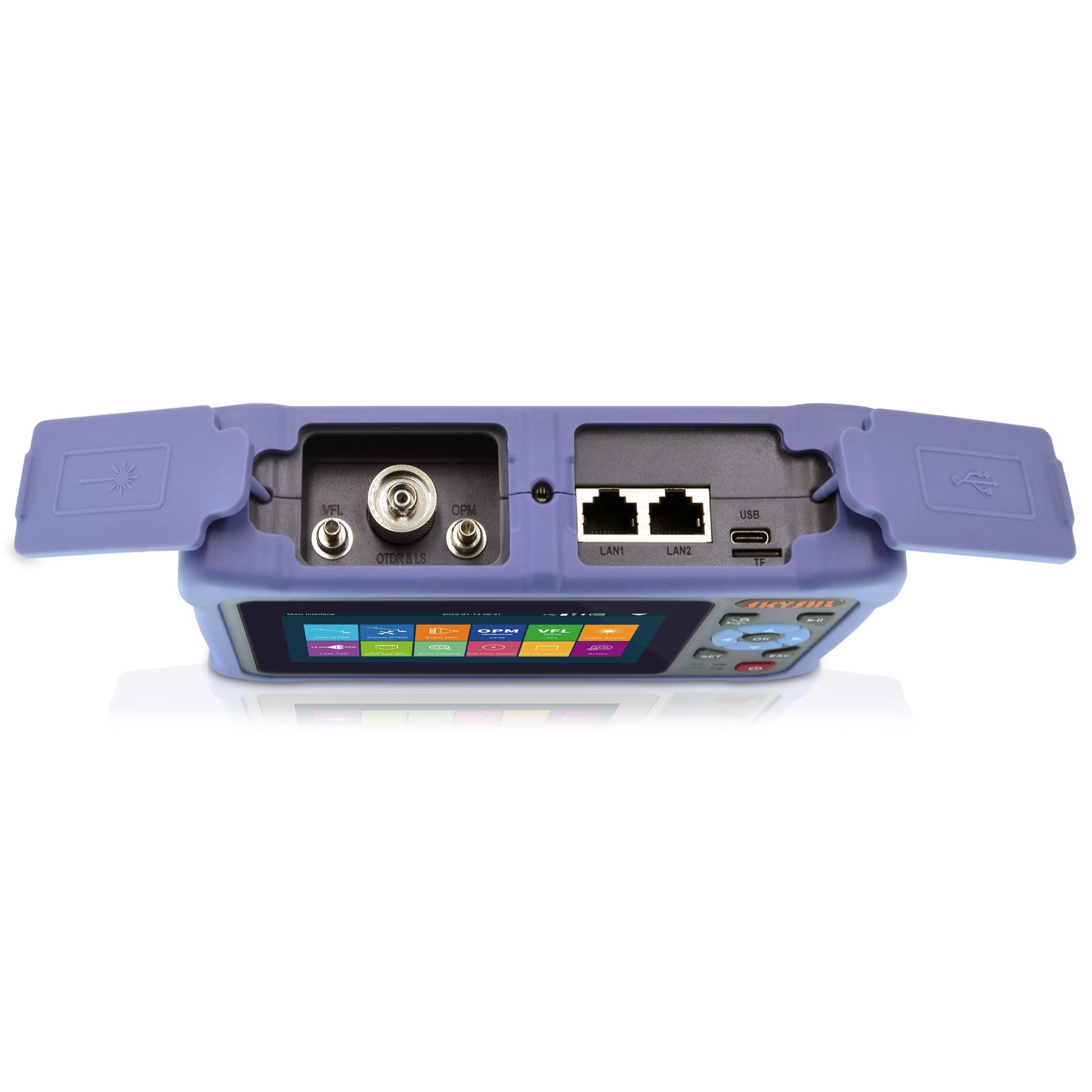

  • External interfaces:Type USB, LAN1,LAN2, and TF Micro SD.

  • Display:4.3inch TFT capacitive touching screen.

  • Battery:3.7V/4000mAh lithium battery, continuous 11-15hours.

  • Optical Power Meter:850nm-1650nm/-50~+26db;Optical Loss Test:1310nm+1550nm

  • Light Source:1310nm+1550nm(≥-5dBm/CW, 270Hz,330Hz,1kHz and 2kHz);VFL:10km(650nm±20nm/CW, 1Hz and 2Hz);RJ45 Cable Tracker:>300m.

  • Power Supply:AC/DC adapter:AC100V~240V;DC: 5V(2A).

  • Compatible interfaces: SC, ST, FC, LC UPC&APC adapter.

  • Dimension:170*110*45mm/0.5kg(Include Battery).

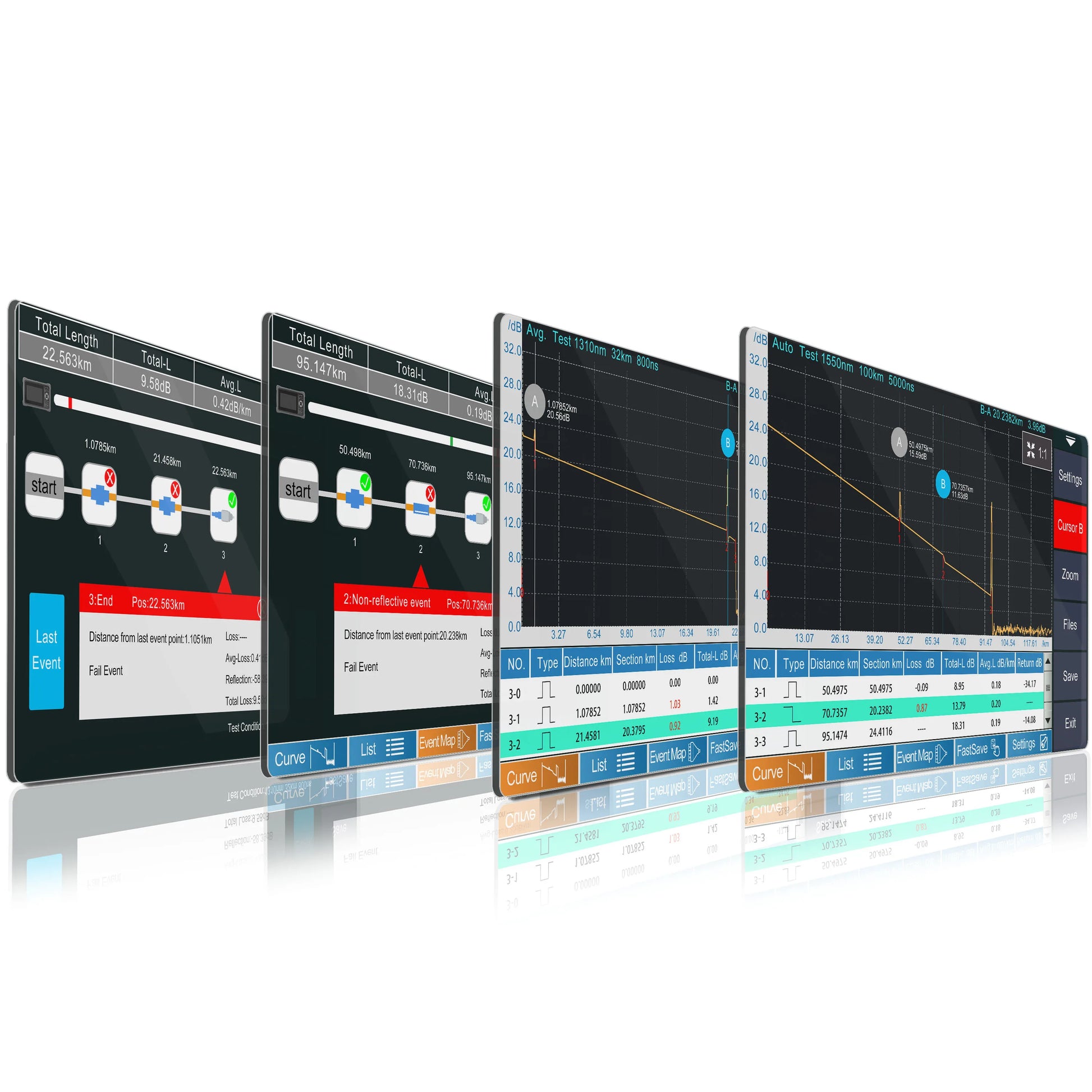

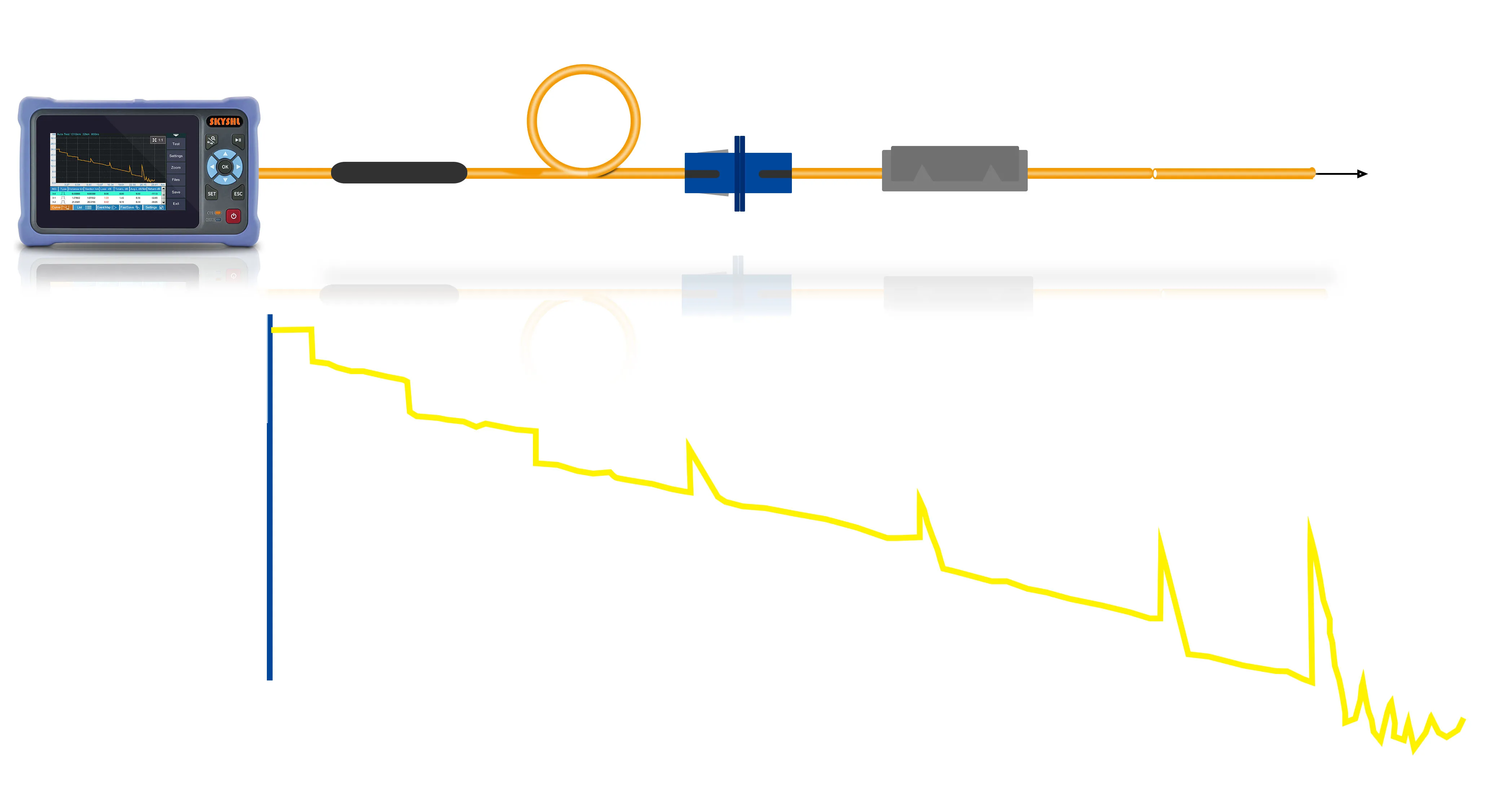

OTDR Test Curve and Event Type

A picture is worth a thousand words, and the OTDR picture (or "trace") takes a lot of words to describe all the information in it!

The slope of the fiber trace shows the attenuation coefficient of the fiber and is calibrated in dB/km by the OTDR. Connectors and splices are called "events" in OTDR jargon. Both should show a loss, but connectors and mechanical splices will also show a reflective peak. The height of that peak will indicate the amount of reflection at the event.

Reflective pulses can show you the resolution of the OTDR. You cannot see two events closer than is allowed by the pulse width. Generally longer pulse widths are used to be able to see farther along the cable plant and narrower pulses are used when high resolution is needed, although it limits the distance the OTDR can see.

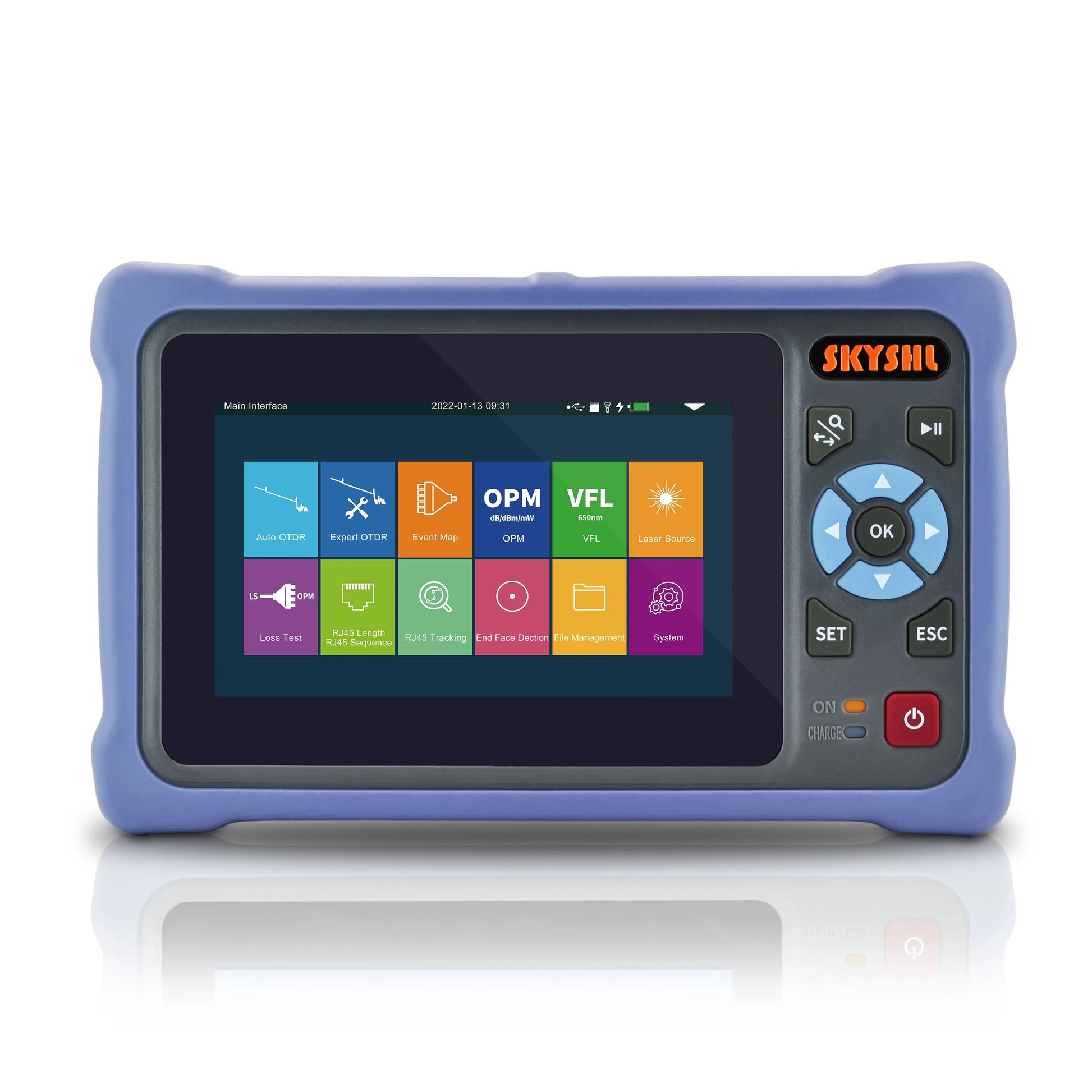

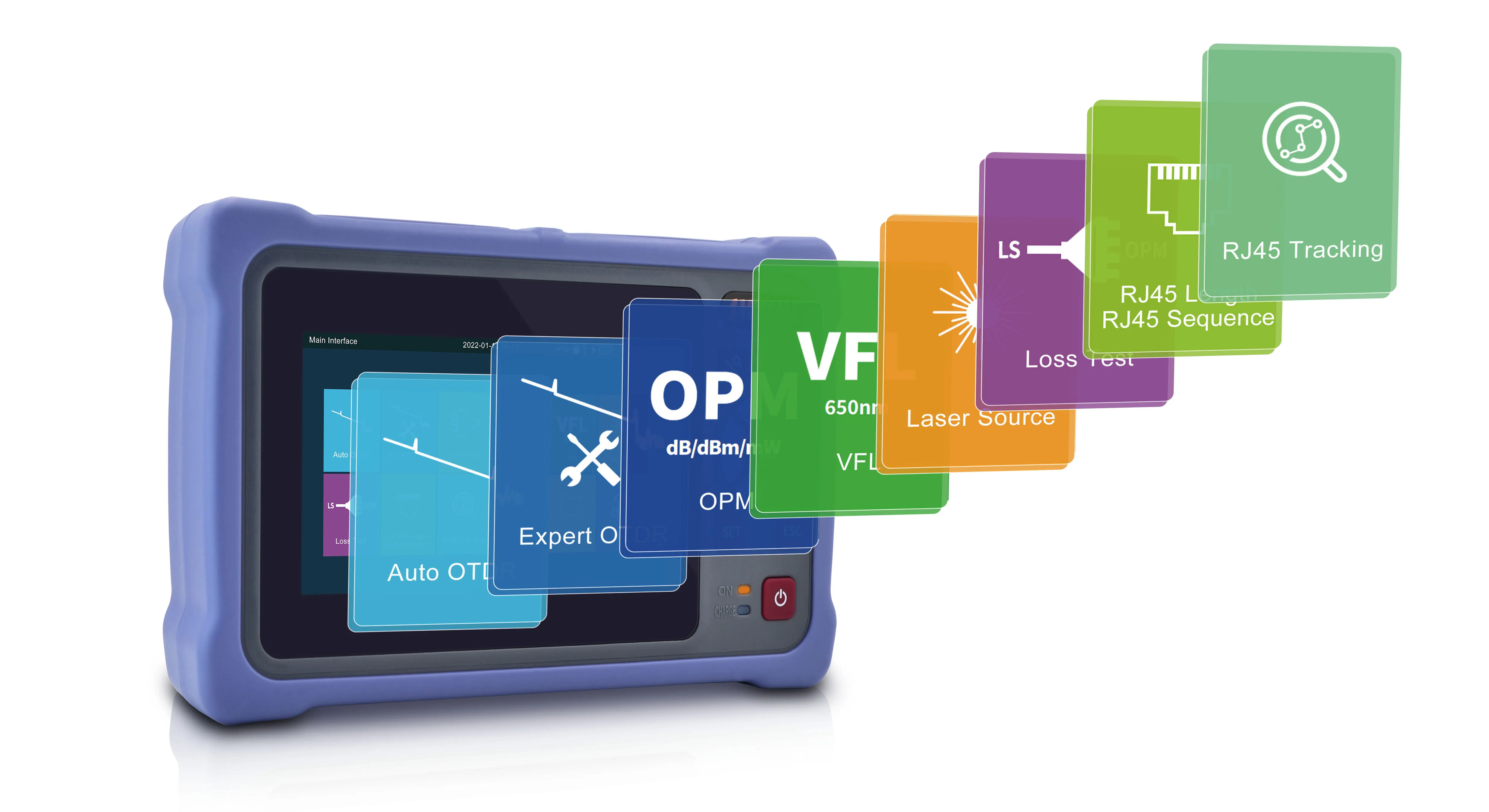

Built-in Auto OTDR+Expert OTDR+OPM+OLS+VFL+Optical Loss Test+RJ45 Cable Tracker(Exclude End Face Dection)

SKYSHL SS304T-2A integrates all the basic functions for testing fibers, including (Auto OTDR/Expert OTDR-1310nm+1550nm/26dB+24dB), visual fault location (650nm,10km), optical power meter (OPM-850nm-1650nm/-50~+26db),optical light source (OLS-1310nm+1550nm),Optical Loss Test(OFLT-1310nm+1550nm) and RJ45 Cable Tracker(Test Distance>300m). Engineers no longer have to carry a lot of equipment when working outdoors.

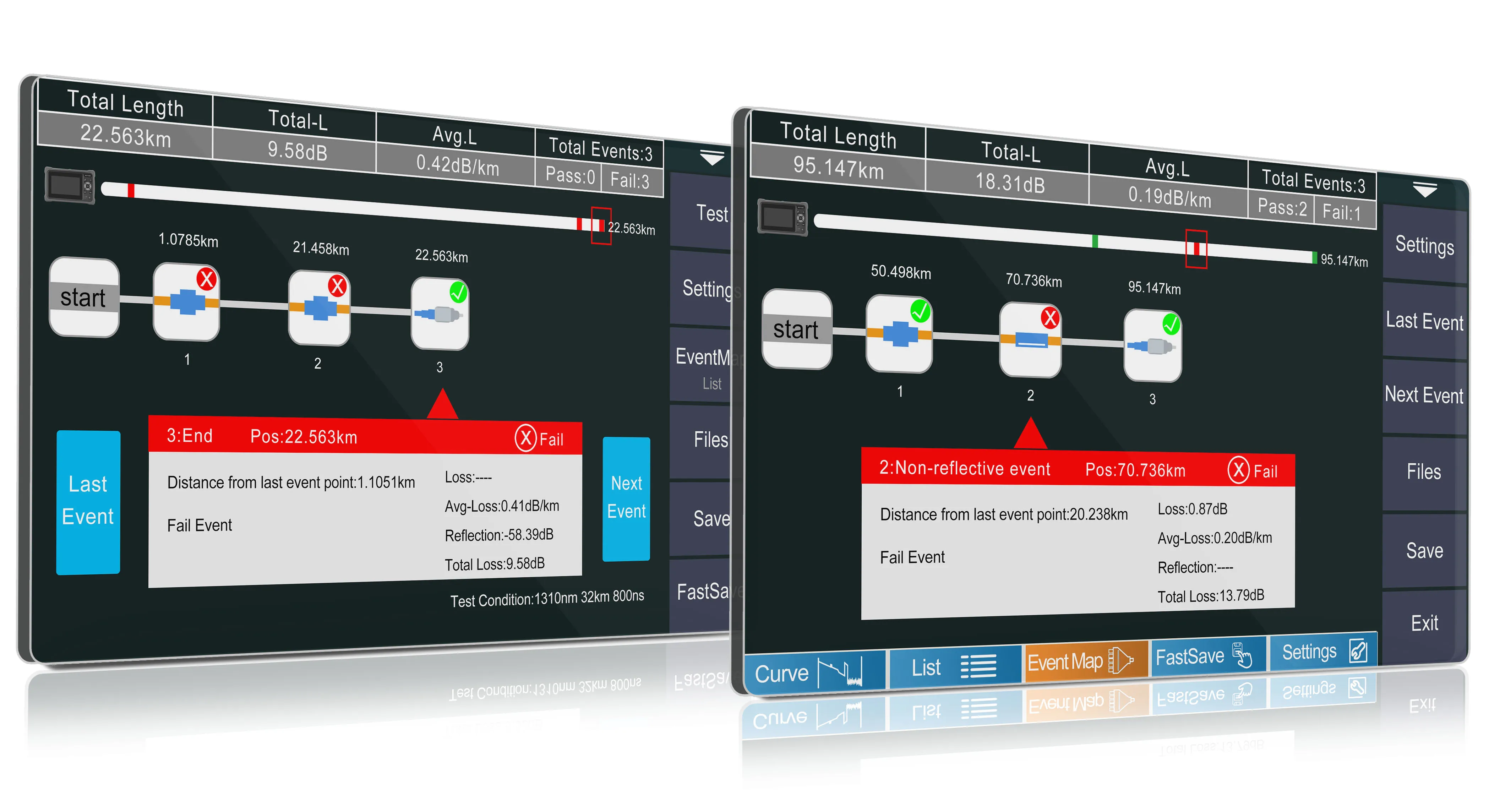

Event Map/Graphics Analysis Mode

The OTDR optical fiber test is simplified through the event map, and the representation accuracy of the network topology is optimized through intelligent algorithms, and all network components and fault locations are dynamically located and identified at the maximum resolution, thereby bringing a new experience to the optical fiber test engineer.

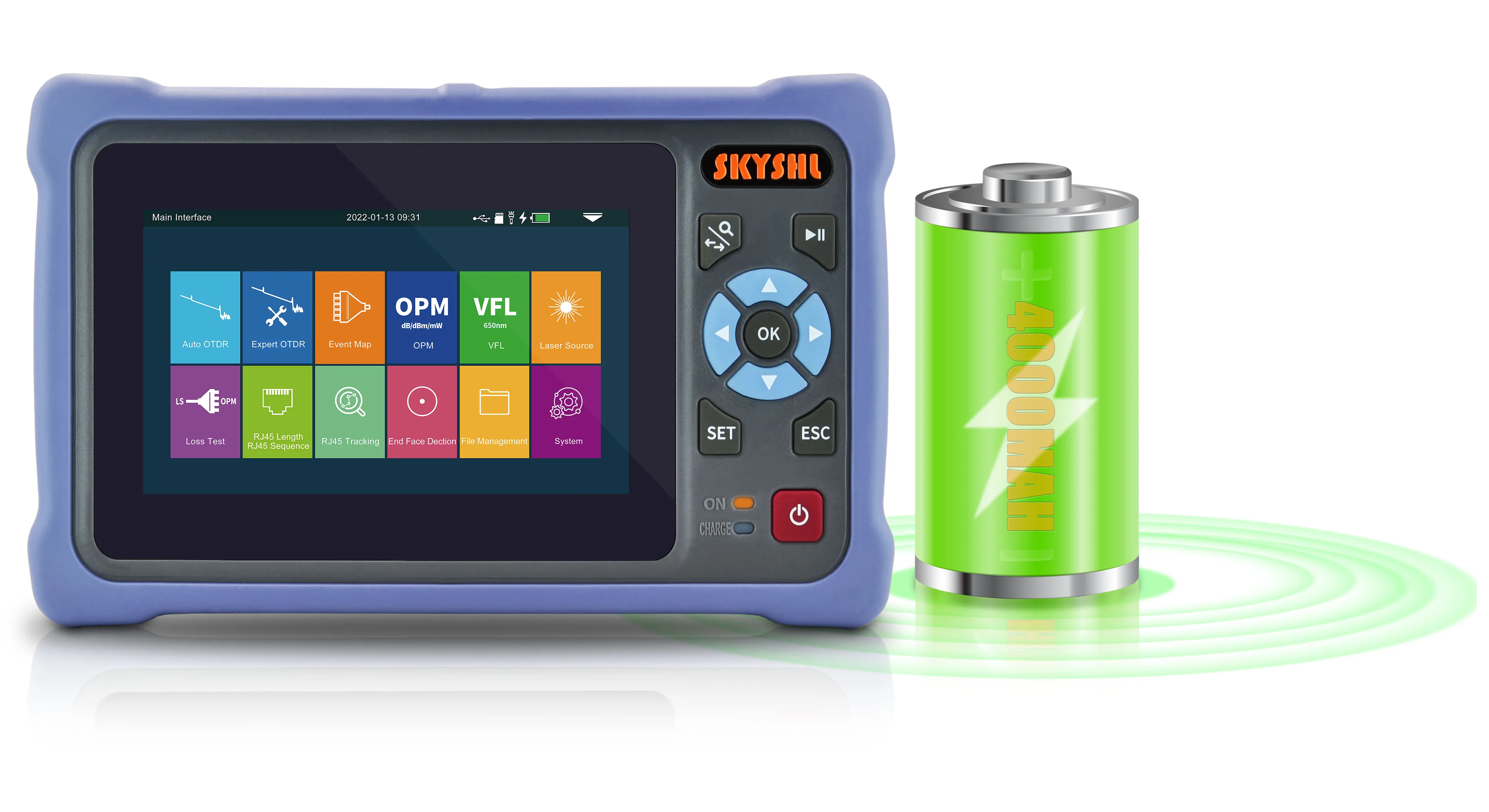

Rechargeable Lithium Battery

SKYSHL SS304T fully understands the needs and worries of users who work outdoors, and provides a set of high-quality large-capacity rechargeable lithium batteries (3.7V 4000mah) according to the actual needs of customers. It can work continuously for 15 hours on a full charge, basically satisfying users’ needs when work outdoors.

Optical fiber network has the characteristics of long transmission distance, fast transmission speed, low loss, and strong anti-interference ability. As more and more industries attach importance to intelligence and information technology, in addition to traditional broadband optical fiber networks, More and more data is transmitted through optical fiber networks in some emerging fields(Such as radio and television, railway, transportation, electric power, government affairs, etc.).

SS304T series OTDR is an important tool for the maintenance and construction of optical fiber networks. It is very suitable for radio and television networks, intelligent power networks, intelligent transportation systems, CCTV/CATV networks, government office networks, financial networks, FTTH, LAN, data centers and cloud computing network etc..

SS304T-2A(1310nm+1550nm 26dB+24dB) SM Fiber OTDR Applications:

  • Characterize point-to-point access & metro fiber networks.

  • Qualify and troubleshoot FTTH/PON networks.

  • Qualify and troubleshoot singlemode FTTA/DAS front haul.

  • Fiber Optic Lab Testing.

  • LAN,WAN for the purpose of telecommunication networks.

  • CATV systems.

  • Long distance optical networks.

  • FTTH Testing.

  • Other Fiber Optic Measurements.

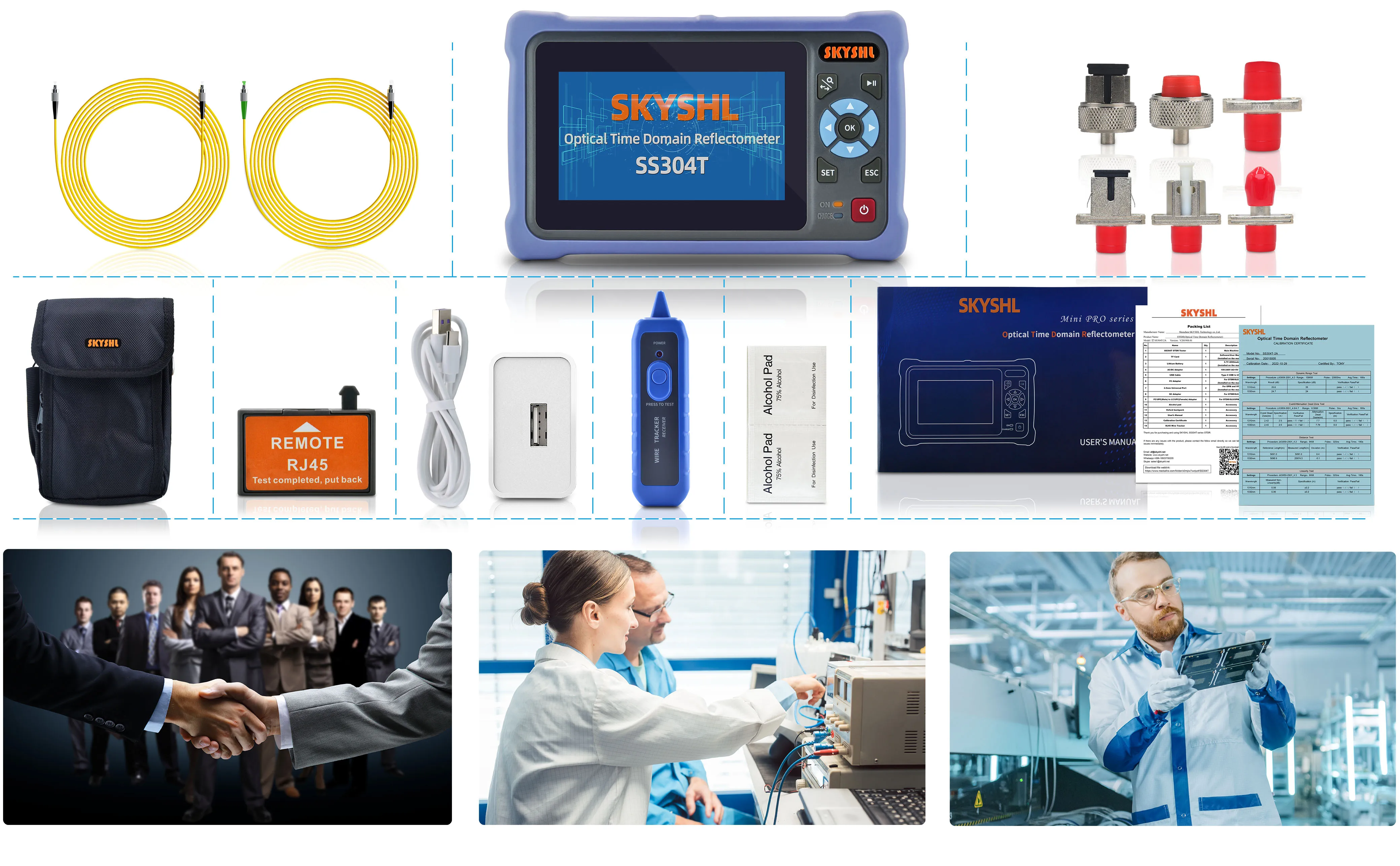

SS304T-2A(1310nm+1550nm 26dB+24dB) SM Fiber OTDR Package List：


1*OTDR+1*SC&FC/UPC for OTDR+2*2.5mm universal connector for OPM&VFL+5*Adapter(1*FC/UPC-LC/UPC+1*FC/APC-LC/APC+1*FC/UPC-SC/UPC+1*FC/UPC-ST/UPC+1*FC/APC-ST/APC)+2*Patch Cord(1*FC/UPC-FC/UPC+1*FC/UPC-FC/APC)+1*User Manual+1*USB Cable+1*Charger+1*Alcohol cleaning cloth+1*Oxford backpack+1*Calibration report+1*RJ45 cable locator.

Quality Control and SKYSHL


SKYSHL has more than 10 years of experience in manufacturing optical fiber inspection equipment such as fusion splicers, OTDRs, and optical power meters. We have an excellent R&D team and after-sales team. We regard product quality as life, and strictly follow ISO9001 for production management. The entire production process is strictly controlled, and all products have undergone high temperature test, low temperature test, vibration test, charge and discharge test before leaving the factory.

At the same time, we continue to improve our work and have a team of professional after-sales on standby 24 hours a day to provide each customer with a full range of professional technical guidance.

We provide detailed product information and usage videos for all products, such as user manuals, test reports, calibration certification, operation videos, maintenance videos, etc., so that customers can start working immediately after they get the products.

We provide a free replacement for 3 years. When you encounter problems, we are the strongest backing for our customers.
