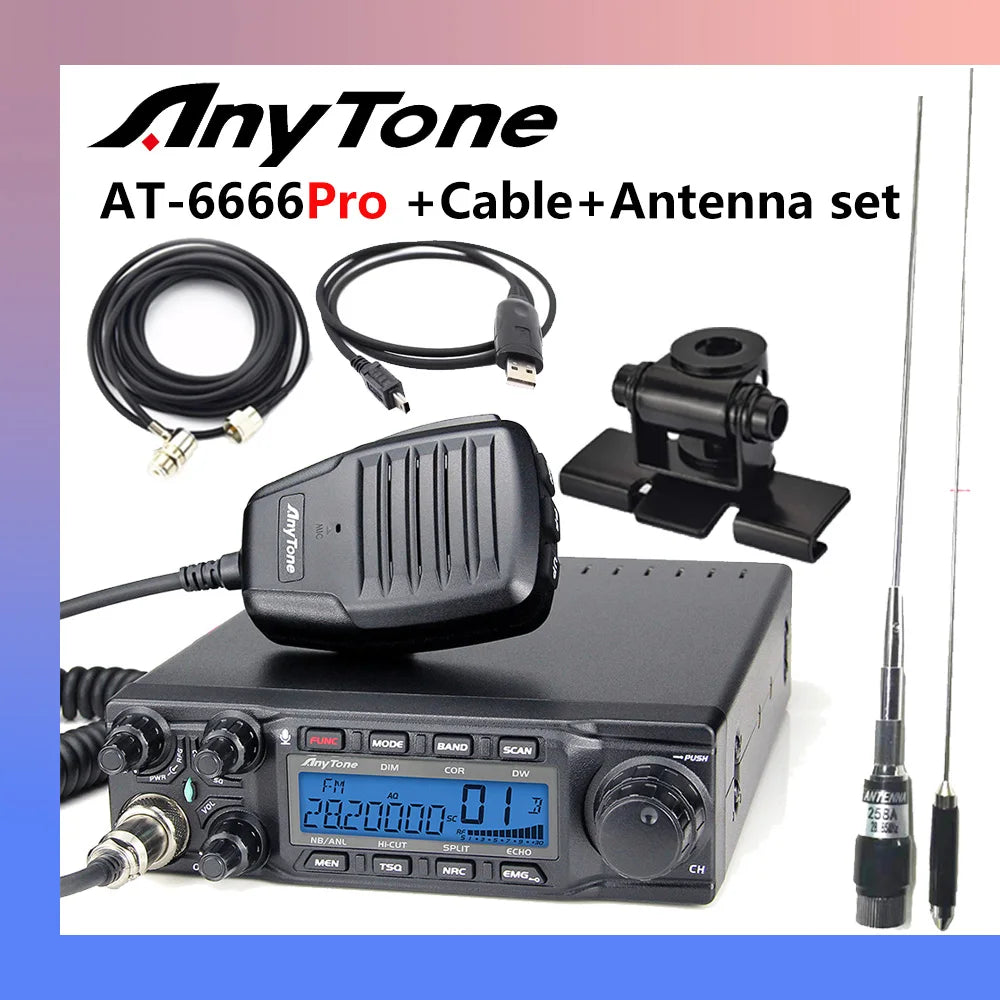

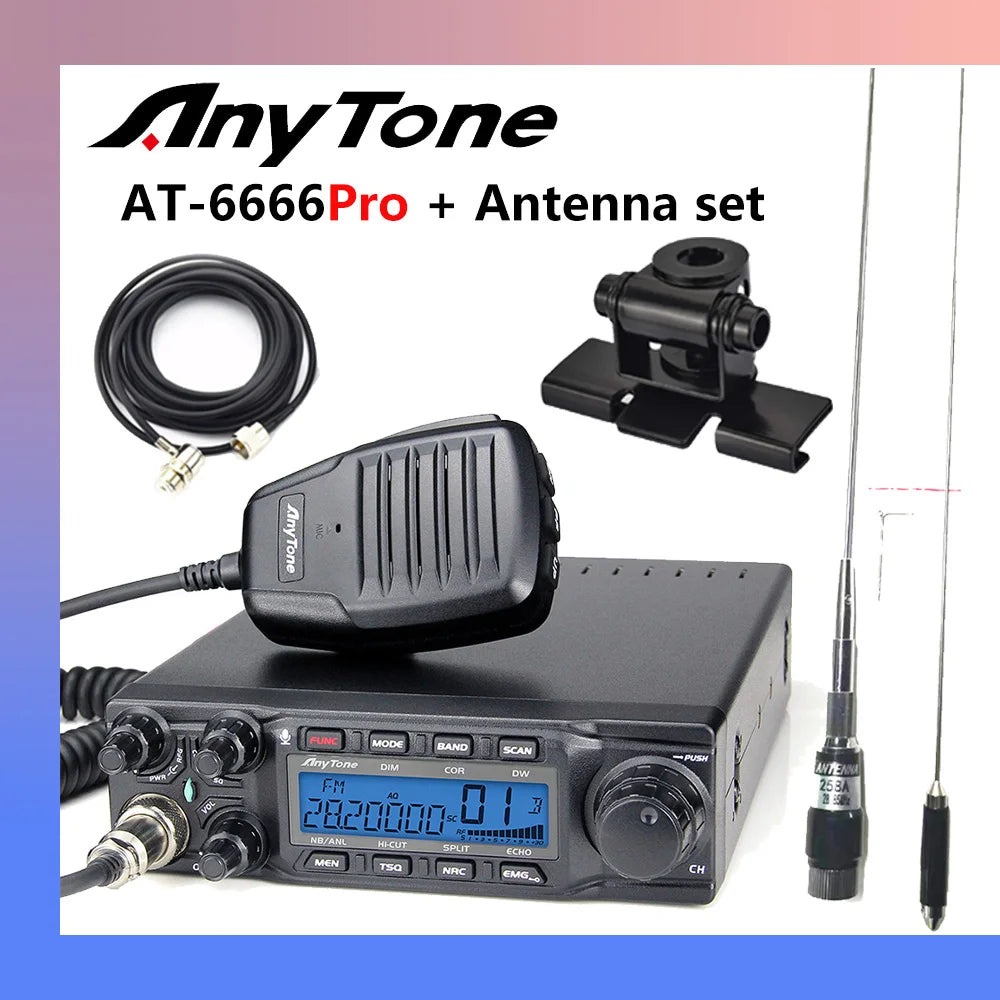

Anytone AT-6666Pro Output AM 80W FM 50W High Power 10 Meter Radio with AM/FM/SSB/CW/PA 10 Meter Band for Truck Drivers
Anytone AT-6666Pro Output AM 80W FM 50W High Power 10 Meter Radio with AM/FM/SSB/CW/PA 10 Meter Band for Truck Drivers
Regular price
$482.99 USD
Regular price
$0.00 USD
Sale price
$482.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
SPECIFICATIONS
Battery Capacity(mAh): -
Battery Included: No
Brand Name: AnyTone
Certification: CE,FCC
Dimensions: 24.51*15.8*4.8
Frequency Range: 28.000-29.700MHz
Is_Display: Yes
Material: Metal
Maximum Range: 10km-50km
Model Number: AT-6666Pro
Output Power(w): >50w
Storage Channel: 40 channel (Programmable) in each band
Walkie Talkie Type: Car
Waterproof / Water-Resistant: No
2024 New Anytone AT-6666Pro Output AM 80W FM50W High Power 10 Meter Radio with AM/FM/SSB/CW/PA 10 Meter Band for Truck Drivers
Note: if you need software, please contact us.

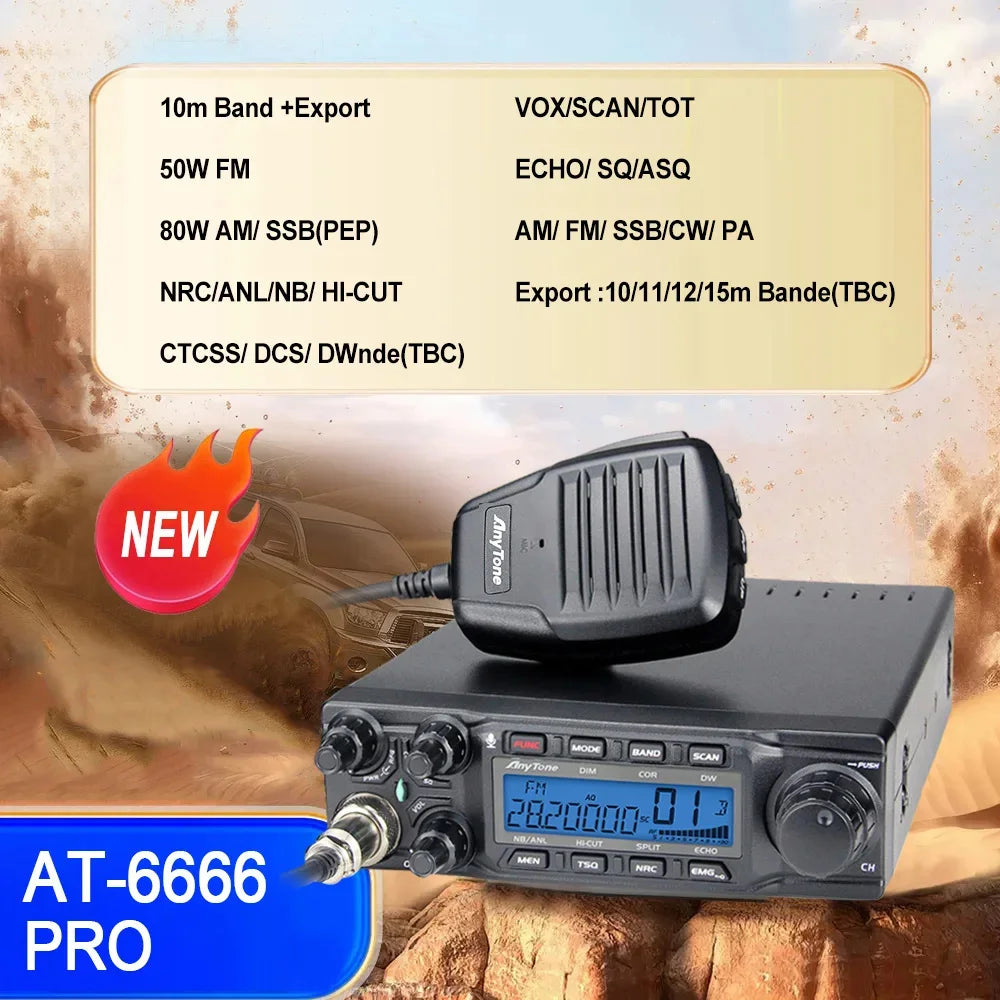

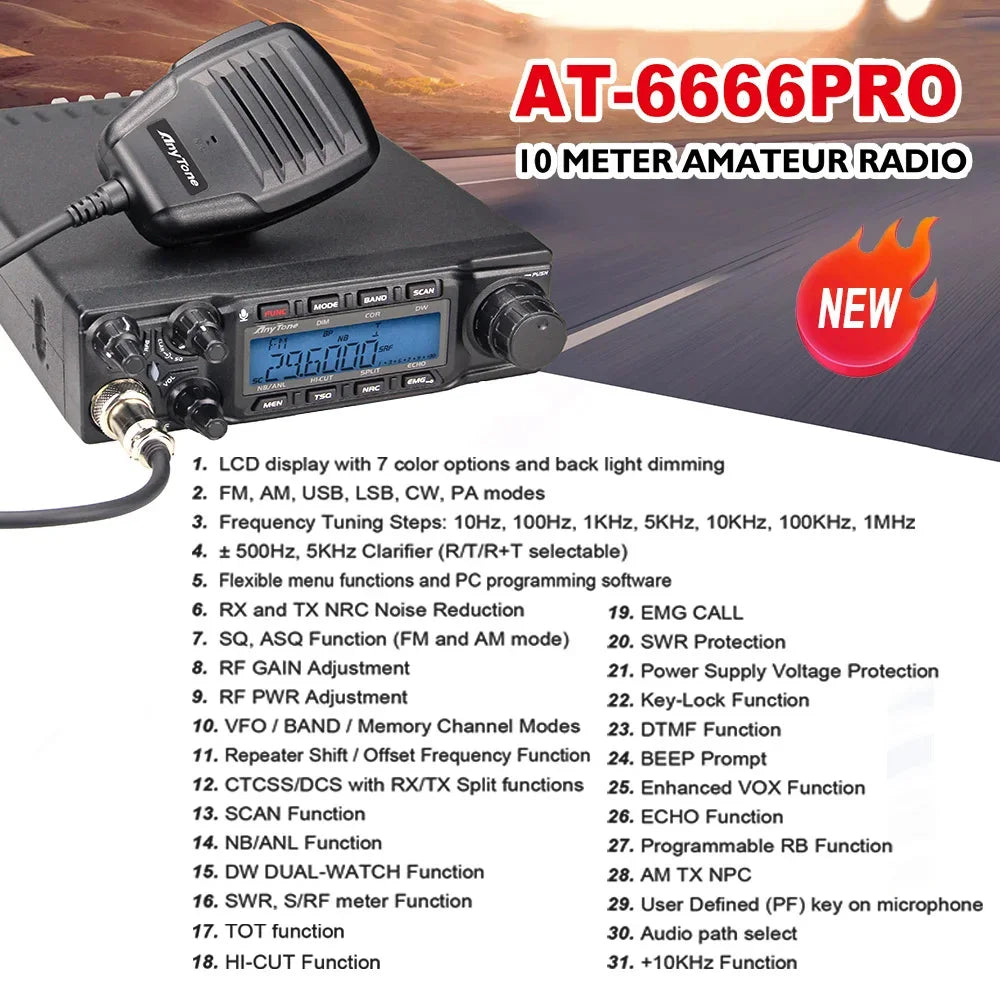

Feature:
1. LCD display with 7 color options and back light dimming
2. FM, AM, USB, LSB, CW, PA modes
3. Frequency Tuning Steps: 10Hz, 100Hz, 1KHz, 5KHz, 10KHz, 100KHz, 1MHz
4. ± 500Hz, 5KHz Clarifier (R/T/R+T selectable)
5. Flexible menu functions and PC programming software
6. RX and TX NRC Noise Reduction
7. SQ, ASQ Function (FM and AM mode)
8. RF GAIN Adjustment
9. RF PWR Adjustment
10. VFO / BAND / Memory Channel Modes
11. Repeater Shift / Offset Frequency Function
12. CTCSS/DCS with RX/TX Split functions
13. SCAN Function
14. NB/ANL Function
15. DW DUAL-WATCH Function
16. SWR, S/RF meter Function
17. TOT function
18. HI-CUT Function
19. EMG CALL
20. SWR Protection
21. Power Supply Voltage Protection
22. Key-Lock Function
23. DTMF Function
24. BEEP Prompt
25. Enhanced VOX Function (VOX.SPK can support digital mode operation)
26. ECHO Function
27. Programmable RB Function
28. AM TX NPC
29. User Defined (PF) key on microphone
30. Audio path select
31. +10KHz Function
Product Description
GENERAL |
||
Frequency Range |
28.000-29.700MHz(Programmable) |
|
Frequency Band |
A/B/C/D/E/F/G/H/I |
|
Channel |
40channels(programmable) in each band |
|
Frequency Control |
Phase-Locked-Loop Synthesizer |
|
Frequency Step |
10Hz,100Hz,1KHz,5KHz,10KHz,100KHz,1MHz |
|
Frequency Tolerance |
± 5.0 ppm |
|
Temperature Range |
-20℃ to +50℃ |
|
Microphone |
with push-to-talk /UP/DN and coiled cord |
|
Input Voltage |
DC 13.8V normal |
|

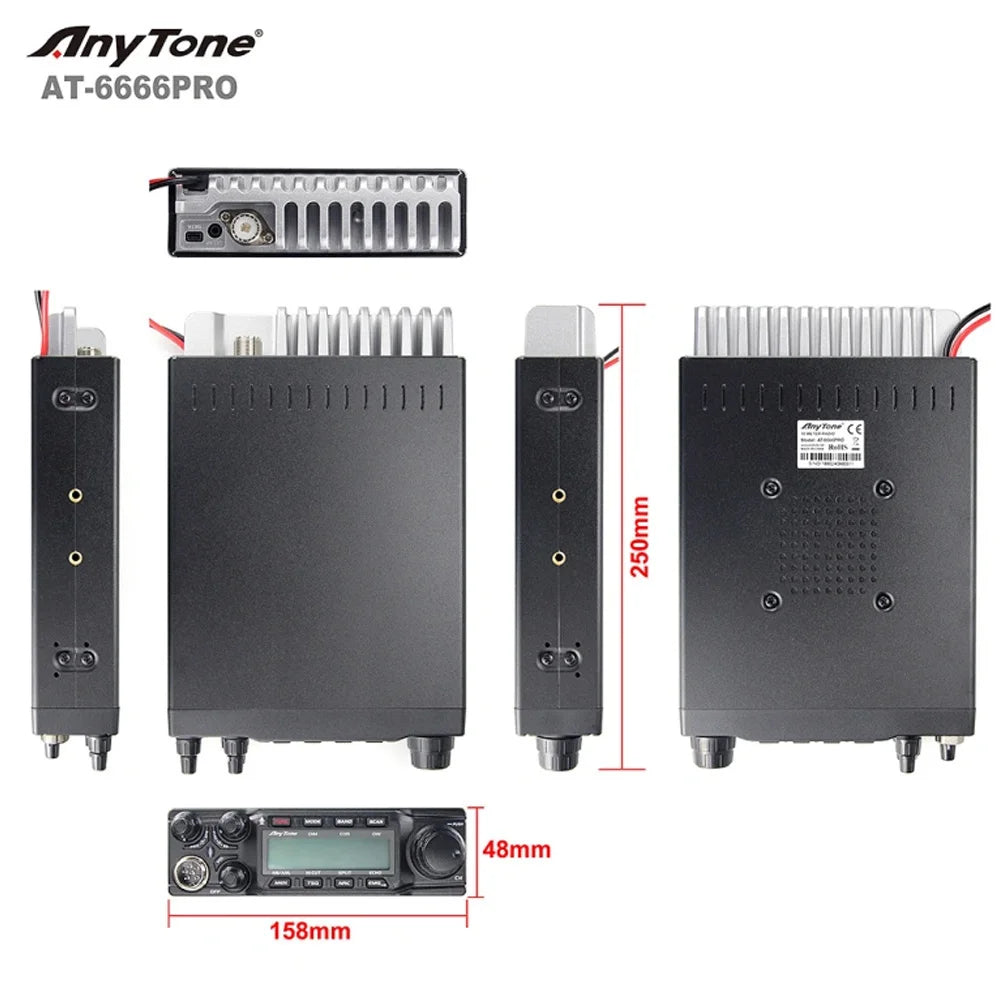

Dimensions |
252(L) x 158(W) x 48(H) mm |
|
Weight |
1.27kg |
|
Antenna Connector |
UHF, SO239 |
|
TRANSMITTER |
||

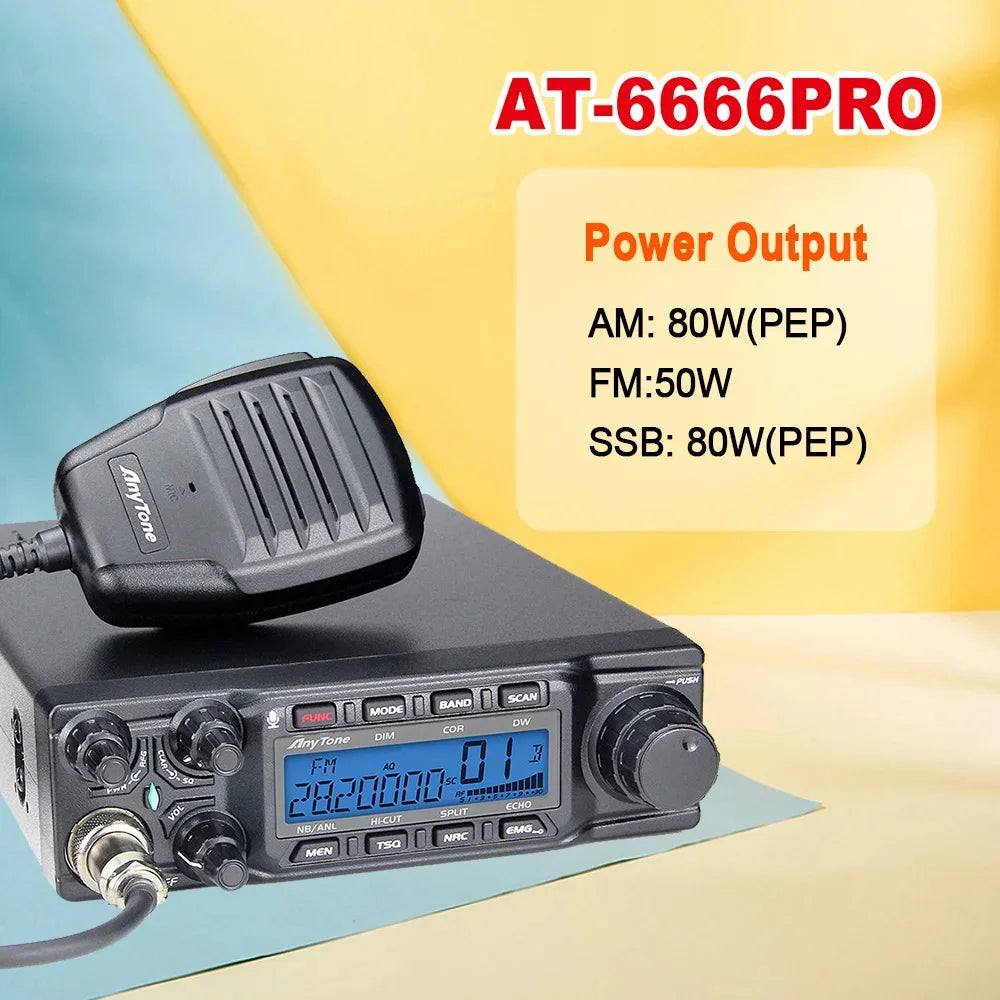

Power Output |
AM: 80W(PEP) FM:50W SSB: 80W(PEP) |
|
Drain |
15A(with modulation) |
|
Modulation |
FM/AM/USB/LSB/CW |
|
Inter-modulation Distortion |
SSB: 3rd order, more than -25dB; 5th order, more than -35dB |
|
SSB Carrier Suppression |
55dB |
|
Unwanted Sideband |
50dB |
|
Frequency Response |
AM/FM: 300 to 3000Hz SSB: 450 to 2500Hz |
|
Output Impedance |
50ohms, unbalanced |
|
RECEIVER |
||
Sensitivity |
SSB: 0.25μV for 10dB(S+N)/N AM:1.0μV for 10dB(S+N)/N FM: 1.0μV for 20 dB (S+N)/N (All at greater than 1/2 watt of audio output) |
|
Adjacent-Channel Selectivity |
AM/FM: 60dB SSB: 70dB |
|
Image Rejection |
More than 65dB |
|
IF Frequency |
AM/FM: 10.695 MHz 1st IF, 455 KHz 2nd IF SSB: 10.695 MHz |
|
RF Gain Control |
45 dB adjustable for optimum signal reception |
|
Automatic Gain Control(AGC) |
Less than 10 dB change in audio output for inputs from 10 to 100,000 microvolt |
|
Squelch |
Adjustable; threshold less than 1.0μV. Automatic Squelch Control(only AM/FM)1.0μV |
|
Audio Output Powe |
3 watts into 8 ohms |
|
Frequency Response |
AM/FM: 300 to 3000Hz SSB: 450 to 2500Hz |
|
Built-in Speaker |
8 ohms, round |
|
External Speaker(Not Supplied) |
8 ohms; disables internal speaker when connected |
|
