AUTOOL CT160 Automotive Injector Nozzle Cleaning Machine Fuel Injector Tester Heated Cleaning Machine Injectors Machine Clean
AUTOOL CT160 Automotive Injector Nozzle Cleaning Machine Fuel Injector Tester Heated Cleaning Machine Injectors Machine Clean
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: AUTOOL
Color: 黄色,白色,蓝色,自定义!

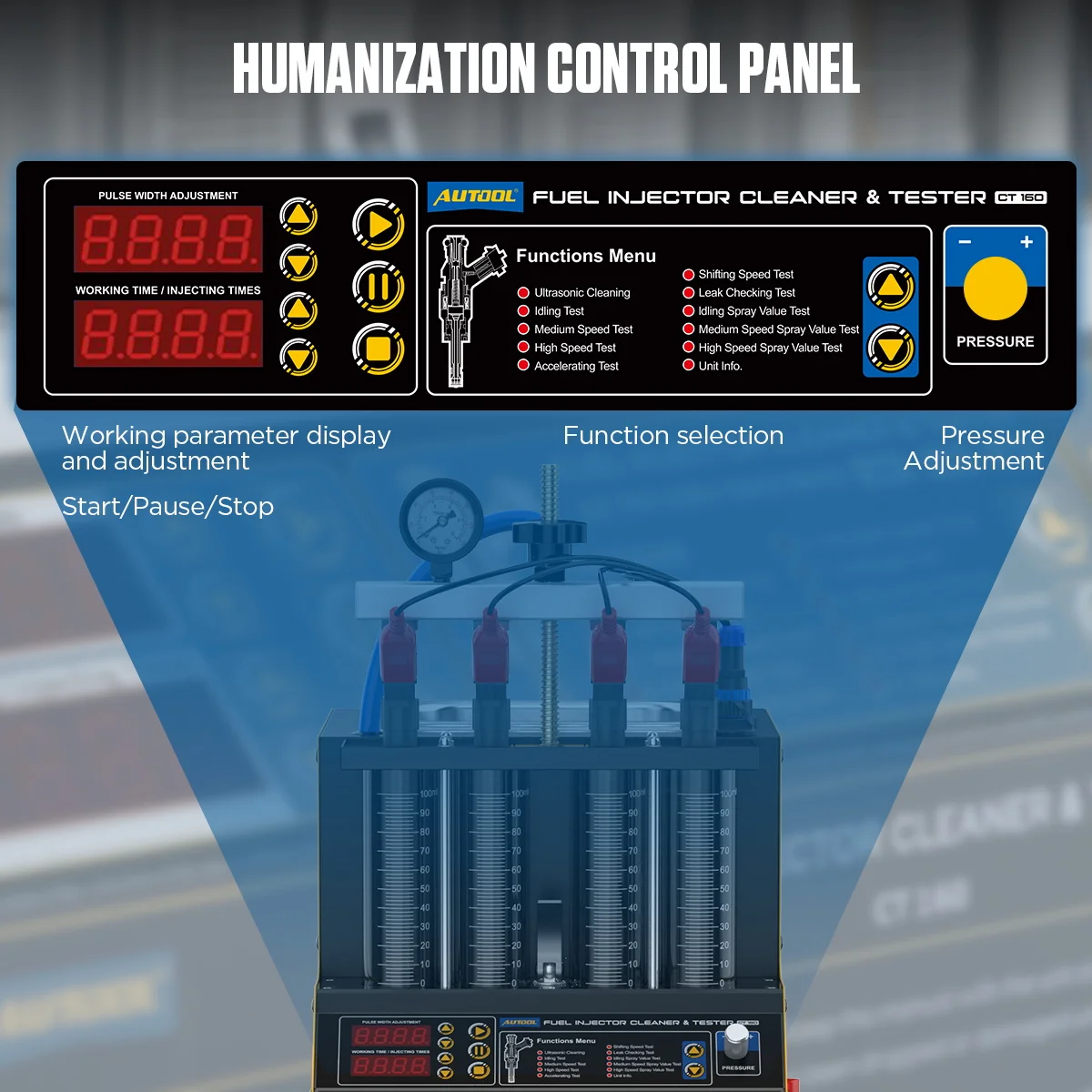

Digital Display: With the help of microcomputer control and digital display
Feature: Ultrasonic Cleaning
Microcomputer Control: offers stable pressure control and large adjustable range
Name: Automotive Motorcycle 4 Cylinder Ultrasonic Wave Injector Cleaner Petrol Injection Tester Cleaning Kit Tester
Origin: Mainland China
Wide Application: can clean and inspect the fuel injectors of various
Product Description

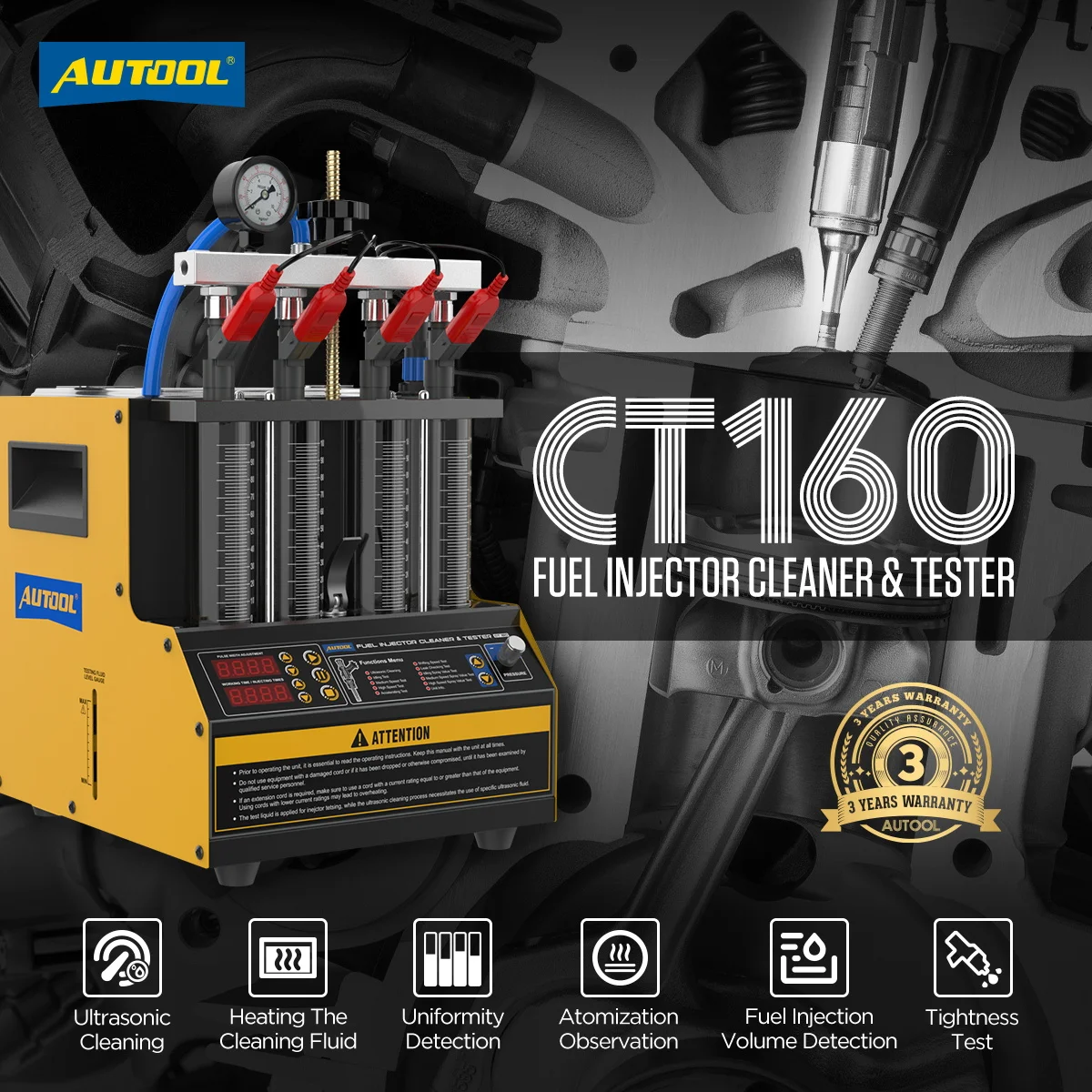

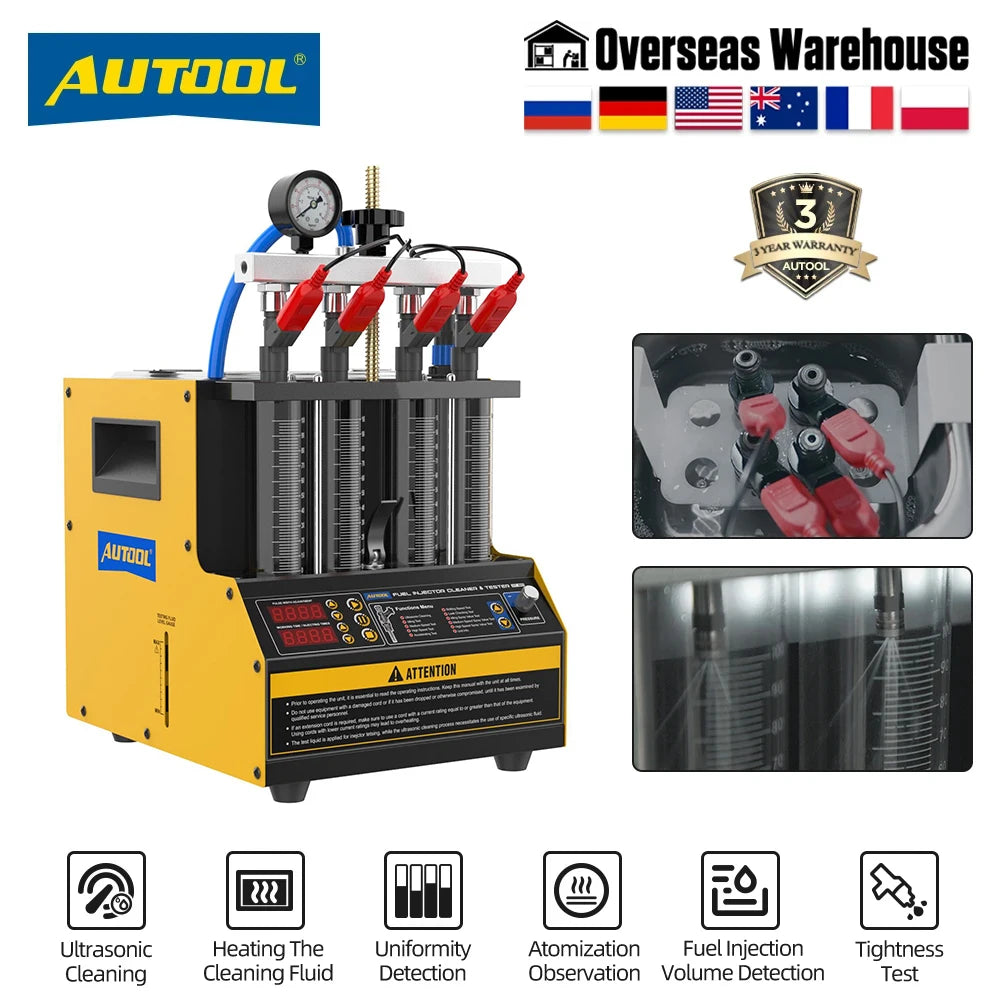

AUTOOL CT160 is a fuel injector cleaning machine newly developed by AUTOOL TECH. It combines ultrasonic cleaning technology and microcomputer oil pressure closed-loop control cleaning and detection technology. This product simulates various engine working conditions and cleans and inspects various automobiles and motorcycle fuel injectors. Its unique design saves weight and volume, while further optimizing the product's functionality. With a larger cleaning tank and cleaning fluid heating effect, which can achieve better cleaning results.
Working Environment:
Power supply: AC220V±10%
Frequency: 50HZ±0.5
Relative humidity: <85%
Environment temperature: 0℃~+40℃
External magnetic field strength: <400A/m
No open flames are allowed around.

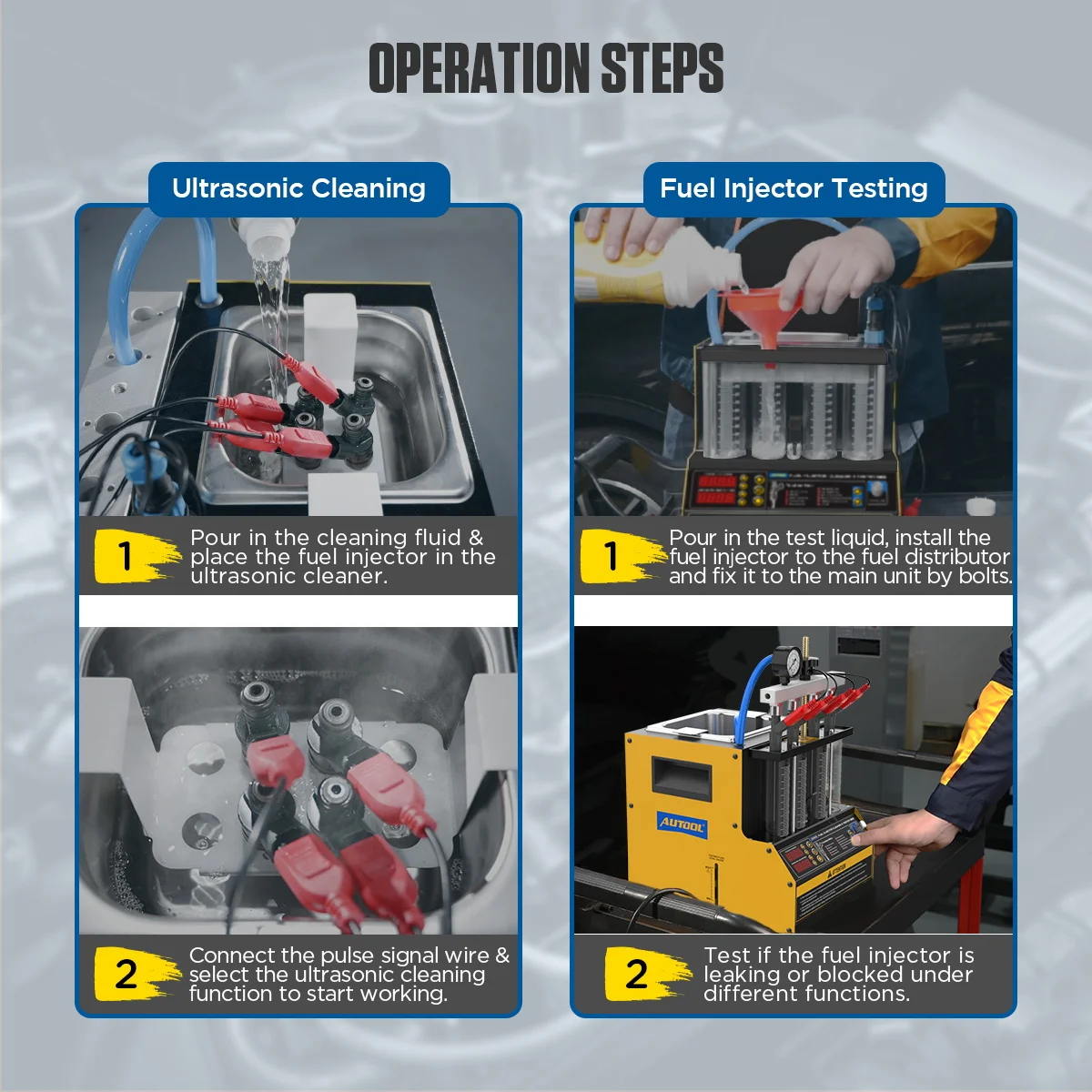

How to use ?
●Pour in the injector detergent and place the injectors in the ultrasonic cleaner tank.
●Connect the pulse signal wire and select the ultrasonic cleaning function to start working.
●Pour in the test liquid, install the fuel injector to the fuel distributor and fix it to the main unit by bolts.
●Test if the injector is leaking or blocked under different functions.

Features

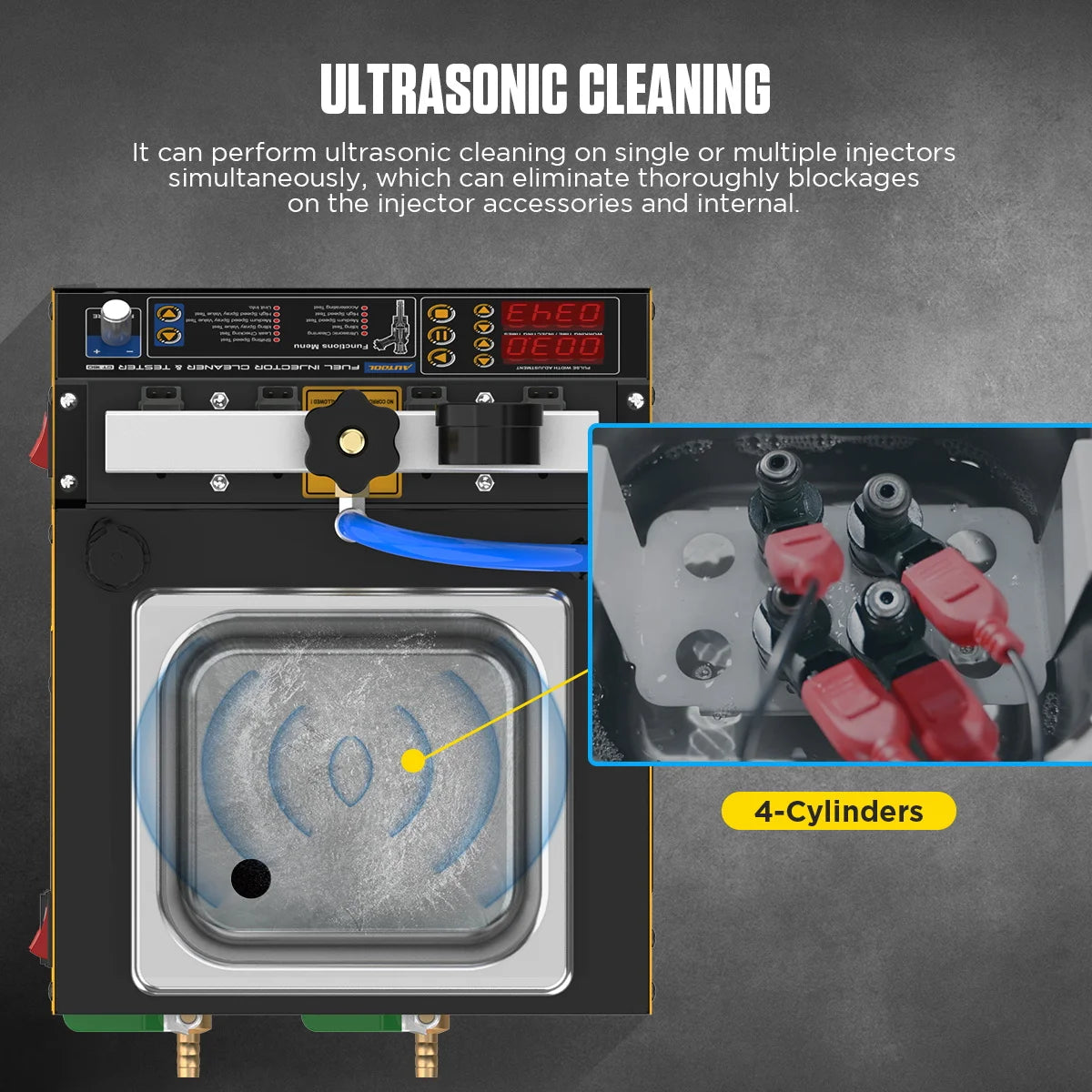

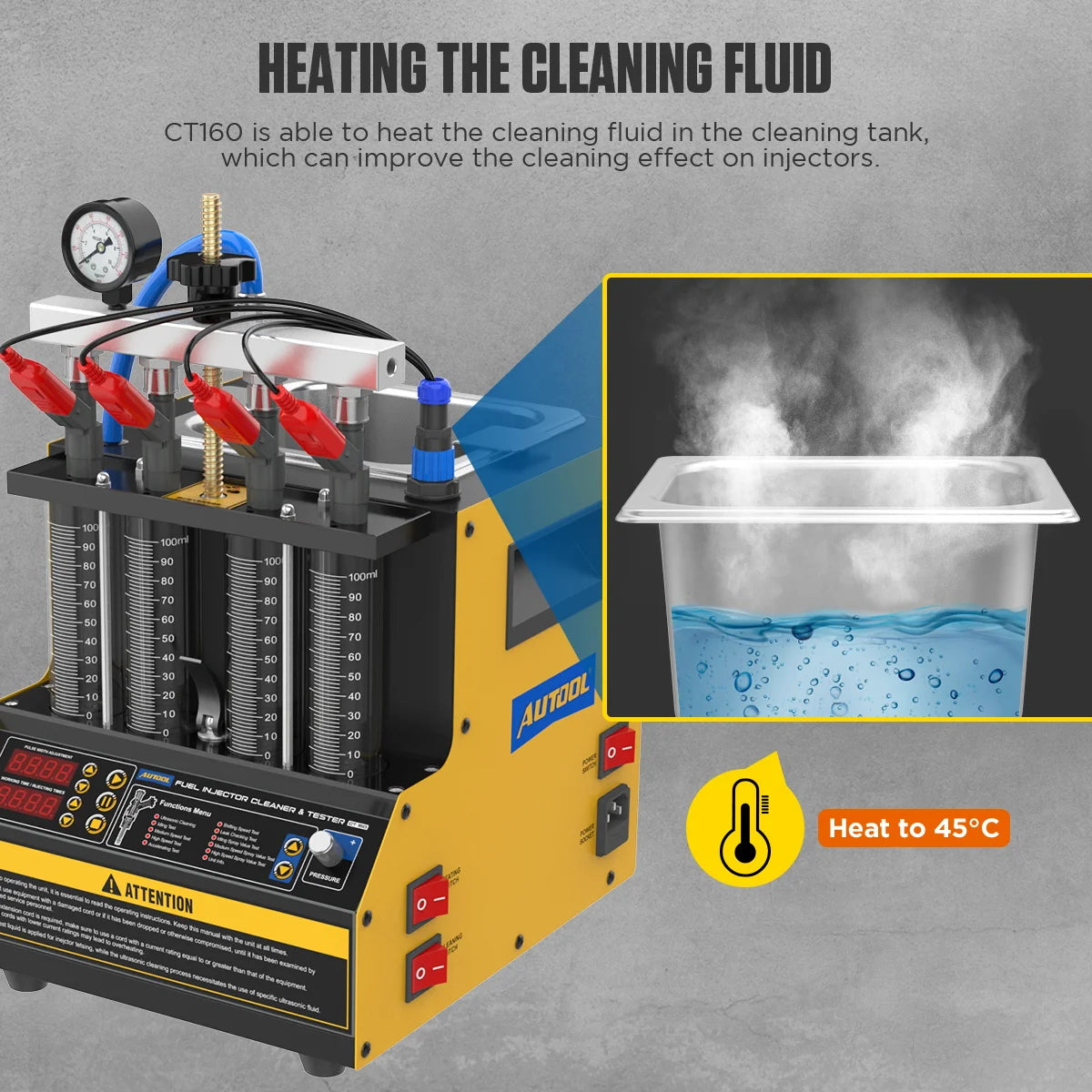

● [Ultrasonic Cleaning with Heating the Fluid]: Different from others, AUTOOL CT160 is able to heat the cleaning fluid, which can improve a lot on cleaning effect. With that advantage, ultrasonic cleaning can be more powerful to remove the attachments and internal blockages on the injectors.

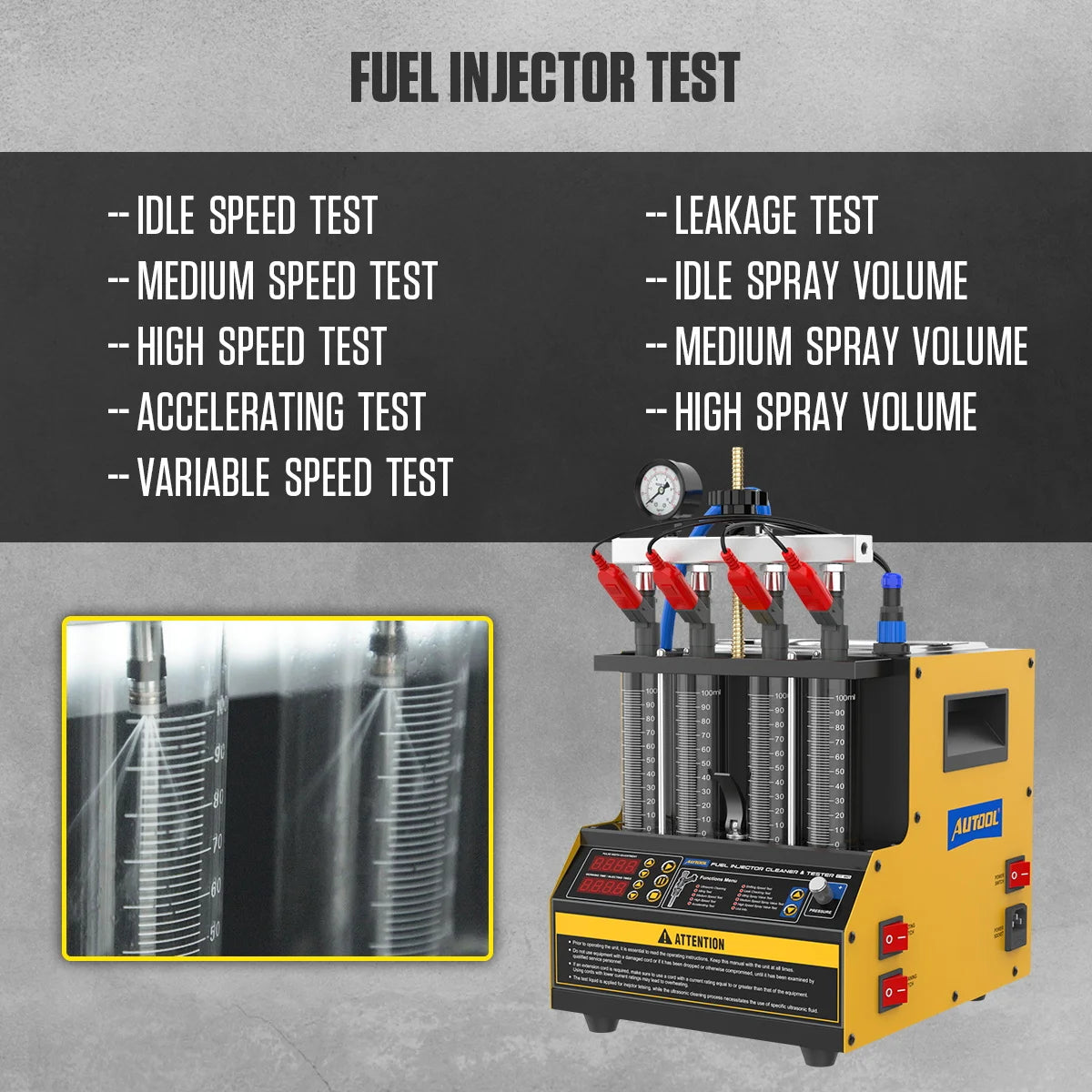

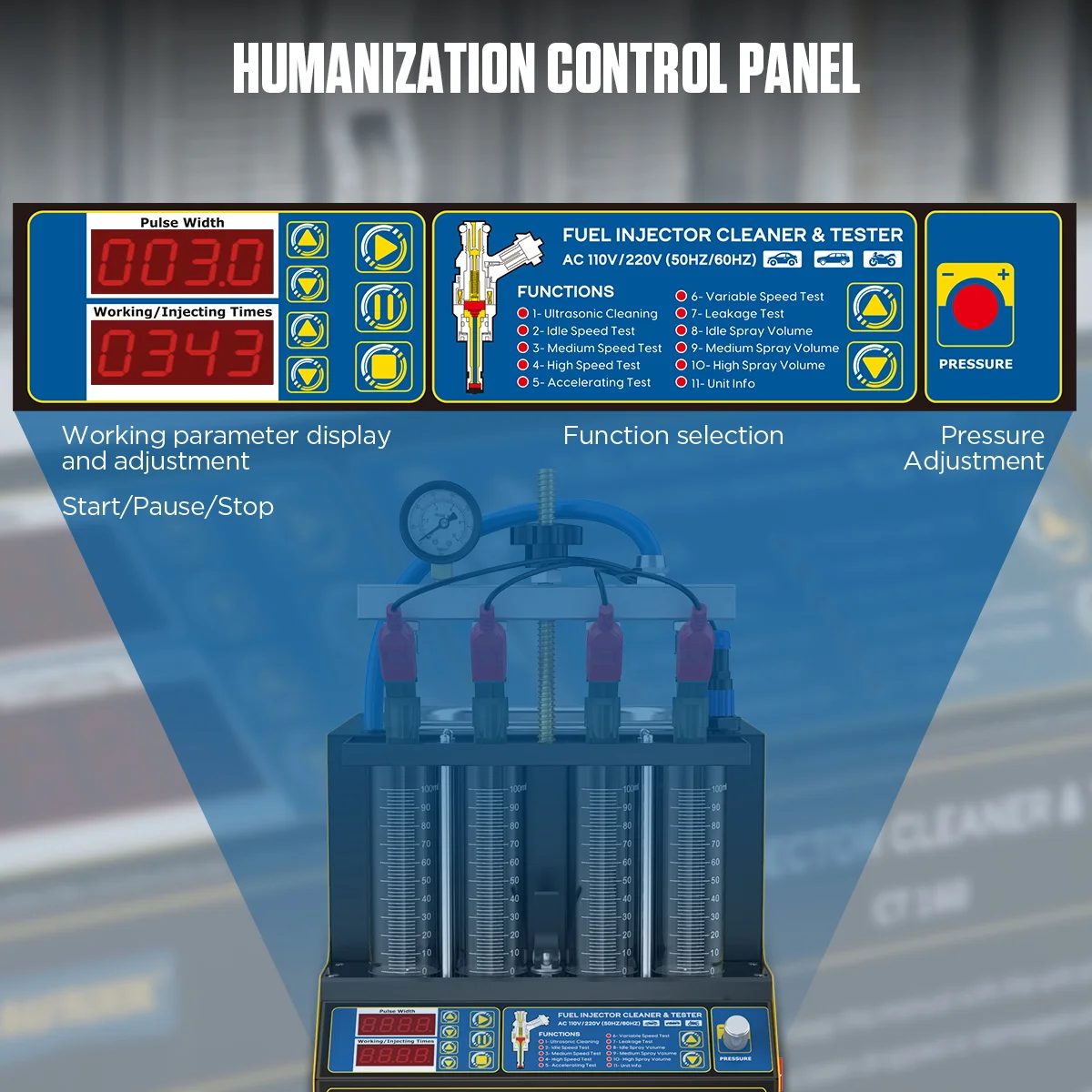

● [9 Kinds of Fuel Injector Tests]: AUTOOL CT160 Fuel injector Cleaner is capable of various testing, including 2-idle speed test, 3-medium speed test, 4-high speed test, 5-accelerating test, 6-variable speed test, 7-leakage test, 8-idle spray test, 9-medium spray test, 10-high spray volume test.
● [ Compact/Lightweight/Portable]: AUTOOL CT160 Fuel injector Cleaner only weighs 8KG, allowing to carry around. With 1300ML large capacity ultra cleaning tank, all injectors can be cleaned at one time, which save much time and more efficient.

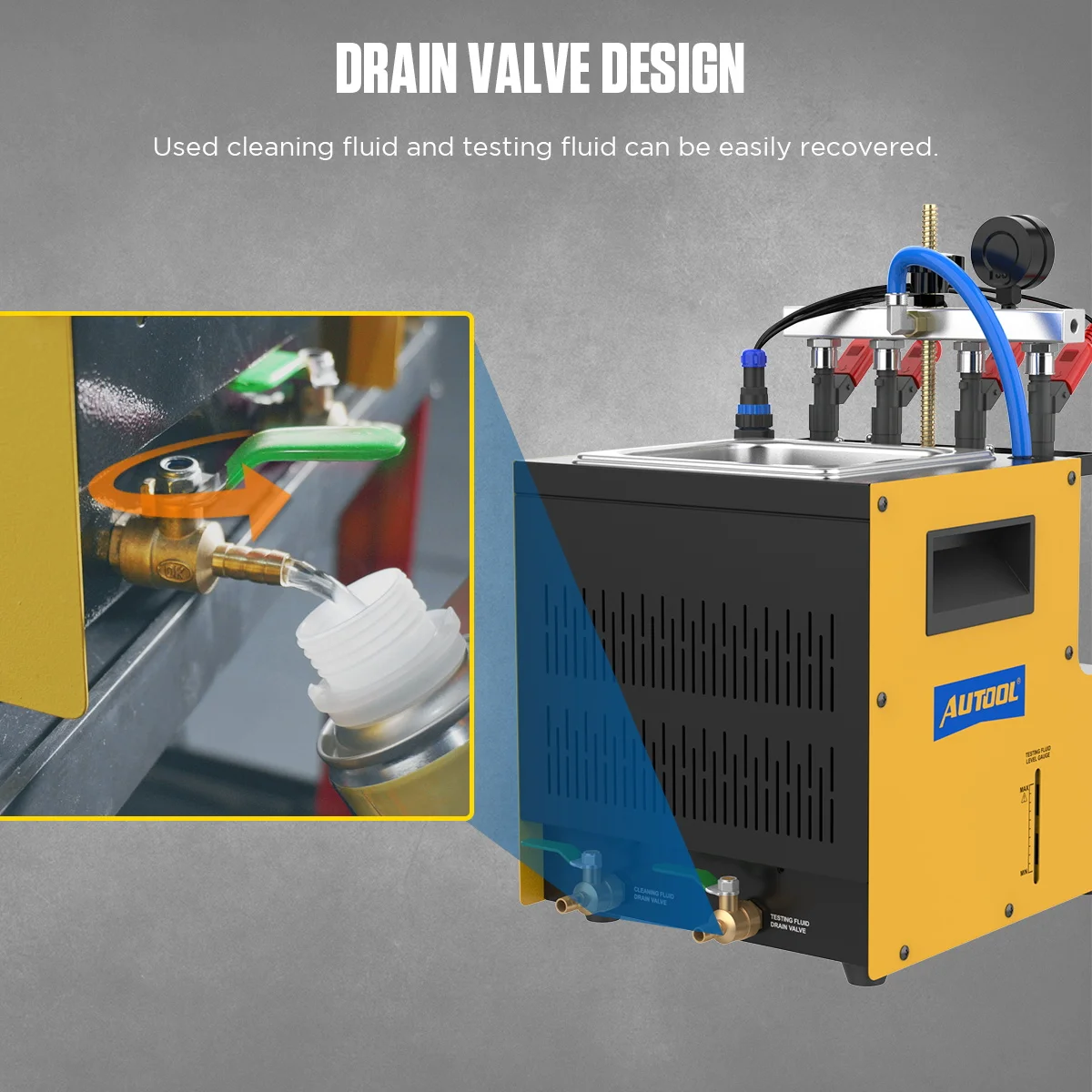

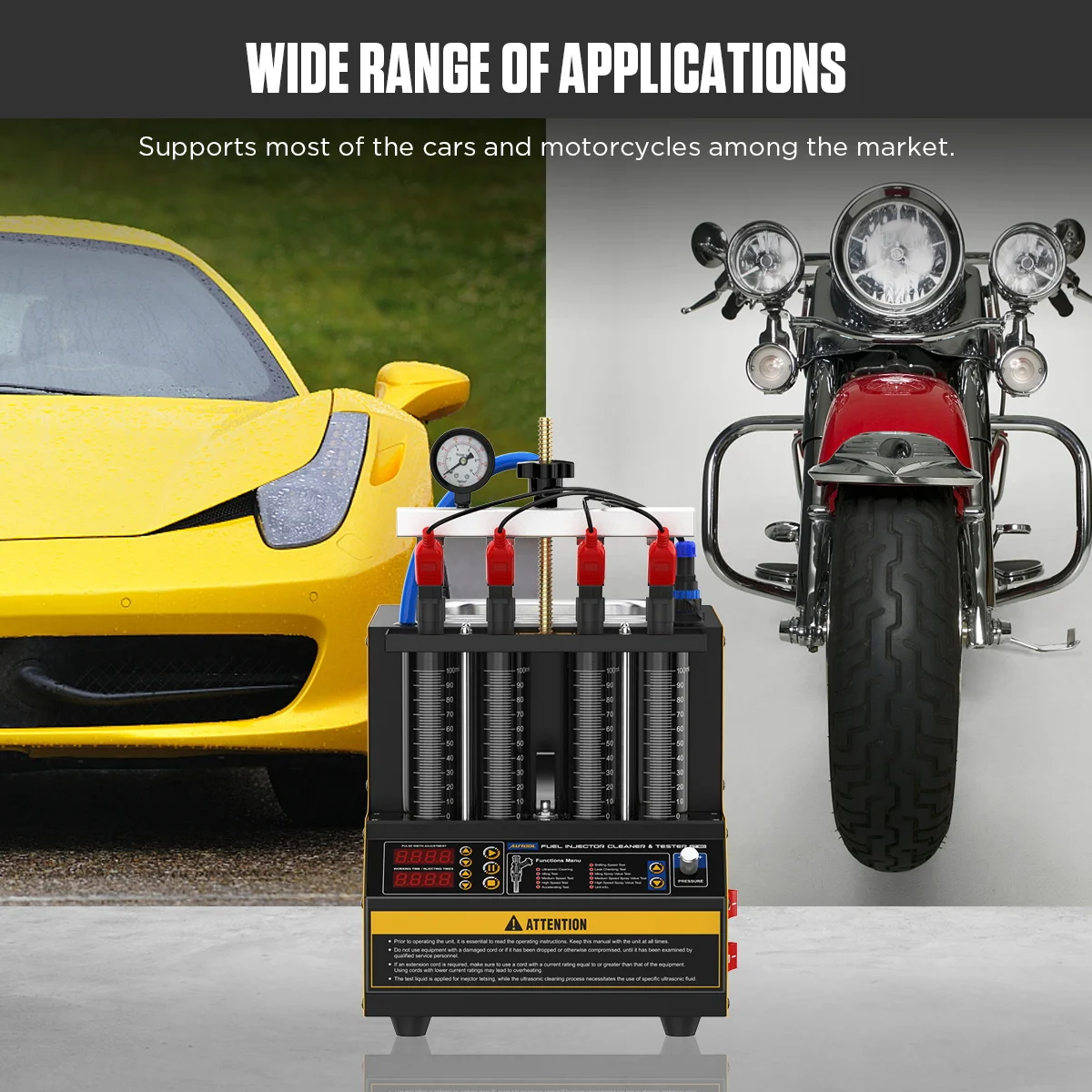

● [Environmental Friendly& Widely Use]: The used cleaning fluid and testing fluid can be easily recovered. Support most of the automobile and motorcycles in the market. Applicable voltage is compatible with 110V or 220V.
● [Three Years Warranty, Lifetime Maintenance]: For damage caused by non-human factors, AUTOOL promises to resend parts for free within 3 years. For any needs, you are warmly welcomed to contact us and we will get back to you ASAP within 24 hours.

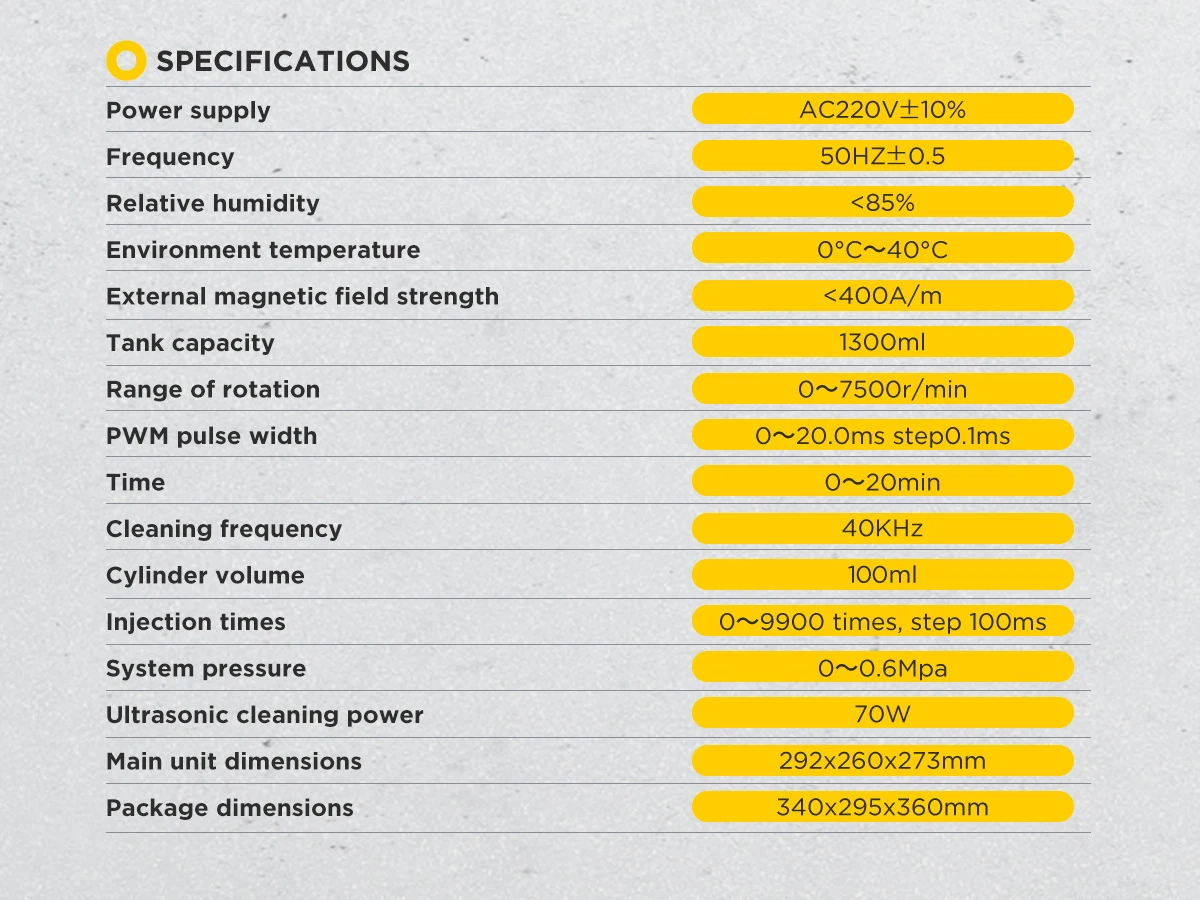

Technical parameters:
Tank capacity:1300 ml
Range of rotation:0-7500r/min
PWM pulse width:0~20.0ms step 0.1ms
Time:0~20min
Cleaning frequency:40 kHz
Cylinder volume:180 ml
Injection times:0~9900 times, step 100ms
System pressure:0~0.6Mpa
Ultrasonic cleaning power:70W
Package dimensions:340*295*360mm

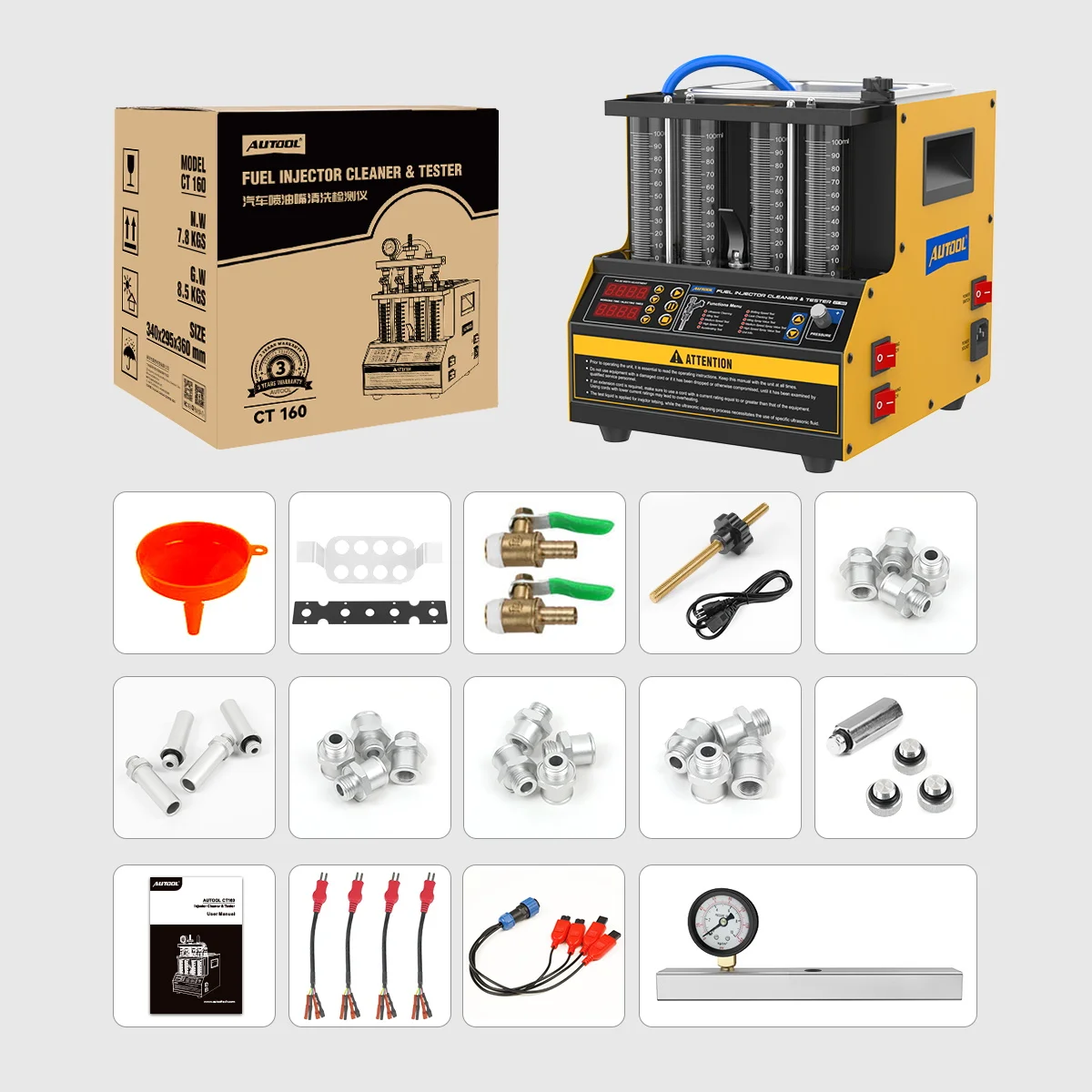

Package includes:
1pc* AUTOOL CT160 Fuel injector diagnostic and cleaning Cleaner Machine main unit
1pc*Refilling funnel
1pc* Ultrasonic leaning stand
1pc*Testing pad
2pc* Oil drain valve
1pc* Lock pole
1pc*Lock nut
4pc* Extended plug
4pc* Motorcycle top oil inlet connectorⅠφ10mm
4pc* Motorcycle top oil inlet connectorⅡφ11mm
4pc* Motorcycle top oil inlet connectorⅢφ10.6mm
4pc* Car top oil inlet connectorⅢφ10.6mm&13.4mm
3pc* Plug
1pc* Signal wire
4pc* Adapter cable
1pc* Oil rail
1pc* User manual
