SPECIFICATIONS

Brand Name: BSIDE

Constant current mode: Yes.

Constant voltage mode: Yes.

Display: TFT Full-view color screen display

Hign-concerned Chemical: None

I83010: 30V-10A-300W

I8305: 30V-5A-150W

I84020: 40V-20A-300

Over-temperature protection: Yes.

Overcurrent protection: Yes.

Overload protection: Yes.

Overvoltage protection: Yes.

Programmable: Yes.

USB Communication Port: Yes.

Voltage: 110V/220V

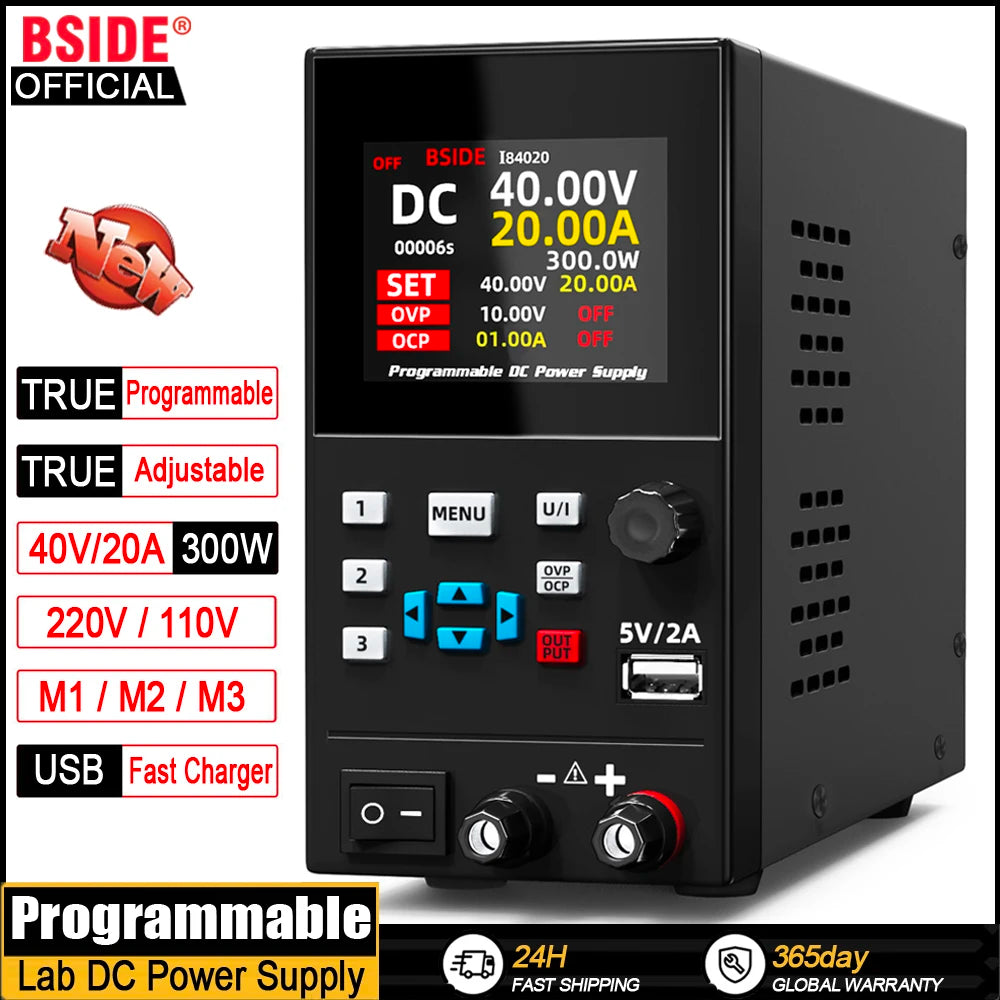

BSIDE Programmable DC Regulated Power Supply Lab 30V 5A 150W / 30V 10A 300W / 40V 20A 300W Adjustable Digital Bench power supply Stabilizer 110V/220V

Features:

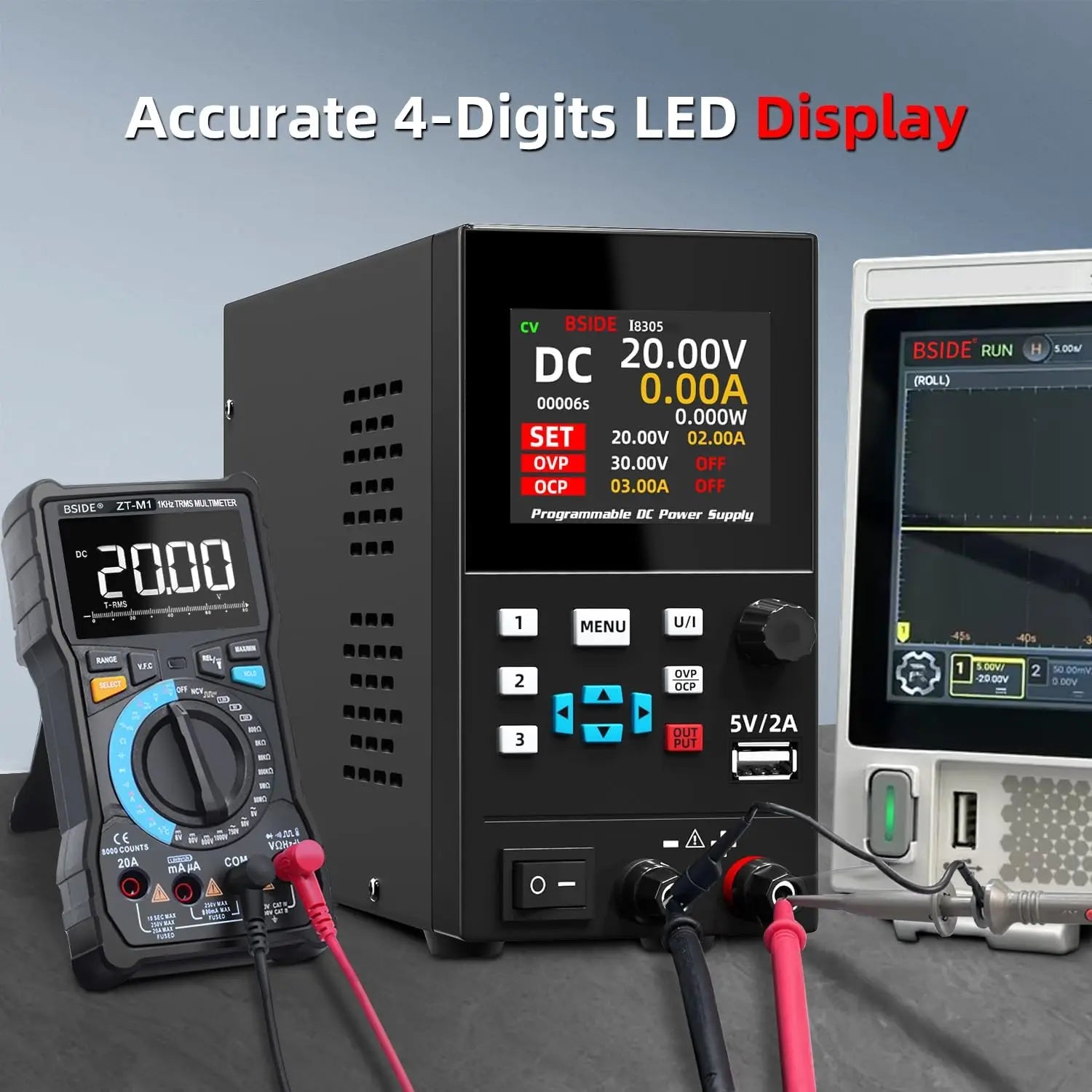

1. TFT320*240 color screen full viewing angle configuration 360 degree full viewing angle, high-precision four-digit display, six lines display the number of lines.

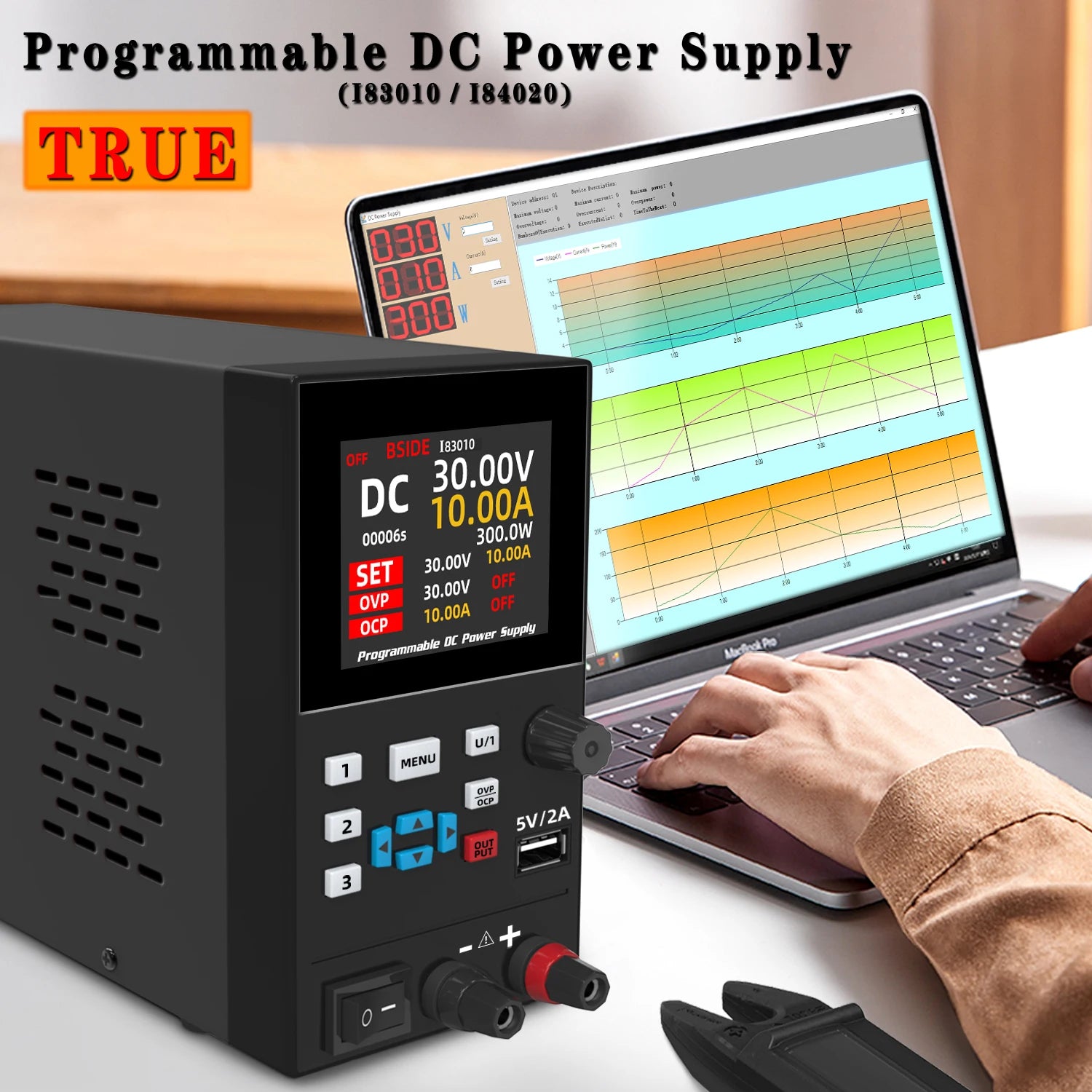

2. It has a USB communication interface, which can be connected to a computer for programming.

3. Small size and light weight.

4. Automatic switching of constant pressure and constant current.

5. The output voltage and current are adjustable: the output voltage and output current can be adjusted between 0 and the rated value.

6. Voltage and current, with the characteristics of stable voltage, current limiting, simple operation, etc.

7. It has over-voltage protection (OVP), over-current protection (OCP), over-temperature protection and overload protection.

8. The intelligent electronically controlled fan has low noise, realizes low-noise temperature control, and has a longer fan life.

9. Both AC 110V and 220V can work, so you can choose with confidence.

Specifications:

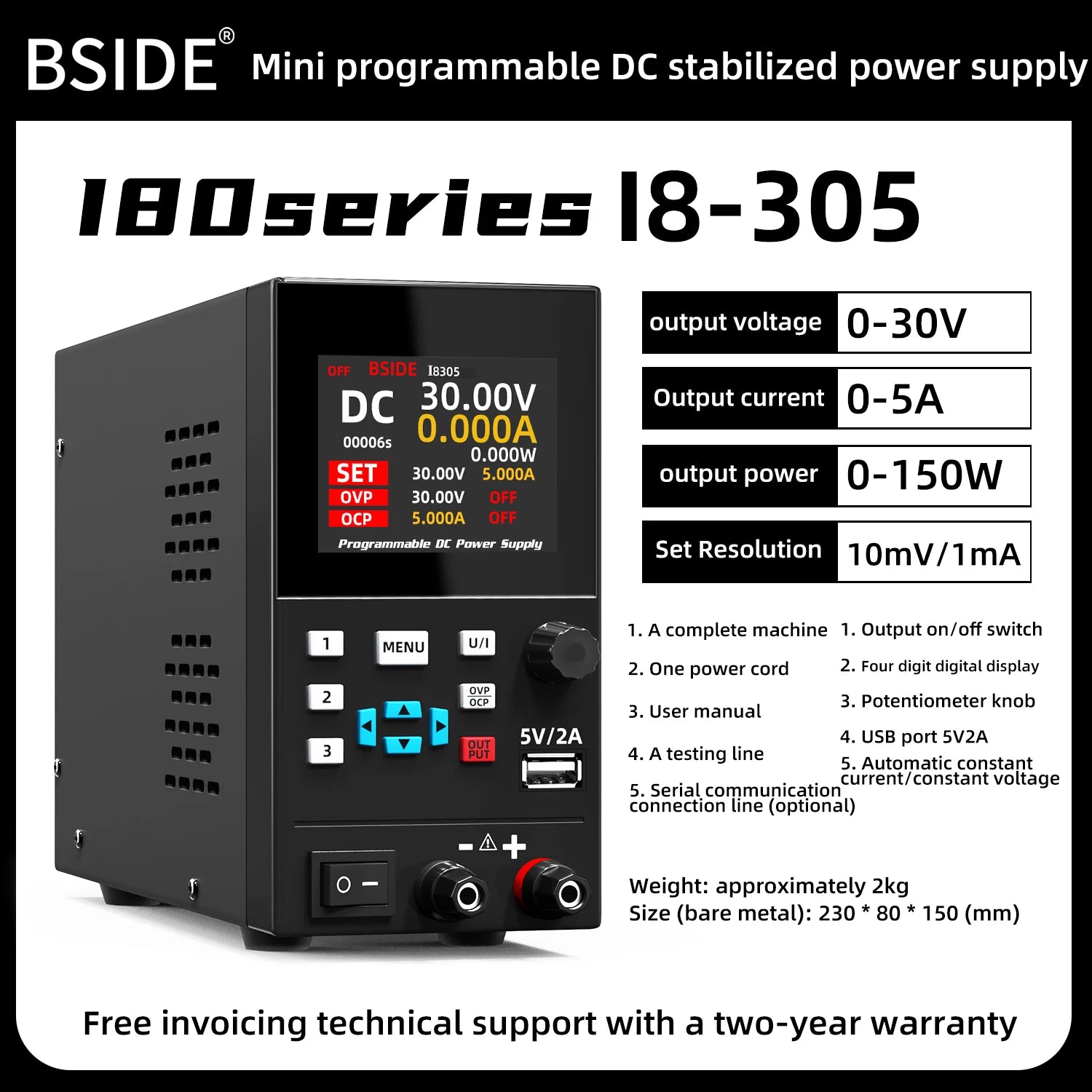

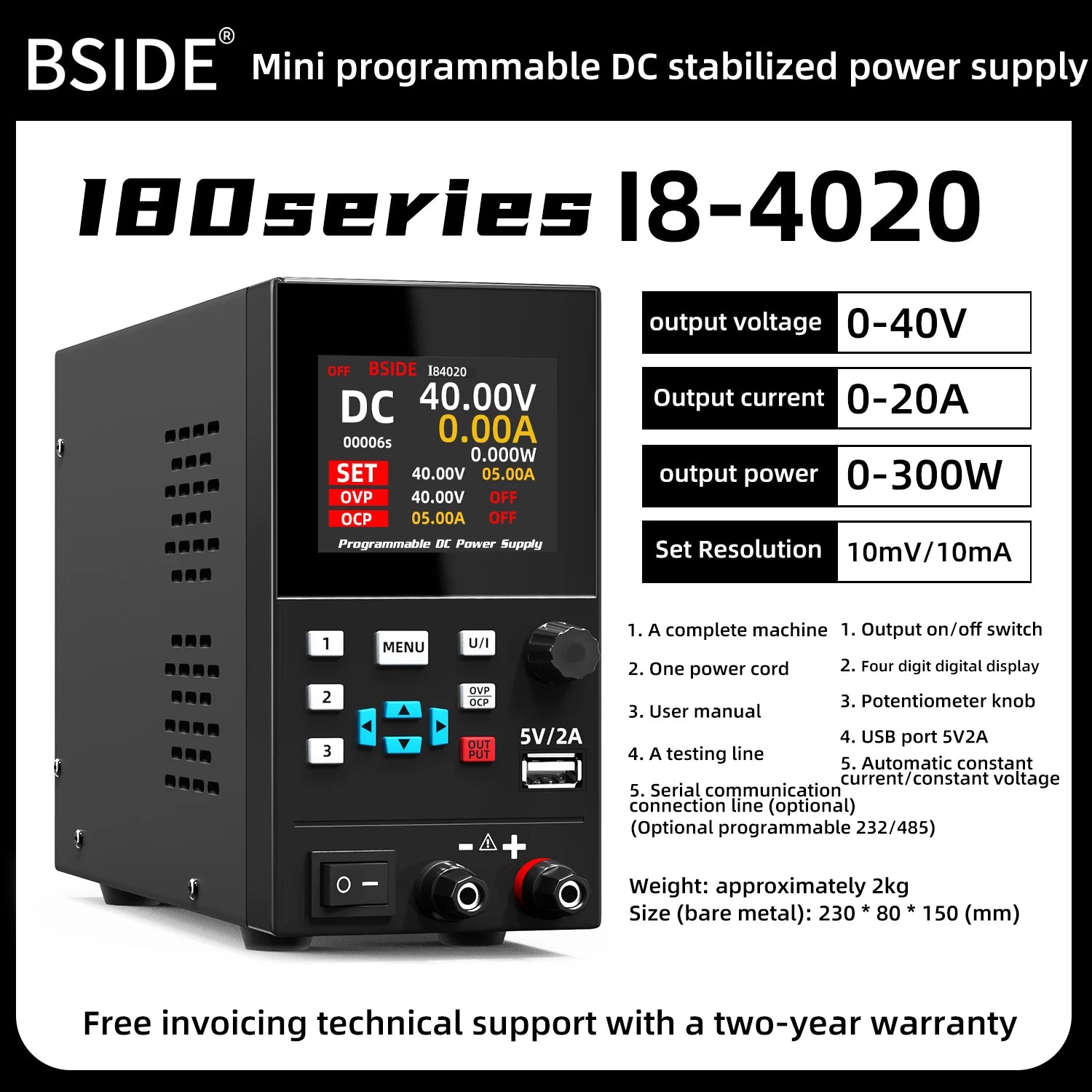

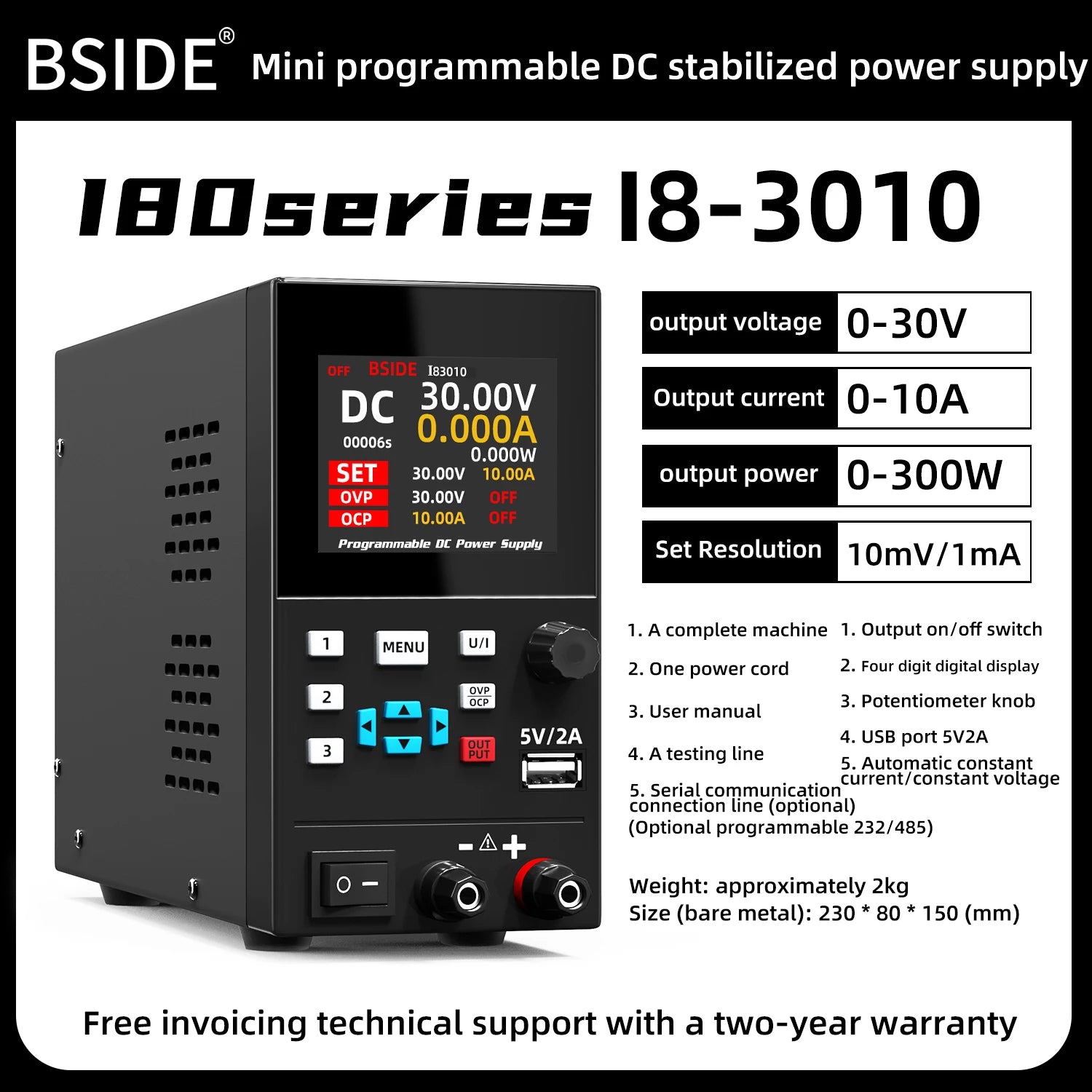

Model: I80305 / I803010 / I804020

Voltage:

Set resolution: 10mV

Setting accuracy: ≤0.1%+5 digits

Readback resolution: 10mV

Readback accuracy: ≤0.1%+5 digits

Ripple: ≤10mVrms (I8305), ≤10mVrms (I83010), ≤12mVrms (I84020)

Current:

Set resolution: 1mA

Setting accuracy: ≤0.1%+10digits

Readback resolution: 1mA

Readback accuracy: ≤0.1%+10digits

Ripple: ≤10mArms(I8305), ≤10mArms(I83010), ≤18mArms(I84020)

Load regulation: ≤0.1%Vmax+5mV(I8305,I83010) ≤0.2%Vmax+5mV(I84020)

OVP： 0-33V（I8305）， 0-33V（I83010）， 0-41V（I84020）

Max Voltage: 32V (I8305), 32V (I83010), 40.5V (I84020)

OCP: 0-6.5A（I8305）,0-10.5A（I83010）, 0-20.5A（I84020）

Max Current : 6.1A(I8305), 10.1A(I83010), 20.1A(I84020)

Heat dissipation: Air cooling

Size: 230*80*150mm

Weight: about 2KG

Product packaging

1x DC power supply

1x Power Cord (EU, US, UK, AU)

1x test lead

1x User Manual

1x USB communication port (i8 305 needs to be optional)

1x 12 months warranty card
