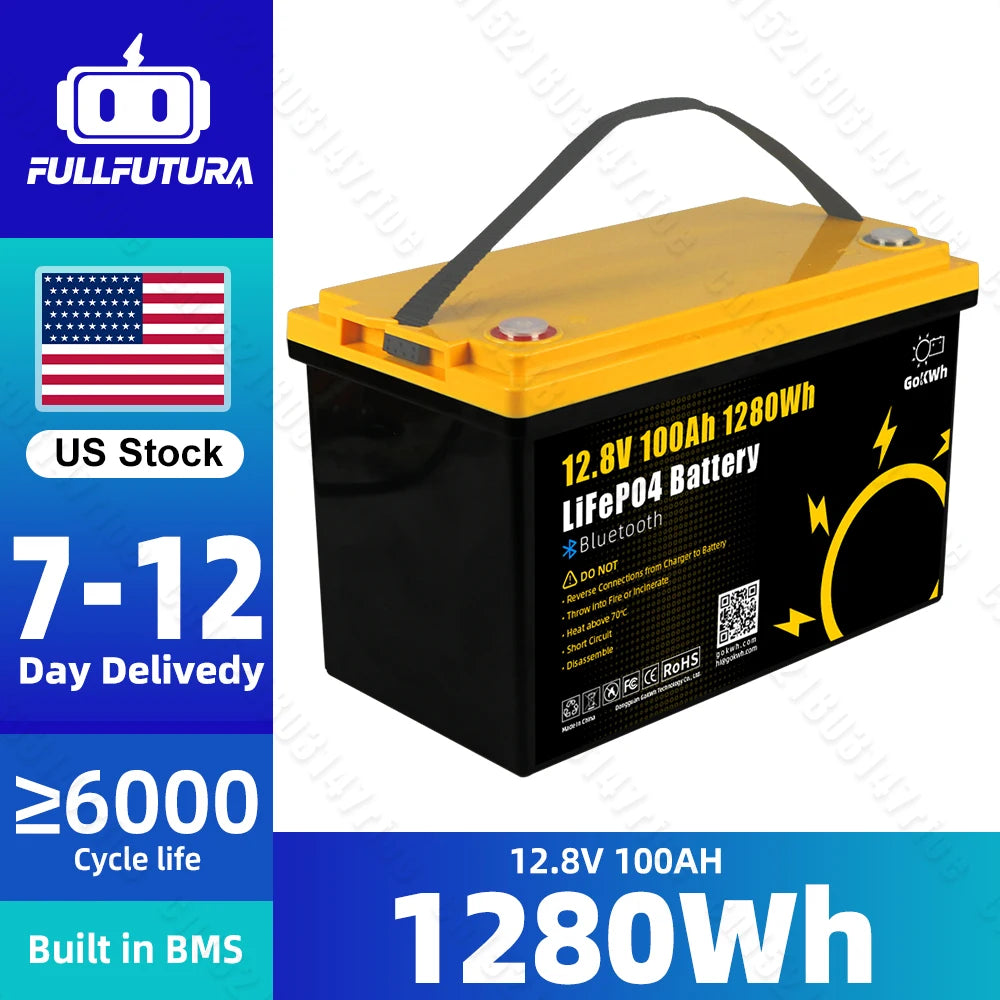

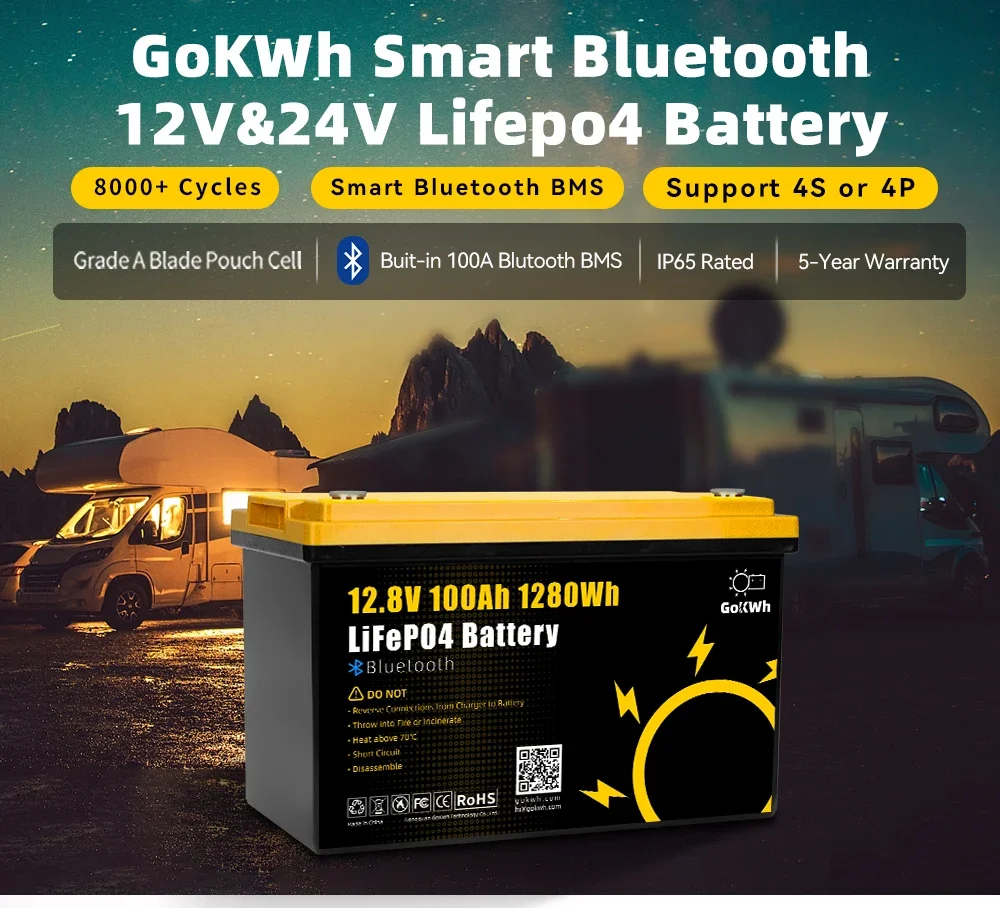

12.8V 100AH Lifepo4 Battery with Bluetooth

*Grade A and Brand New
*Bulid in 100A Bluethhth BMS
*IP65 Rated
*5-Year Warranty

[12V 100AH Specifications]

Nominal Voltage：12.8V
Nominal Capacity：100AH
Nominal Energy：1280Wh
Shell Material:Plastic
Internal Resistance: ≤30 mΩ
Cycle Life: More than 6000 times
Service Life: 10 years
Protection: IP65, Built-in BMS
Charge Method: CC/CV
Built-in BMS: 4S 100A
Operating Voltage Range：10.0V-14.6V
Over Charge Protection Voltage：14.6V + 0.05V
Over Discharge Protection Voltage：10.0V + 0.05V
Recommend Charge Voltage：≤14.6V
Recommend Charge Current：≤50 A
Recomend Discharge Cut-off Voltage：≥10V
Recomend Discharge Current：≤100 A
Charging Temperature：0~45 ℃（32 to 113℉）
Discharge Temperature：-20~60 ℃（-4 to 140℉）
Storage Temperature：-10~45 ℃（14 to 113℉）
Water Dust Resistance：IP65
Case Material：ABS

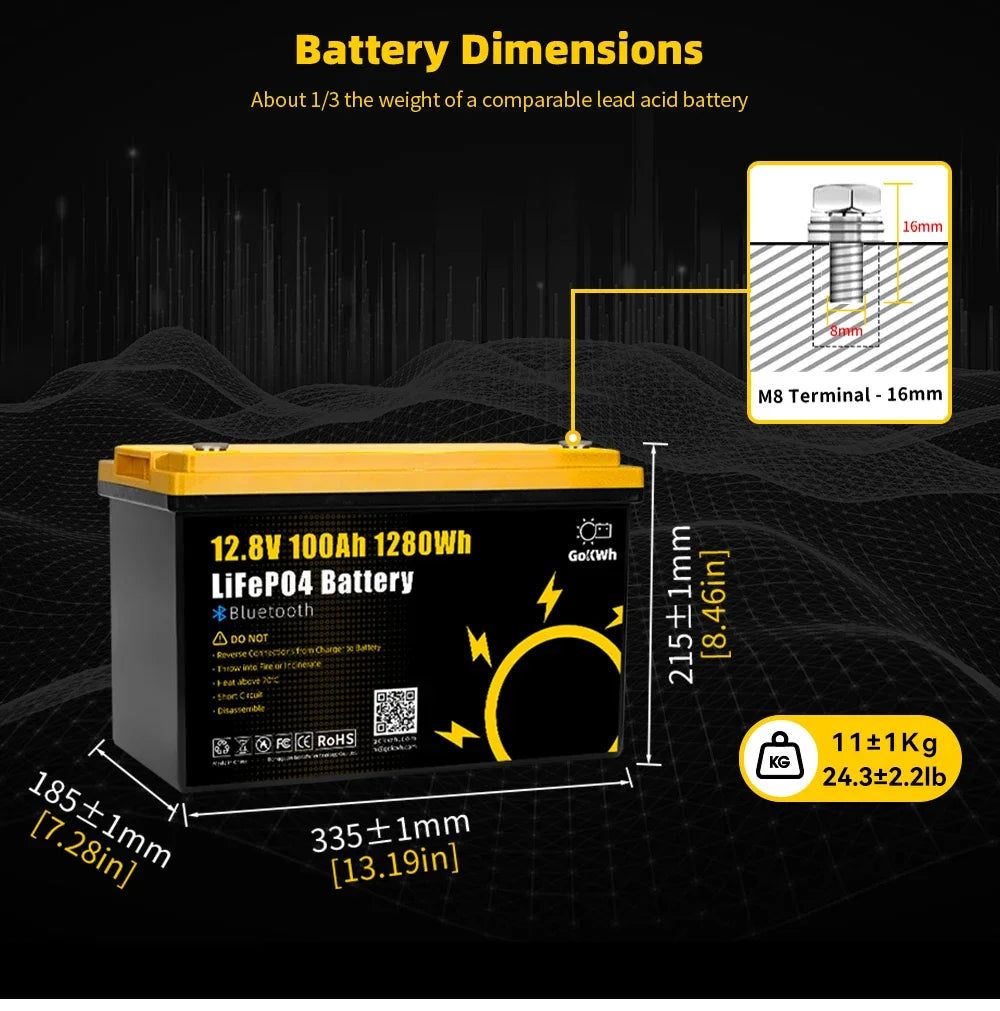

Demensions(L*W*H): 335*185*215±1.5mm
Weight: Approx. 11kg
Terminal Type: M8
12V100Ah: Wiht Bluetooth No LCD

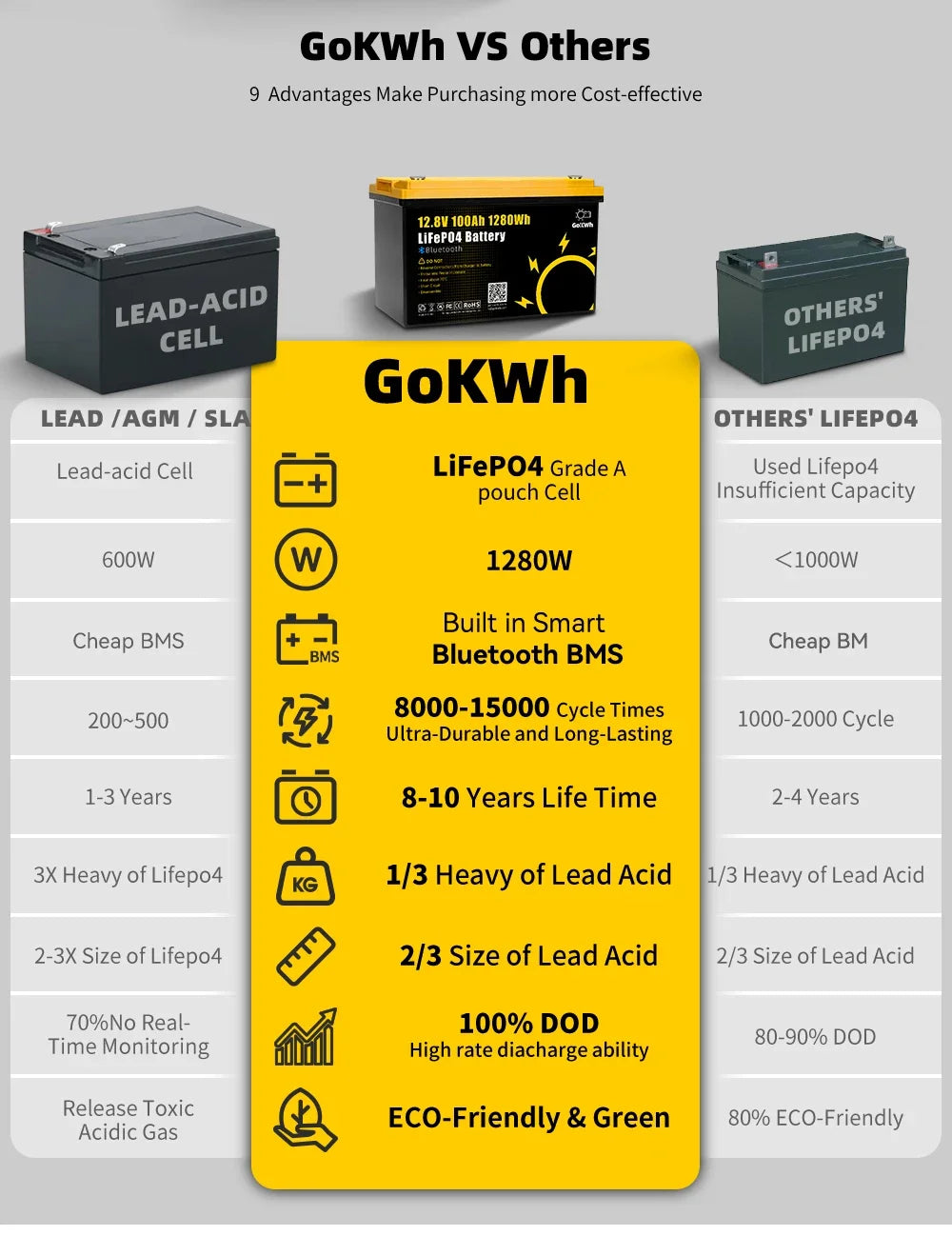

Why choose us?

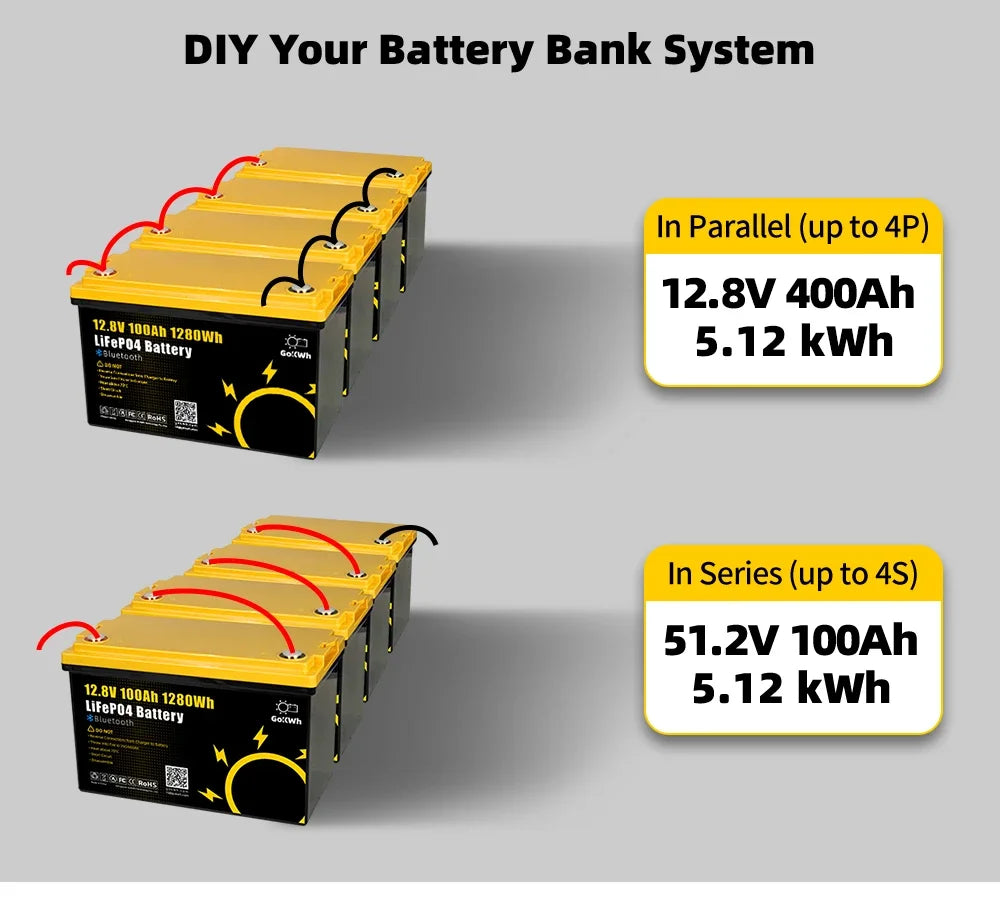

[DIY Your Battery Bank System(12.8V 100Ah)]

In Parallel (Maximum of 4 Batteries)
In Series (Maximum of 4 Batteries)
In Parallel (up to 4P)
12.8V 400Ah Battery System
5.12 kWh
In Series (up to 4S)
51.2V 100Ah Battery System
5.12 kWh

[Built in Reliable BMS System and Bluetooth]

Bluetooth Function
Overvoltage and Undervoltage Protection
Charge&DischargeOvercurrent Protection
Discharge Short Circuit Protection
Charge Overtemperature&Undertemperature Protection
Discharge Overtemperature Protection
High Temperature Protection of FET(Built-in)
Balance Function

High Output Power

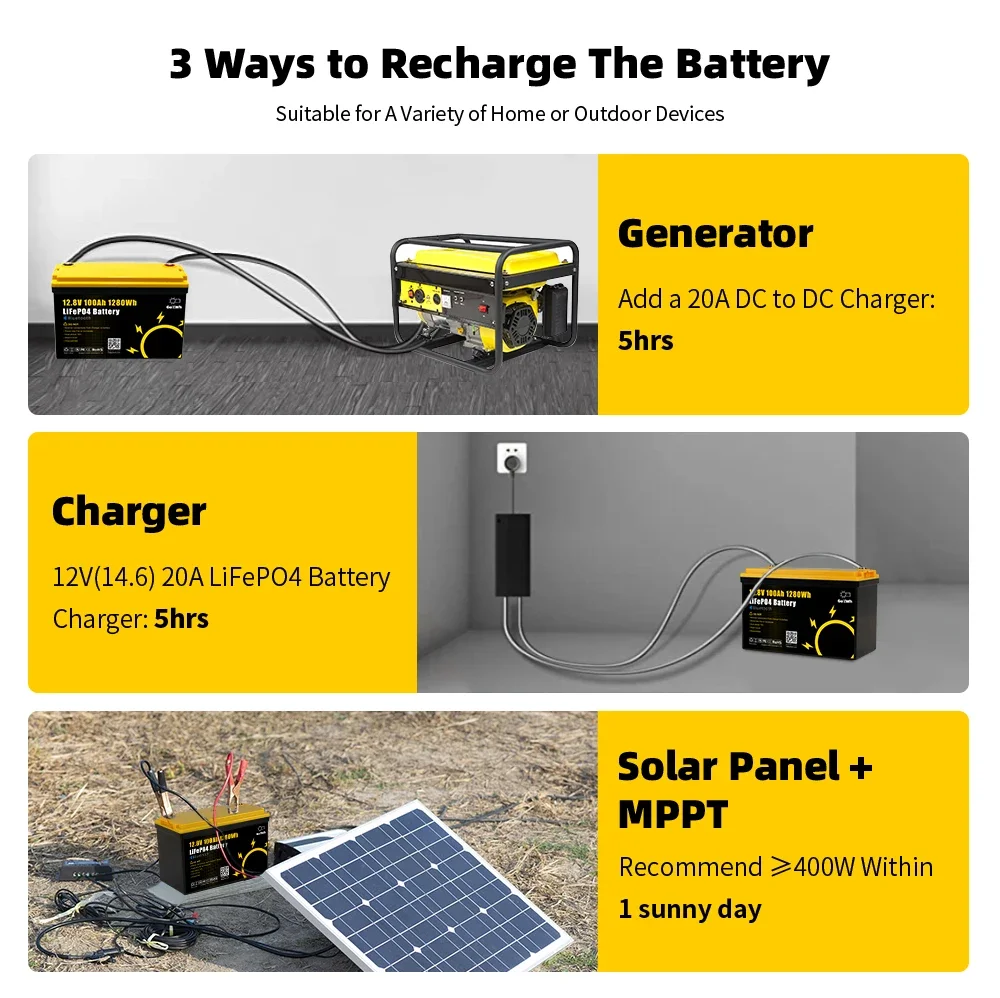

3 Ways to Recharge the battery

1. 12V (14.6V) 20A Lifepo4 Battery Charger: 5hrs
2. Solar Panels (Recommends =400w): 1 sunny day
3. Generator (add a20A DC to Charger):5hrs

NOTE:

①Do not charge below O°C; Do not use it as a start battery (such as golf cart), please contact customer service for a better solution.
②Installation Tips
• Install the battery upright with post bolts facing up or on its 2 smaller sides.
• DO NOT mount the battery upside down or laying down.
• Charge the battery between 32°F and 122°F.
③Series/Parallel Connection Premise
The same type of battery (Same Voltage,Capacity&BMS)
The same brand
Purchased within 3 months

FAQ

1.Does the Battery Pack Including the Screw and Wire Cable?

We will offer the M8 Screw but the wire cable not included.

2.Does the Battery Pack Built-in BMS?

Yes,bulit-in BMS and have Charge and Discharge Protection Function.

3.Can I Connect Series and Parallel at the Same Time？

Currently this Version only support Max 4 Series or Max 4 Parallels.If you have Special Demand Please Contact Our Sales

4.Do you Accept OEM/ODM?

We have Complete R & D and Engineering Team and Factory, Which can Provide You with Customization Service

5.Will it be Damaged Easily on the Road Since itself Heavy?

We Paid Great Attention to this and Use Strong and Safe Pack To Avoid Possible Damage During Transportation
