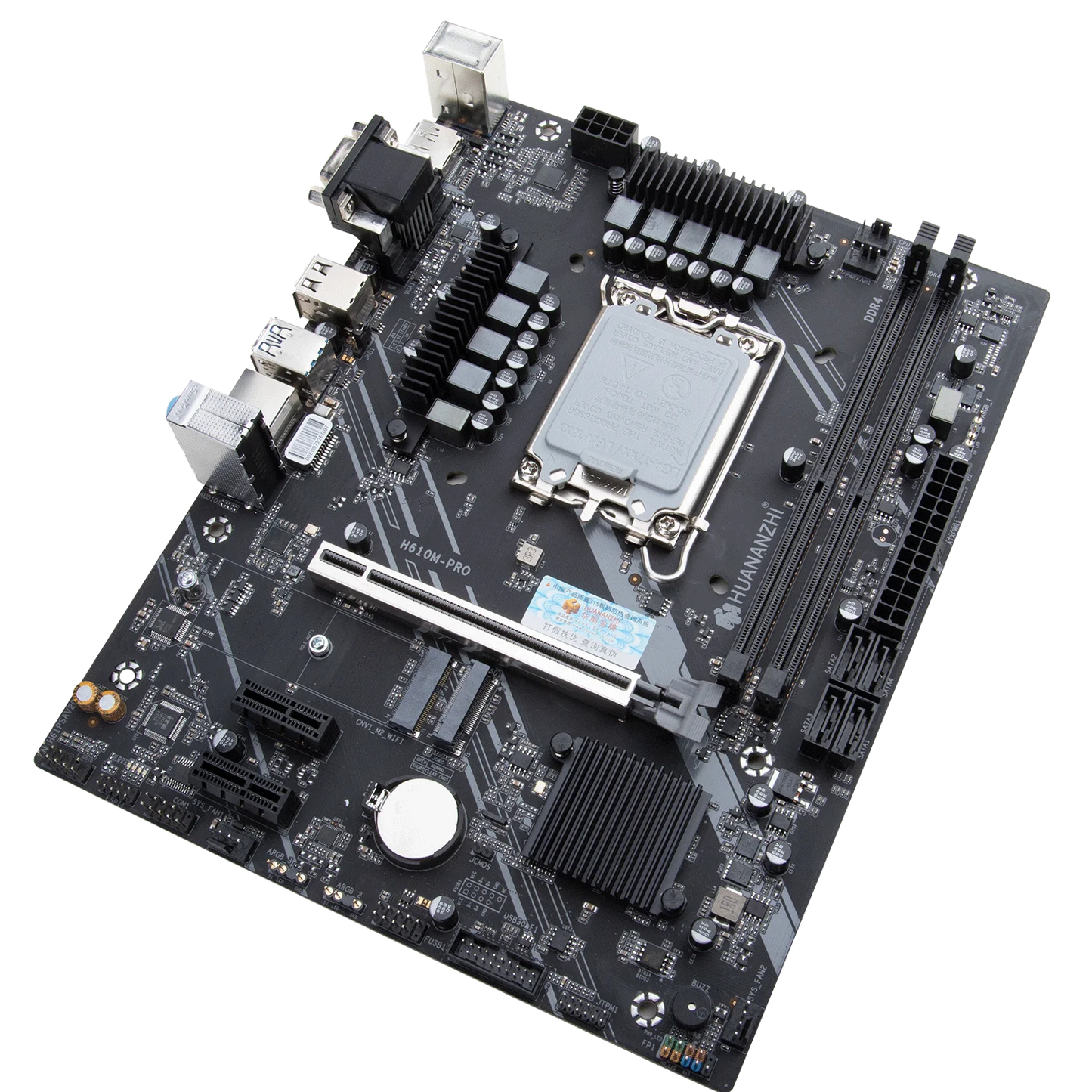

HUANANZHI H610M PRO M-ATX DDR4 Motherboard Support 12 13 Gen H610 Intel LGA 1700 CPU 12100F 12400F 12490F 12600F 12700F 13600F
HUANANZHI H610M PRO M-ATX DDR4 Motherboard Support 12 13 Gen H610 Intel LGA 1700 CPU 12100F 12400F 12490F 12600F 12700F 13600F
Couldn't load pickup availability
SPECIFICATIONS
Application: Desktop
Back I/O Ports: 1x RJ45,Disply Port,HDMI 2.1
Brand Name: HUANANZHI
Chipset: Intel H610
Chipset Manufacturer: Intel
Maximum Ram Capacity: 64 GB
Number Of Memory Slots: 2
Number of PCI: 0
Number of SATA Ports: 4
Onboard LAN: 1x RJ45
PCI - E standards: PCI-E 4.0
Package: Yes
Processor compatibility: 12th Intel Core i5,13th Intel Core i5,12th Intel Core i3,13th Intel Core i3
RAID Supported: No
Socket Type: LGA 1700
Special Features: None
Storage Interface Type: SATA
Support Memory Type: DDR4
Usage Scenario: Gaming,Audio & Video,Office
With CPU: No
If you have other requirements for the processor model and memory capacity, you can contact our staff to change the setting and recount the price
Specifications:

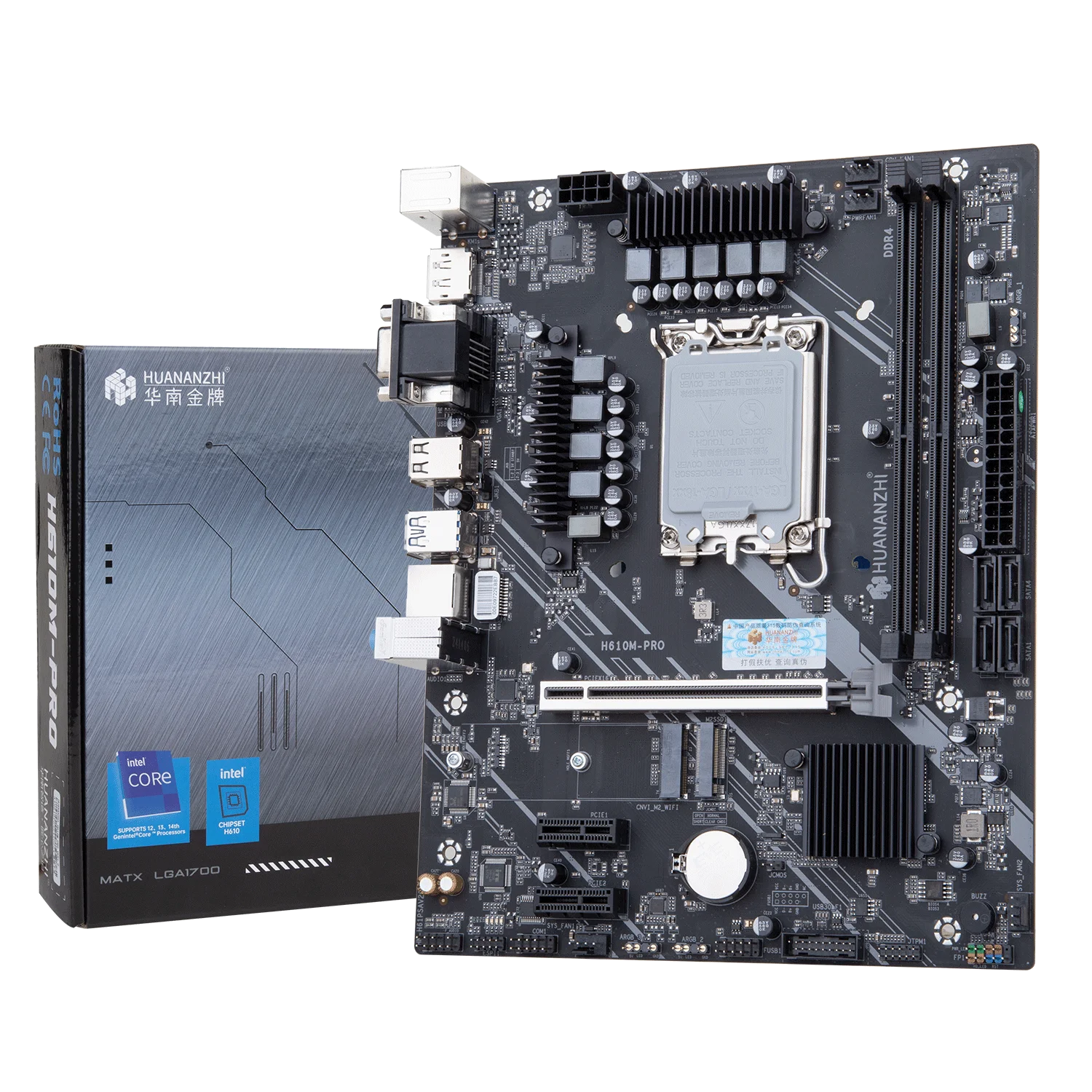

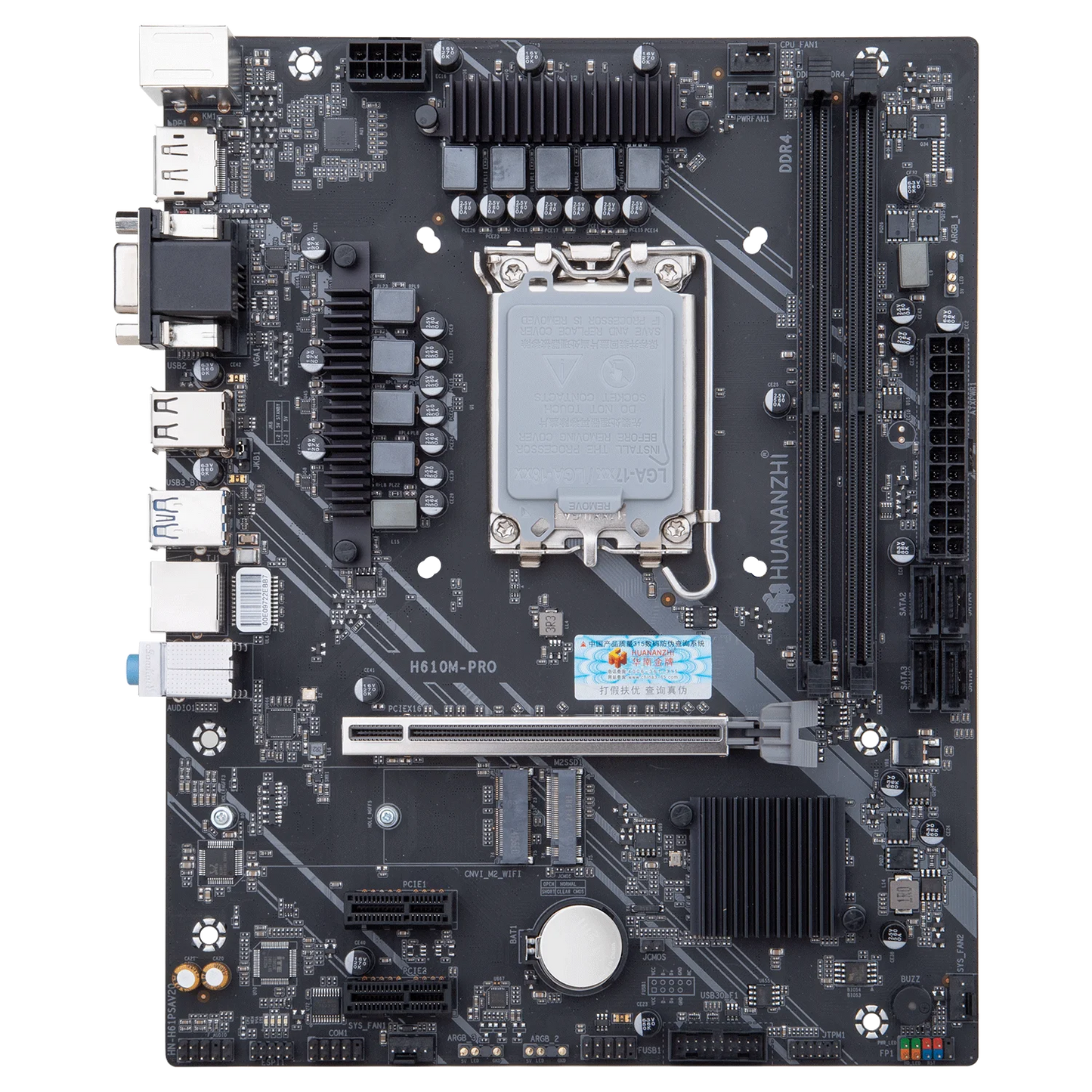

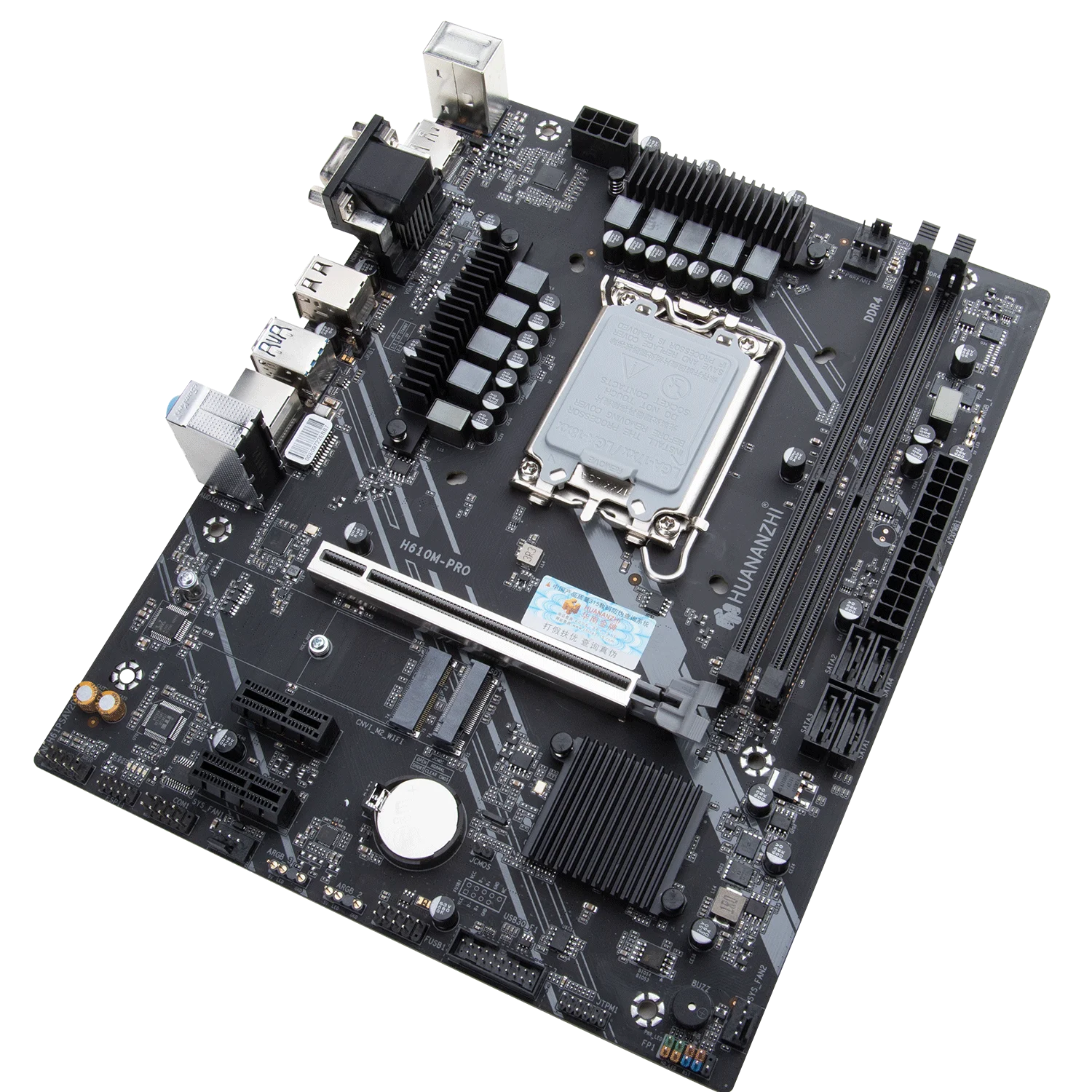

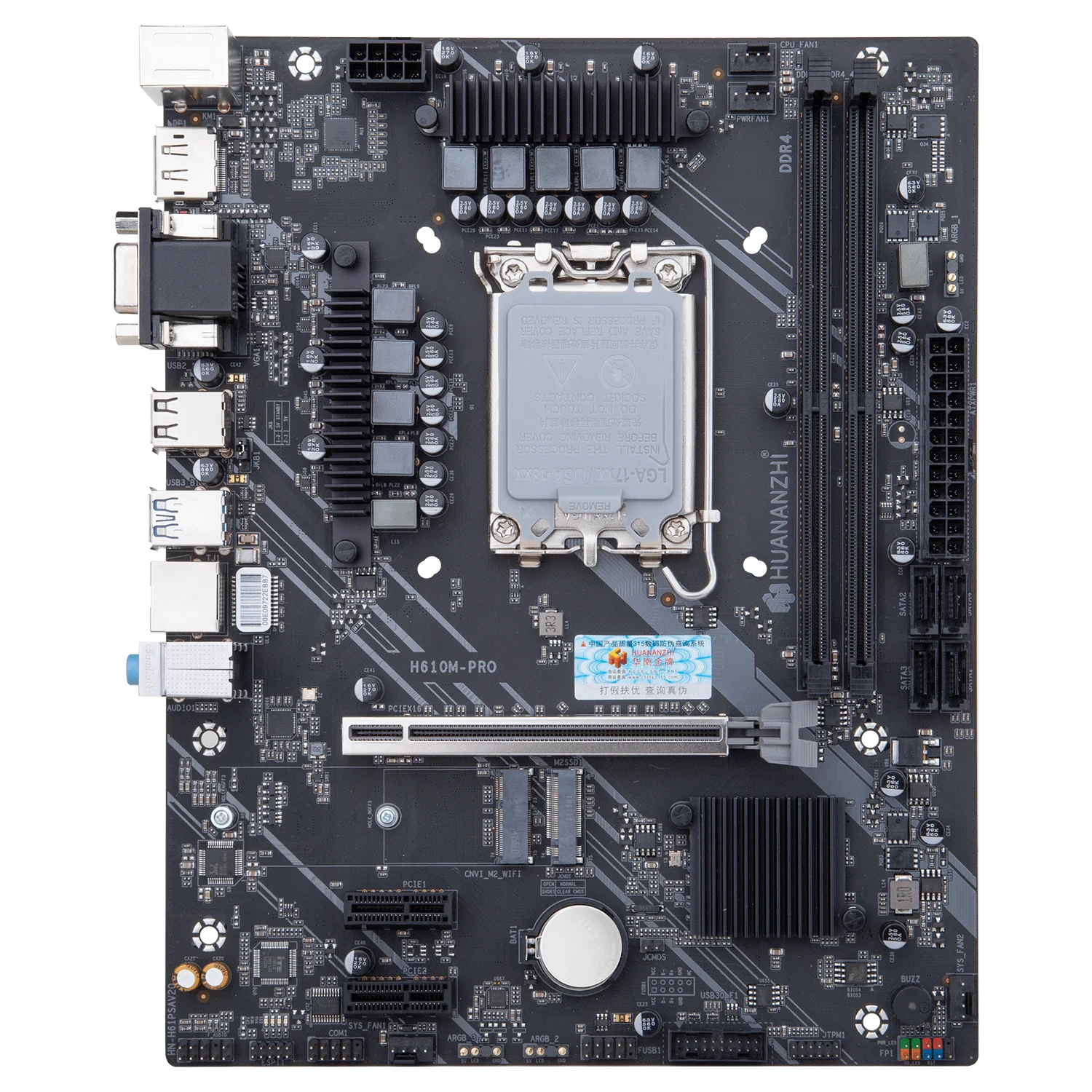

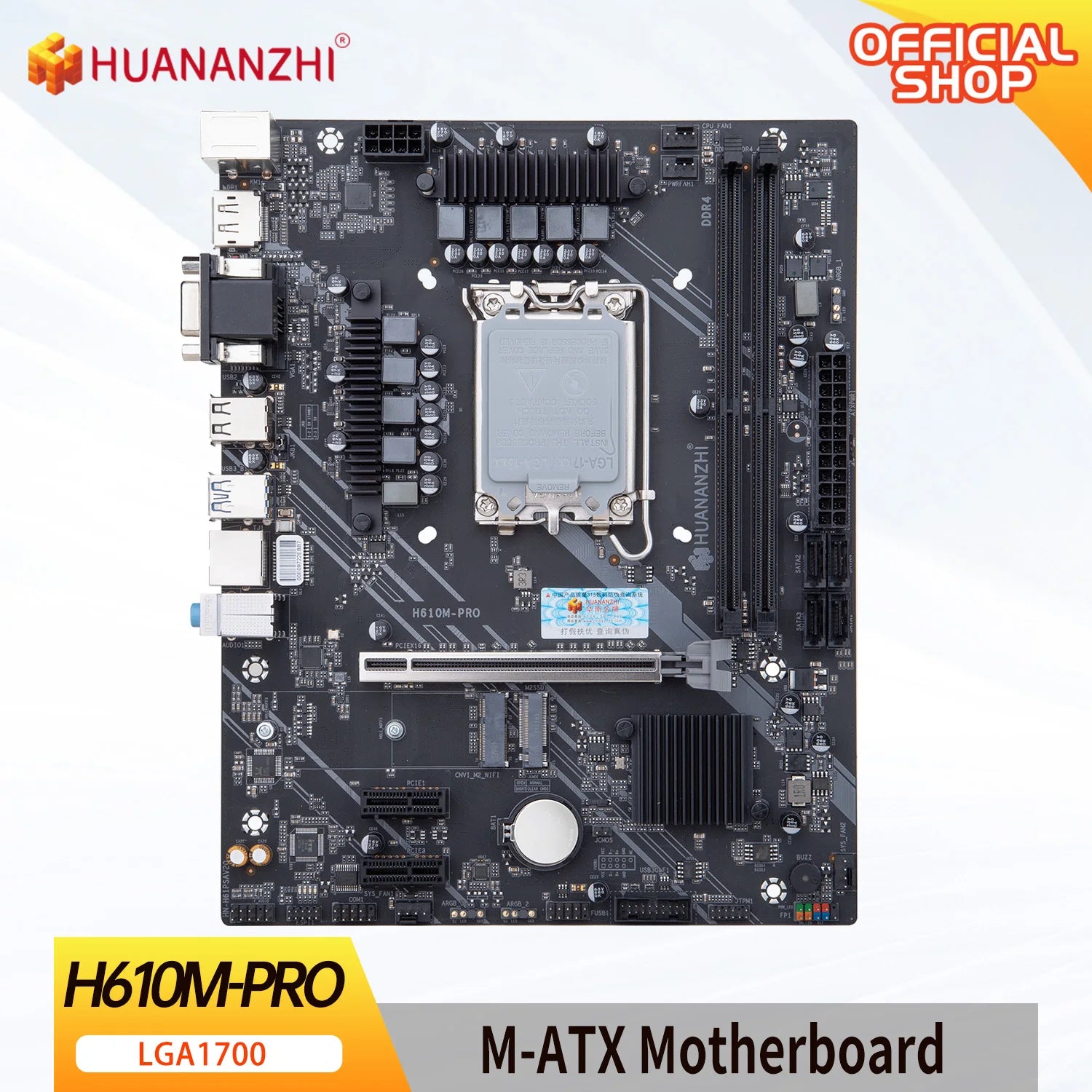

Model:HUANANZHI H610M-PRO Motherboard
Main chipset:Intel H610
CPU Socket:Support Intel LGA1700,Intel gen 12/13/14 Core CPU

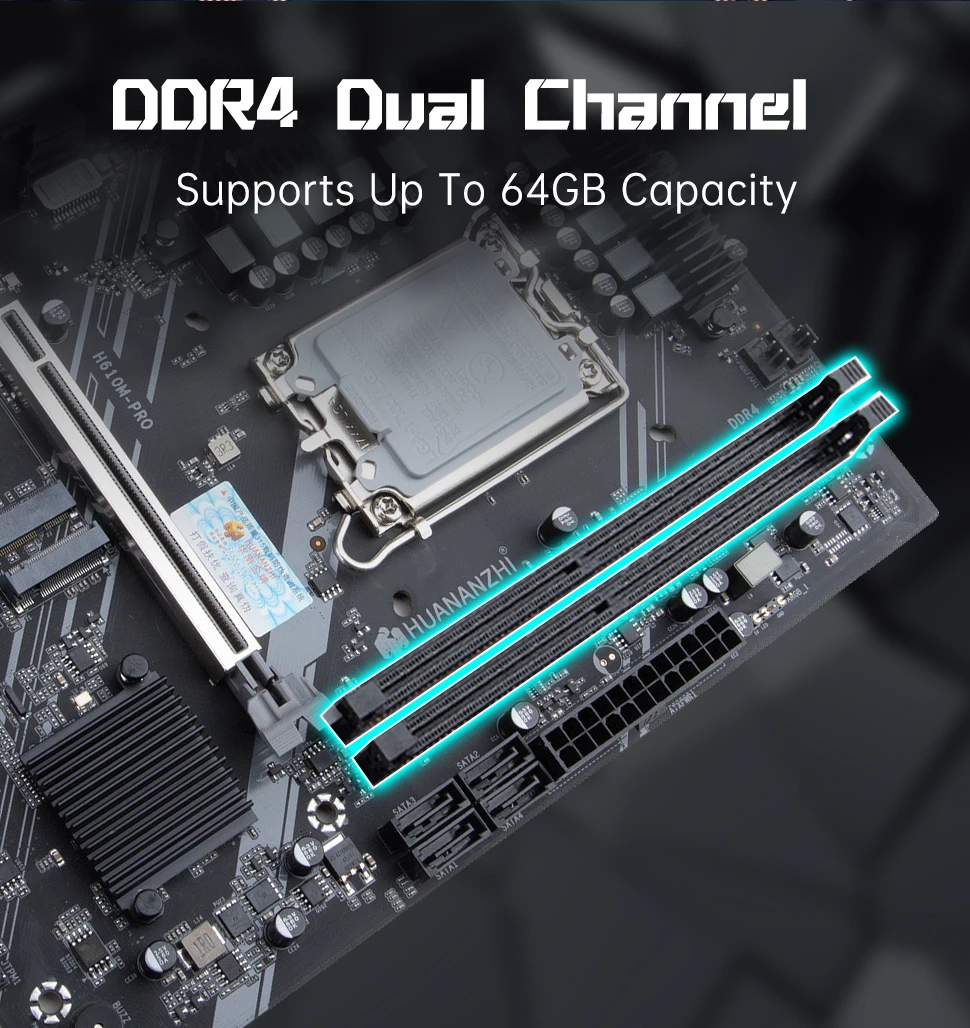

Memory slot:2 x DDR4 memory slot
Memory standard:Support Dual channels DDR4 3200/2933/2666/2133MHz,Max support 64GB

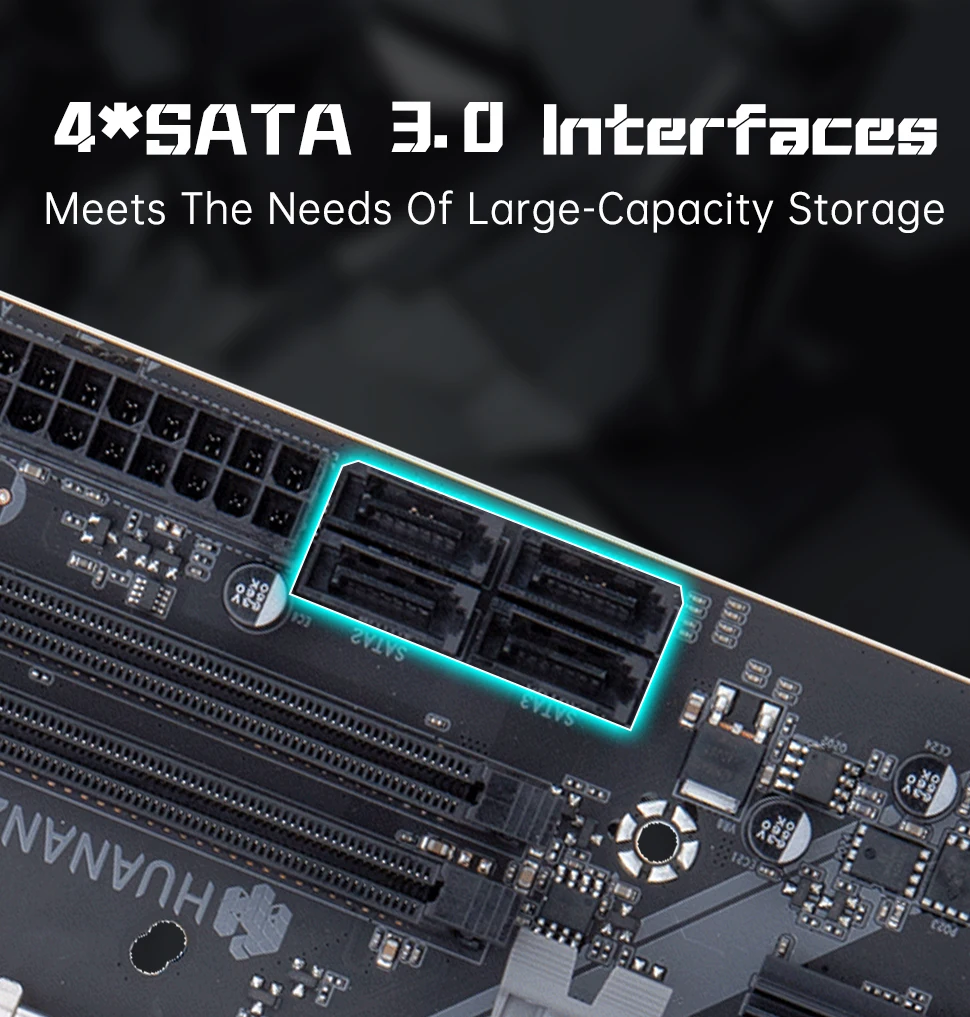

Storage interface:4xSATA3.0 6Gbps interfaces

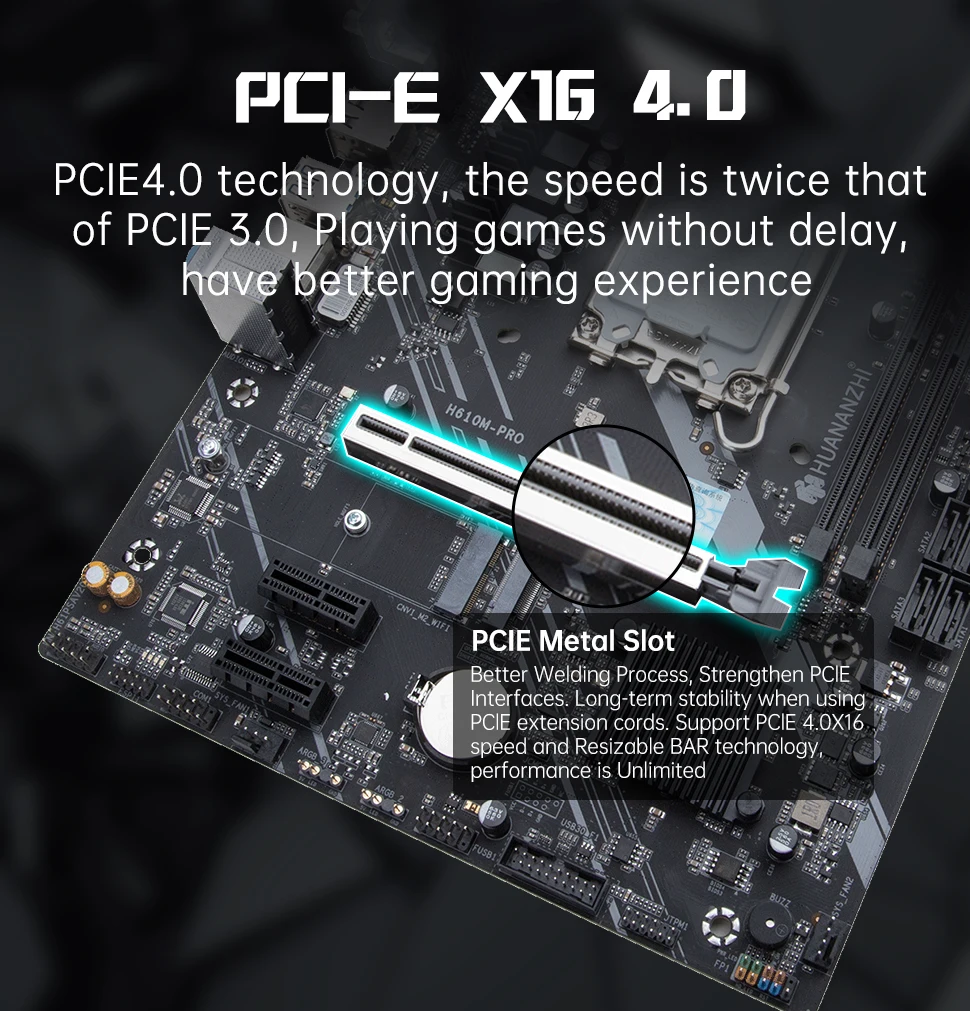

Expansion Slots:1xPCI Express4.0X16,2xPCIExpress3.0x1

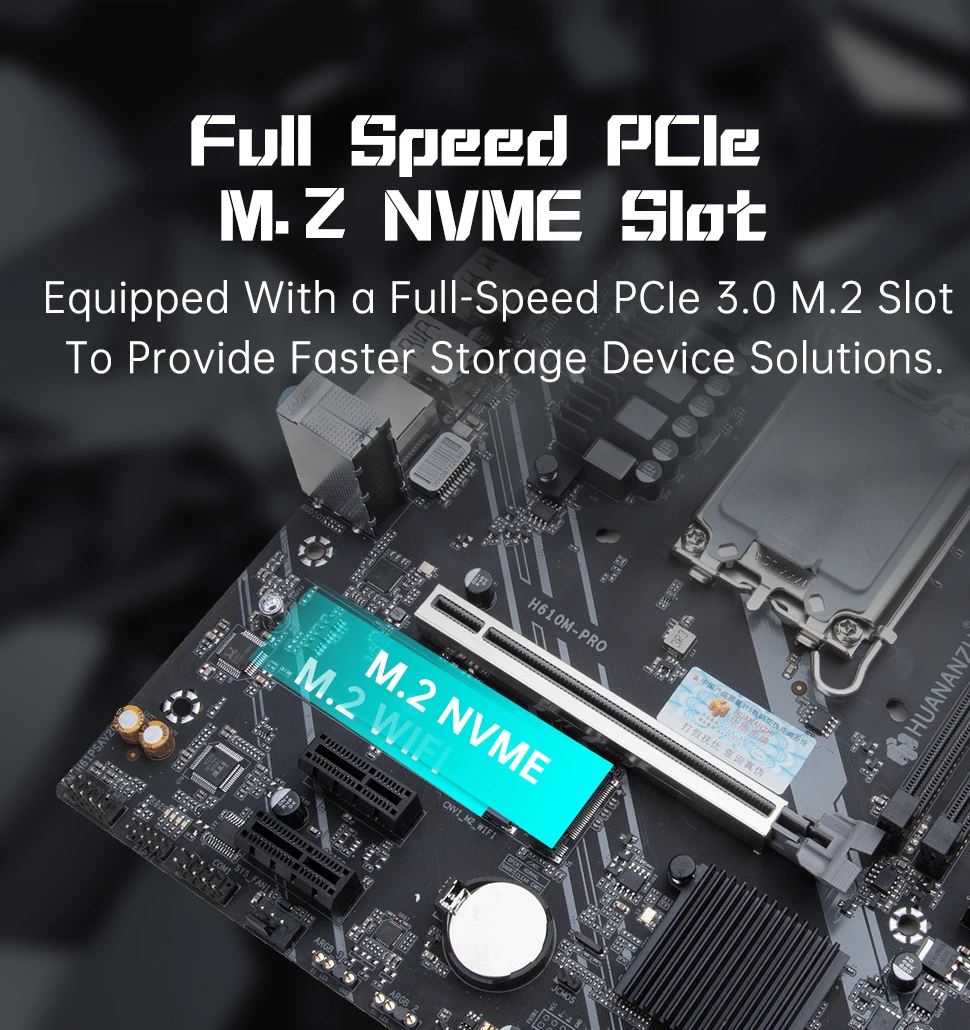

Expansion interface:1xM.2 2280 NVME PCIE X4 3.0 32Gb/s,1xM.2 WIFI
Soud Track:Realtek High Fidelity Audio
Network Card:Realtek 2.5G network card
Power interface:24pin+8pin

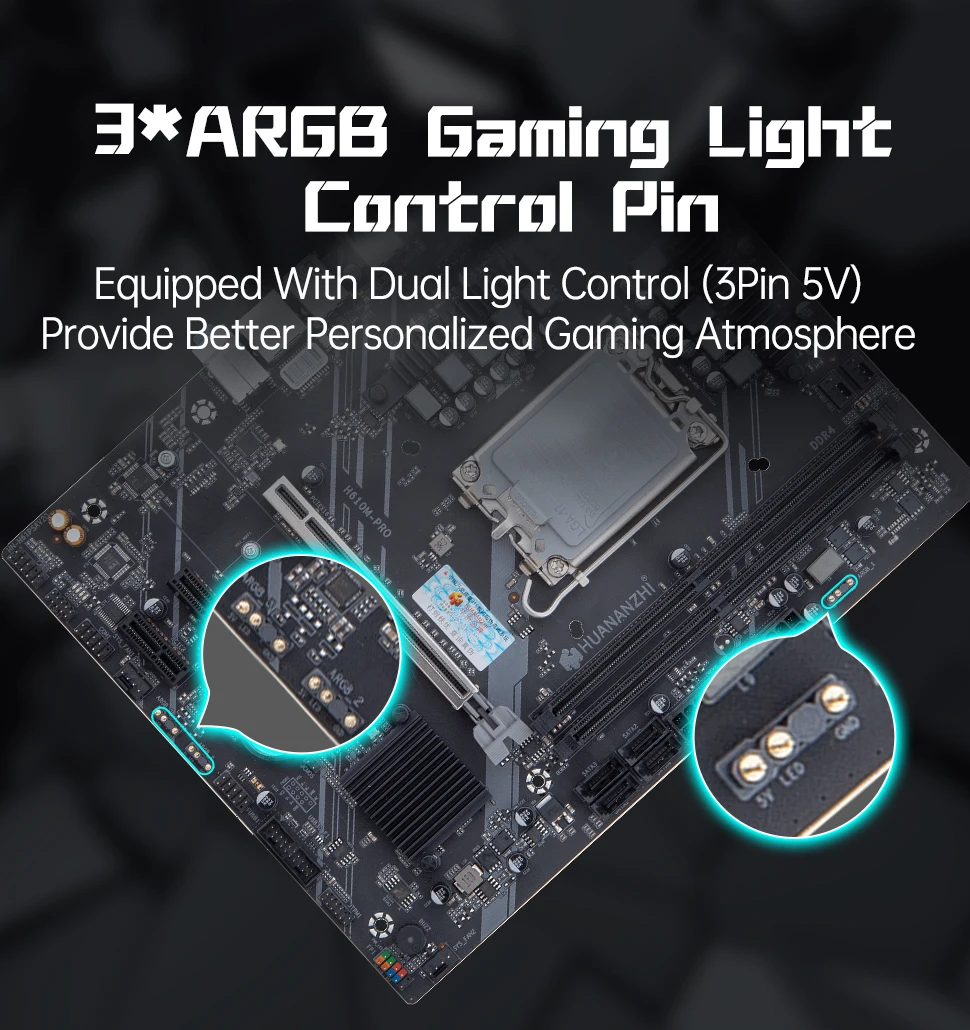

FAN PIN:1xCPU_FAN PIN(Adjustable speed),1xPWR FAN PIN,2xSYS_FAN PIN(SYS-FAN1 Adjustable speed),3x5V ARGB PIN(Download software from official website to control ARGB lighting effect)

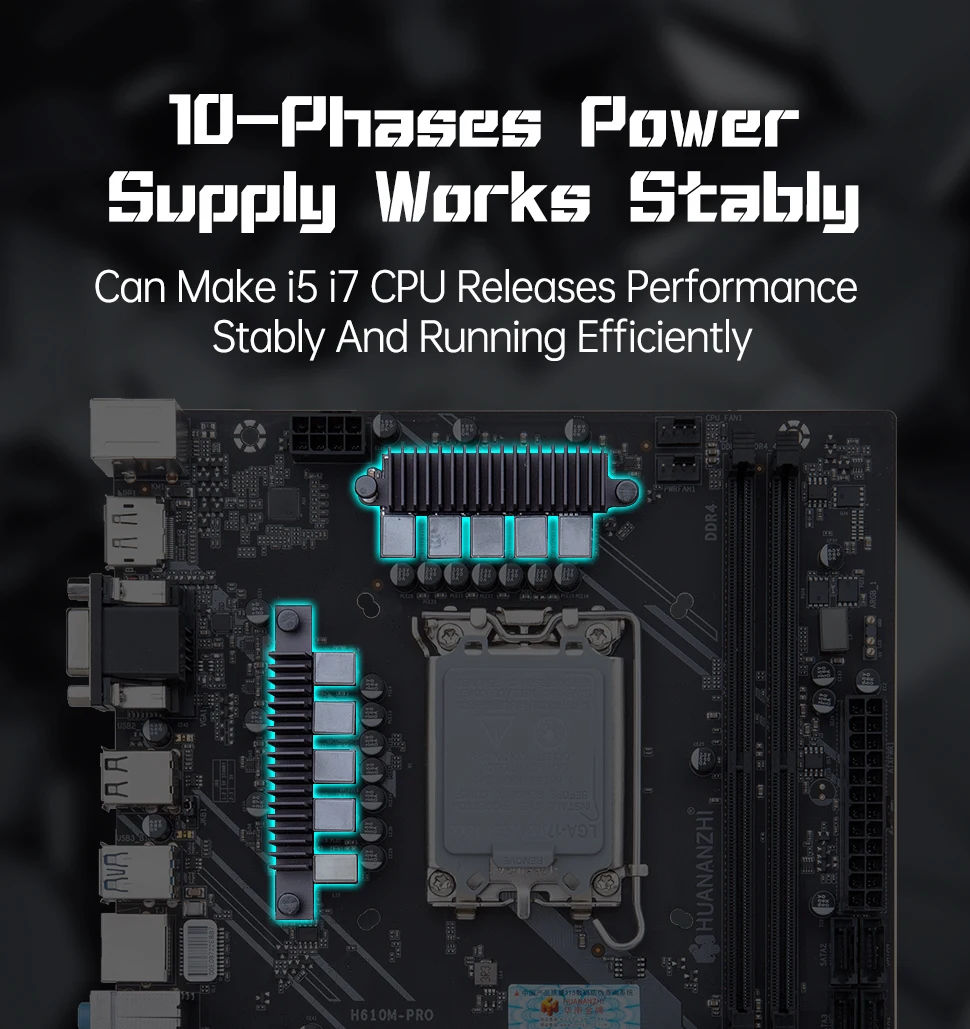

power supply:10-phase power supply
PCB layers:6-layer PCB

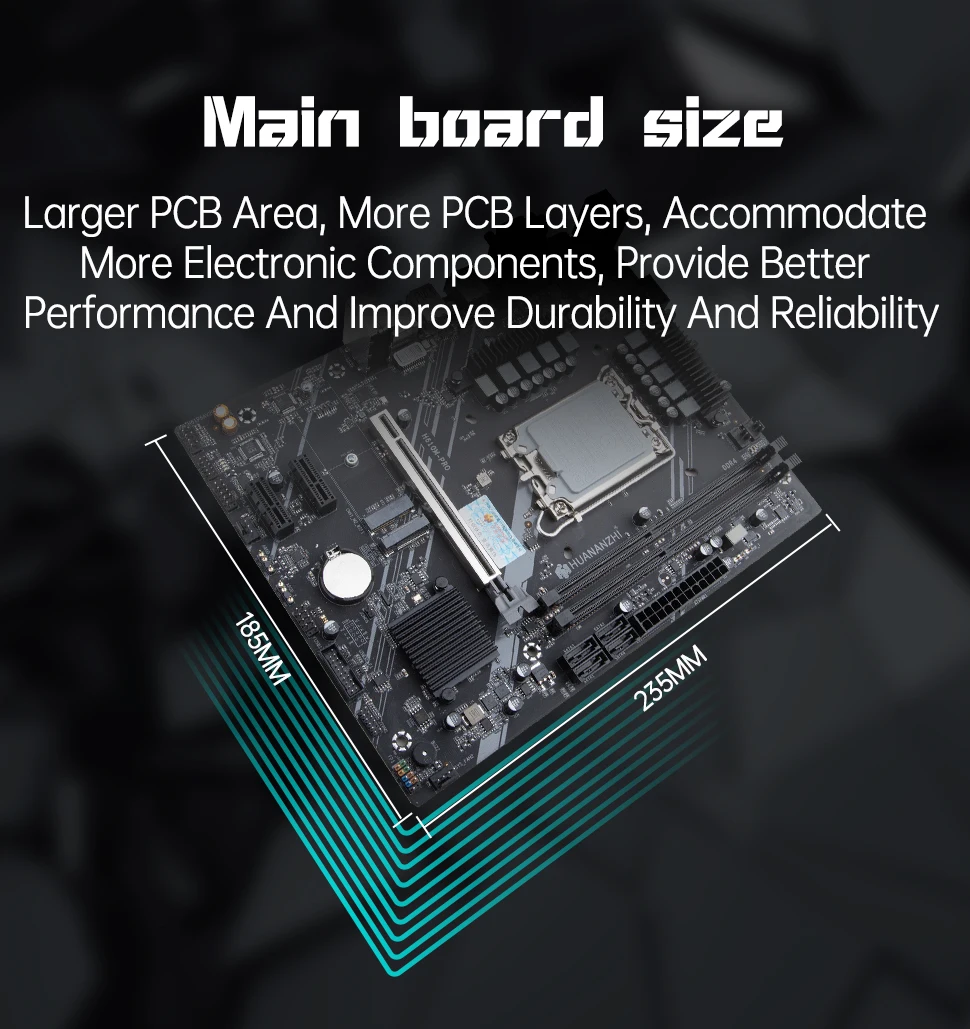

Dimension:235*185MM M-ATX

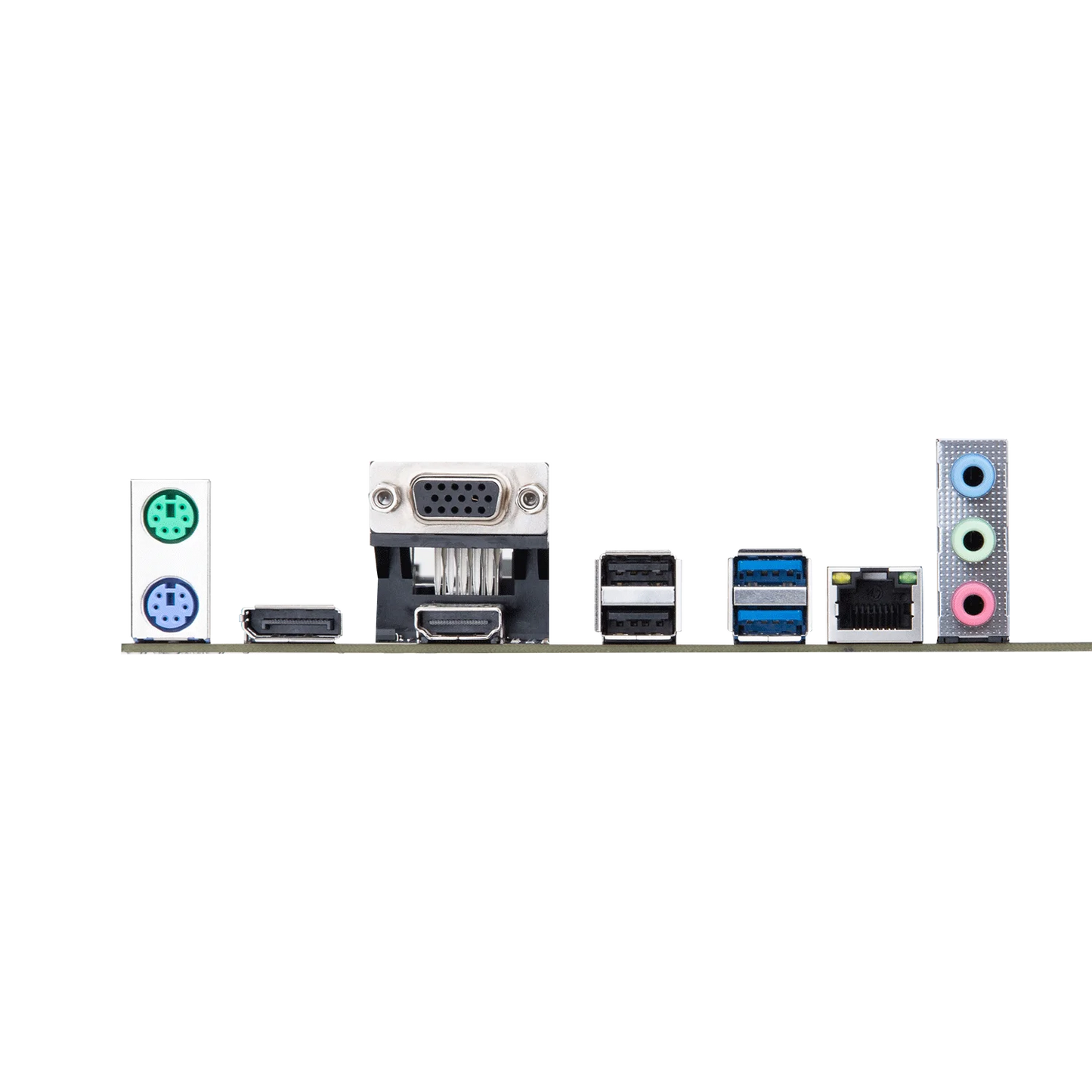

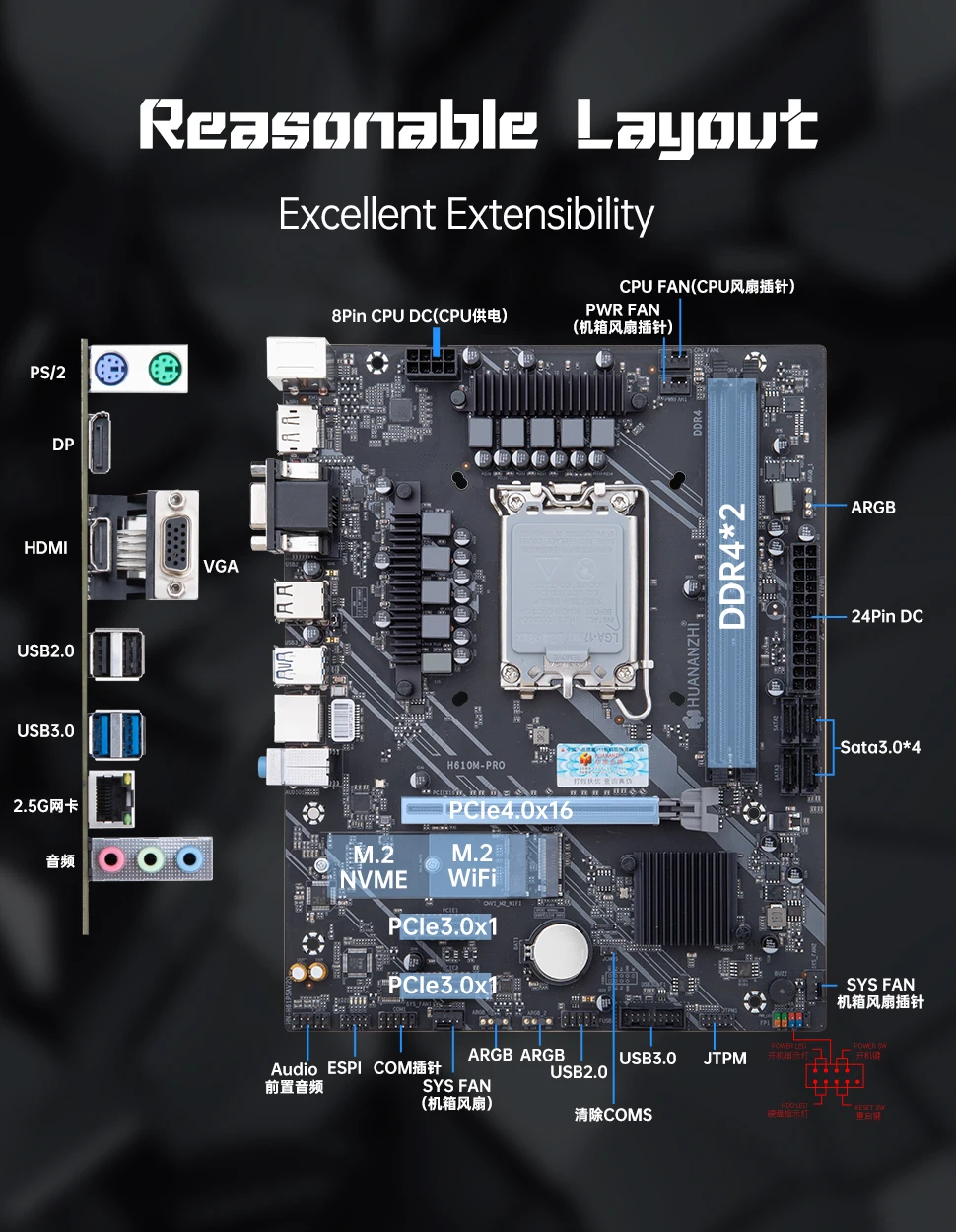

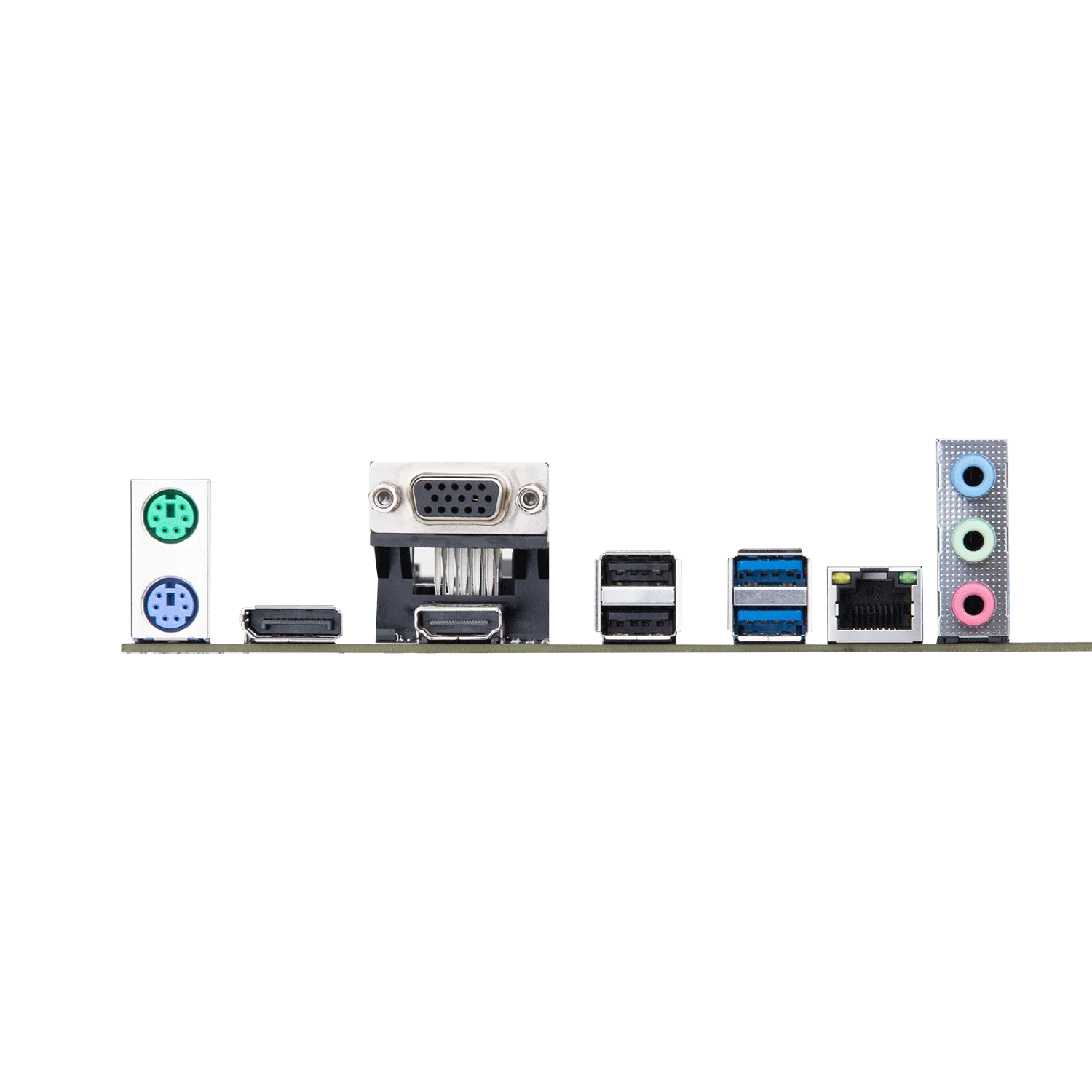

Rear panel interface:1xPS/2 Mouse and Keyboard port,2xUSB3.0,2xUSB2.0,1xHDMI 2.1,1xDP 1.4,1xVGA,1x Network card interface,1x3-hole audio interface

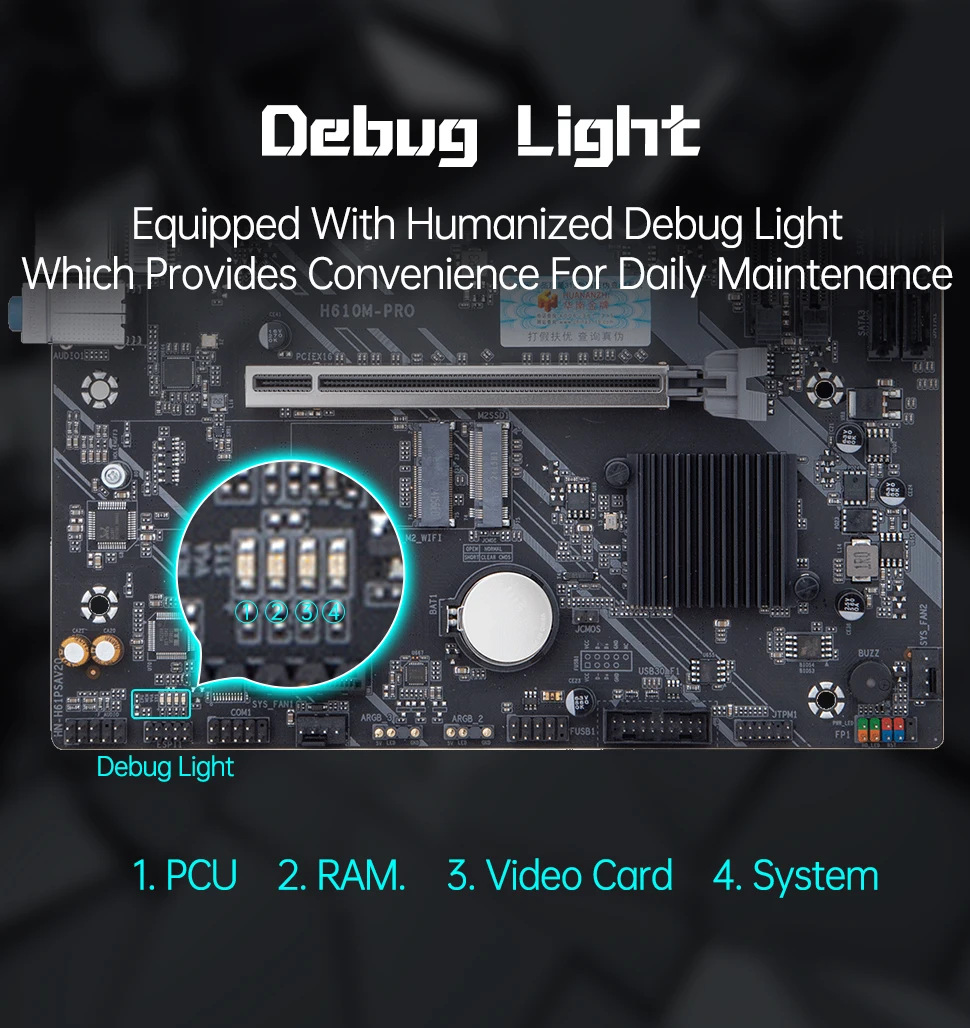

Front panel interface:1 x USB2.0 PIN,1 x USB3.0 PIN,1 x Front audio PIN,1 xCOMPIN,1 xPower on/restart pin,1x Debug pin,1 xCMOSPIN,1 x TPM 12-1PIN,1 x BuzzerPIN
Support system:Windows10 Windows11(Supports incoming power on/timed power on/network wake-up/S3 sleep/network card IPV4/IPV6)

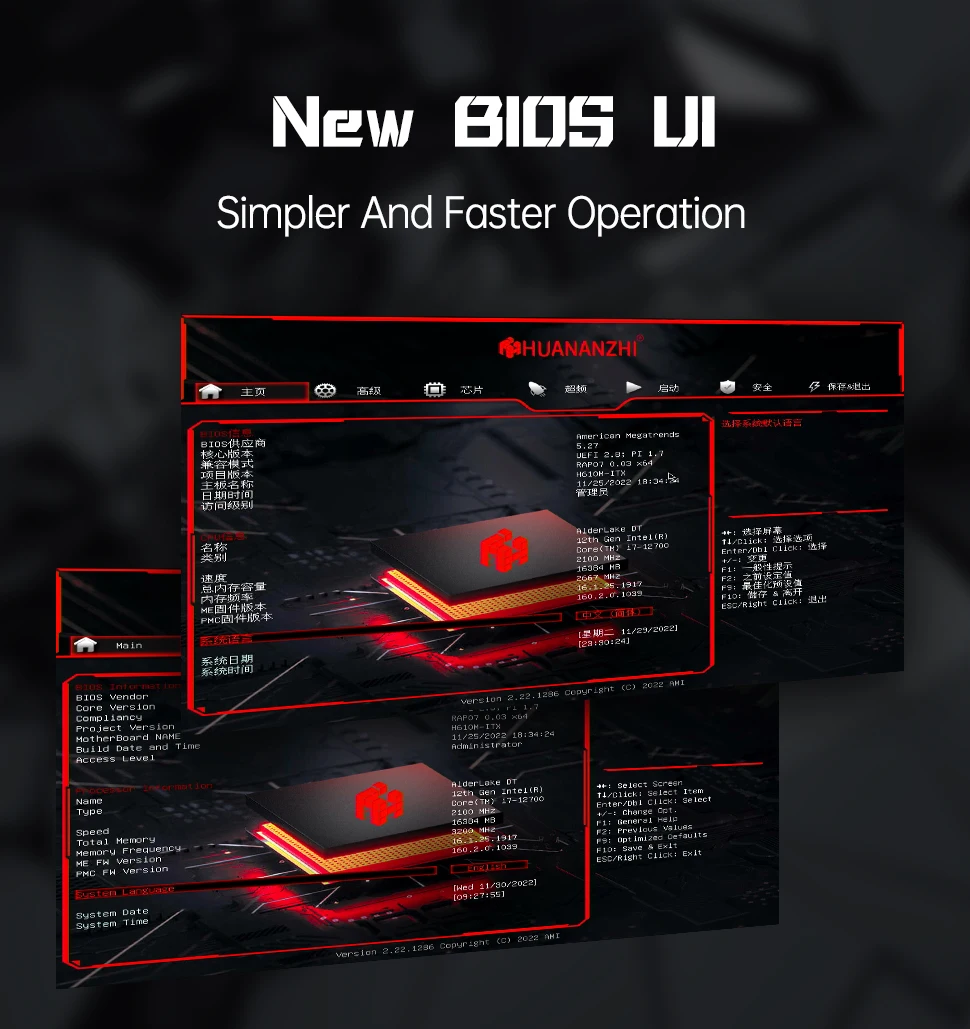

BIOS:AMI UEFI BIOS Graphics BIOS
Packing list:1 x Motherboard,1x SATA data cable,1xWarranty card
Gaming Light Control software:
http://www.huananzhi.com/en/more.php?lm=10&id=763
Note:
1.Please allow 1-3mm differs due to manual measurement.
2.Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
3.The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
4.For Customs duties problem , pls make sure you can solve the customs clearance problems by yourself, if you can't solve it, we don't advise you to buy goods in our store. We are not responsible for customs duties. Thanks for your kindly understanding!
5.Due to computer accessories is toomuch,are likely to have some small brand,bad quality or ES/QS version of the CPU, RAM, M. 2 SSD or other accessories may occur incompatible situation with motherboard.You can confirm with our customer service before purchase. if there is no confirmation before purchase then incompatible happen when you receive the motherboard, we would not accept a refund, when you buy this link of single motherboard we default you have read and know the situation.Mind please don't buy!
