SPECIFICATIONS

ARC Rated Output Current & Voltage: 180A/27.2V

Brand Name: HZXVOGEN

Certification: CE

High-concerned chemical: None

Hzxvogen Model: HVT250P AC DC

Is Smart Device: no

Model Number: HVT250P AC/DC

Rated Input Current (A): 26.3

Rated Input Power (KVA): 5.8

Rated Input Voltage (V): AC 220V±10%,50/60Hz

TIG Rated Output Current & Voltage: 200A/18V

Tig Welding Thickness: 0.5mm-8mm

function 1: Tig ACDC welding machine

function 2: Arc MMA Stick welding machine

function 3: tig pulse welding

plug type: EU/UK/USA

HZXVOGEN AC/DC Aluminum Tig Welding Machine HVT250P MMA ARC Stick Welder 200Amp Tools IGBT Inverter 2T 4T soldador With Pulse Function for Electric Working

Specifications:

Brand name: HZXVOGEN

Model:VT250P ACDC

Rated Input Voltage(V) :AC220V:10%,50/60Hz

Rated Input Power(KVA)5.8

Rated Input Current(A):26.3

TIG Rated Output Current & Voltage:200/18V

MMA/ARC Rated Output Current & Voltage:180A/27.2V

TIG Output Current(A):10-200

MMA/ARC Output Current(A):20-180

MMA/ARC No-load voltage: 67V

TIG No-load voltage:65V

Rated Duty Cycle(%):60

Efficiency(%):85

Protection Class:IP21S

Insulation Class:F

Packing dimension: 480mm*270mm*365mm

Base material: carbon stainless, low-alloy steel,titanium,stainless steel ,aluminum

Welding process :AC DC TIG/ARC

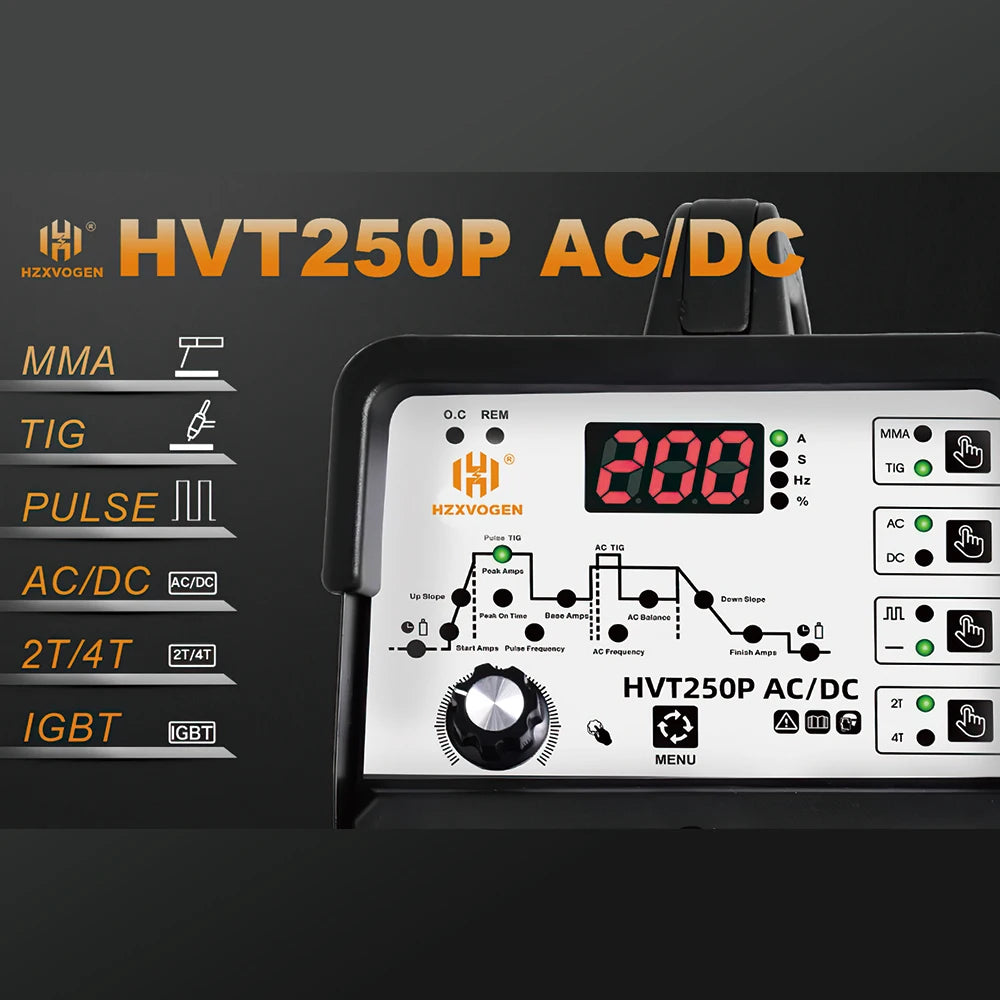

4.TIG welding machine is easy for arc initiation and has the functions of arc initiation current, arc stop current, welding current, basic value current, current ascending time, current descending time, gas delay time, continuous adjustment What’s more, pulse frequency and pulse duty can also be adjusted independently It has the

characteristics of automatic control of arc initiation, arc stop and stable arc, which make the best result for

shape and inner quality of the welding surface.



5.The machine can be for multi-use, and can weld stainless steel, carbon steel, copper and other color metal,

and also can use for traditional electric welding

Features:

1.The TIG welding machine has the most advanced inverter technology.

2.Welding power source can offer stronger, more concentrated and more stable arc.



3.When stick and work piece get short, its response will be quicker. It means that it is easier to design welding machine with different dynamic characteristics, and it can even be adjusted specially to make arc softer and also harder.

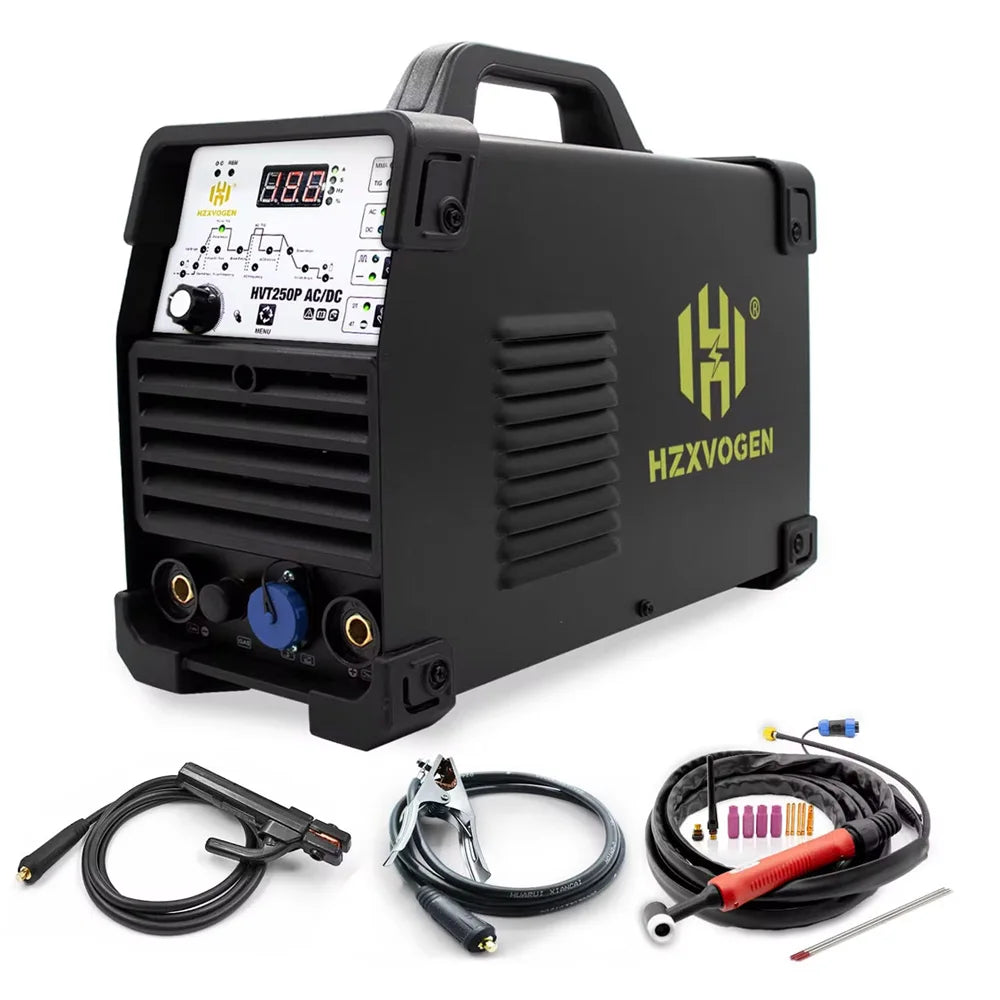

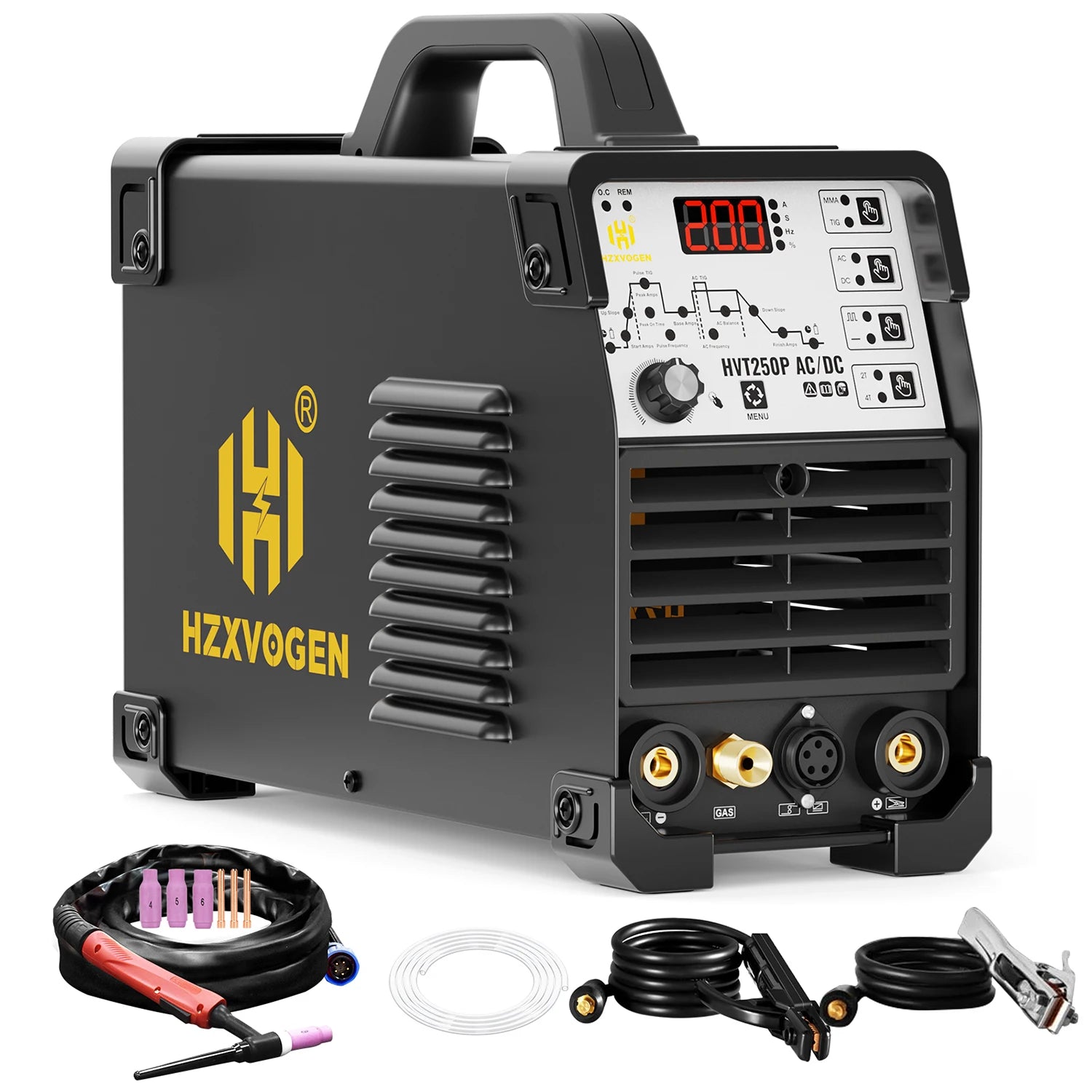

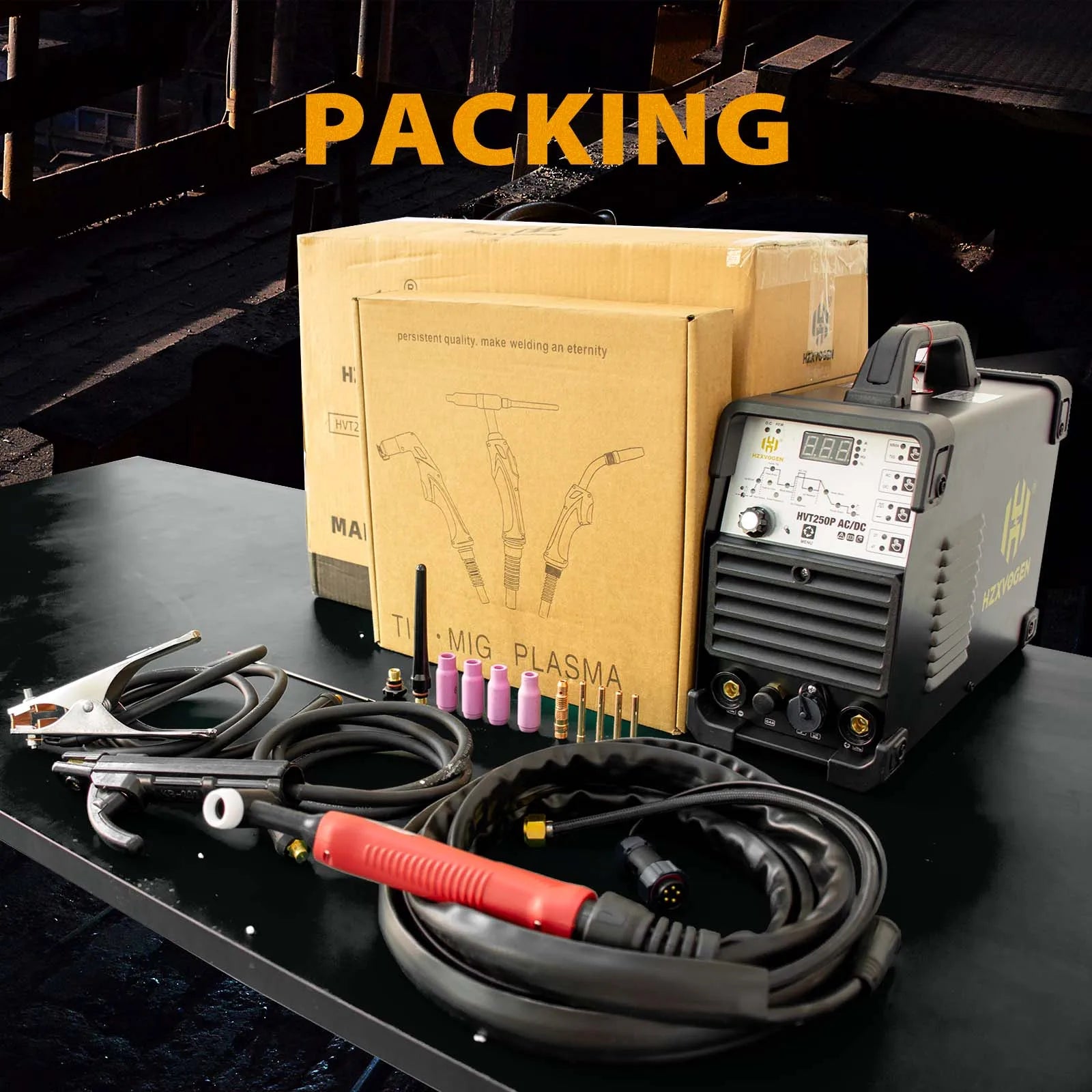

Package Content:

1* TIG Welding Machine HVT250P AC/DC

1* 17V Tig torch

1* Electrode holder

1* Earth clamp

1* Pack of tips and nozzles

2* Tungsten Electrodes

1*Manual

Notice: We'd like you to confirm the type of plug with us, please kindly leave the note for it when place the order, thank you.

*Europe plug * American plug * UK plug* AU plug
