SPECIFICATIONS

Application: Desktop,Server

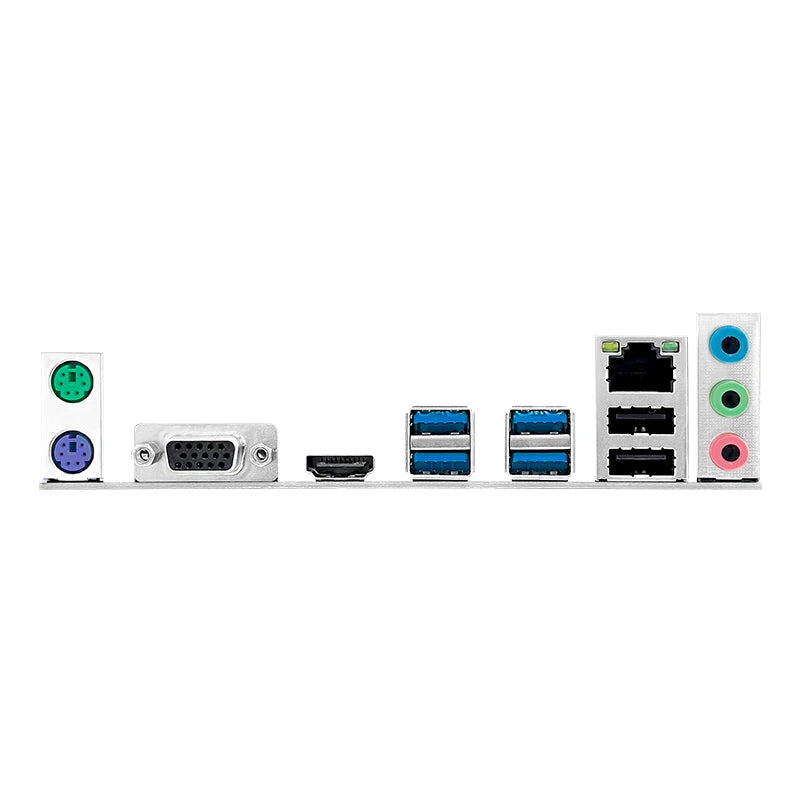

Back I/O Ports: 1x RJ45

Battery Included: Yes

Brand Name: JGINYUE

Chipset: AMD

Chipset Manufacturer: AMD

Maximum Ram Capacity: 64 GB

Number of PCI: 0

Onboard LAN: 1x RJ45

PCI - E standards: PCI-E 3.0

Package: Yes

Processor compatibility: AMD Athlon

RAID Supported: No

Socket Type: AM4

Special Features: None

Storage Interface Type: SATA,M.2 (NVMe)

Support Memory Type: DDR4

Usage Scenario: Enthusiast & Overclocking,Gaming,Office

With CPU: No

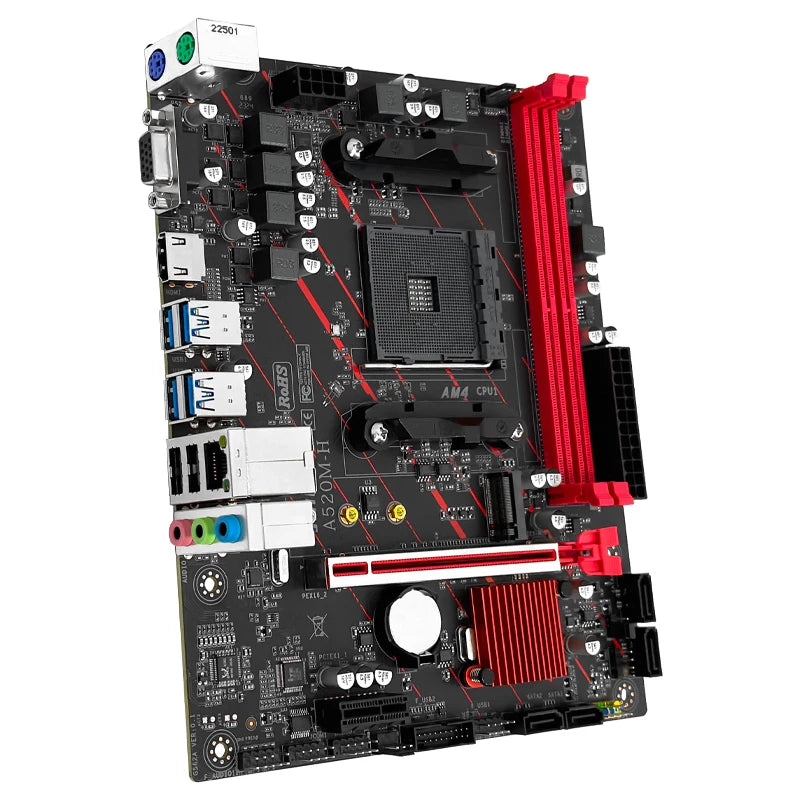

JGINYUE A520M-H motherboard

Supports Socket AM4 4000 series and 5000 series AMD Ryzen processors

Two DDR4 dual channels support a maximum capacity of 64G

1 M.2 NVME protocol interface, 4 SATA3.0

6-phase power supply, Realtek 8111H Gigabit network card, Realtek ALC662 audio chip

1 PCI-E X16 slot, 1 PCI-E X1 slot

1 HDMI interface, 1 VGA interface
