SPECIFICATIONS

Application: Desktop,Server,Workstation

Back I/O Ports: 1x RJ45

Battery Included: Yes

Brand Name: JGINYUE

Chipset: AMD B450

Chipset Manufacturer: AMD

Maximum Ram Capacity: 32 GB

Number of PCI: 0

Onboard LAN: 1x RJ45

PCI - E standards: PCI-E 3.0

Package: Yes

Processor compatibility: AMD Others

RAID Supported: No

Socket Type: AM4

Special Features: None

Storage Interface Type: SATA,M.2 (NVMe)

Support Memory Type: DDR4

Usage Scenario: Enthusiast & Overclocking,Gaming,Office

With CPU: No

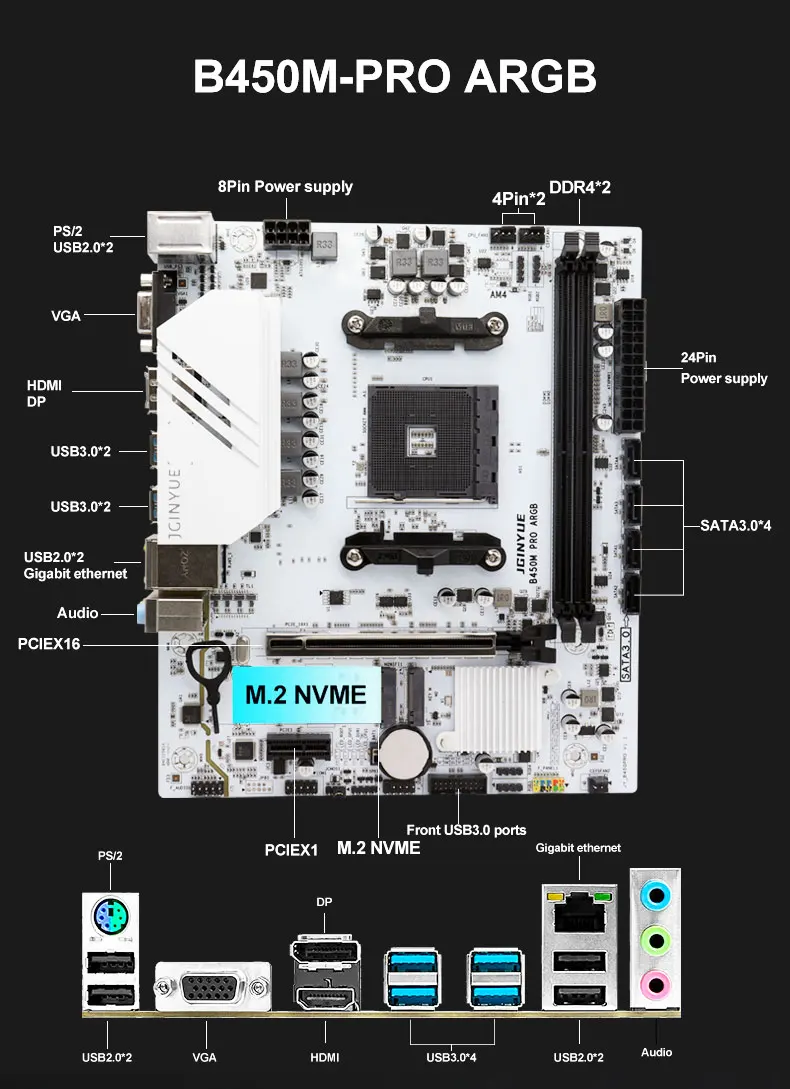

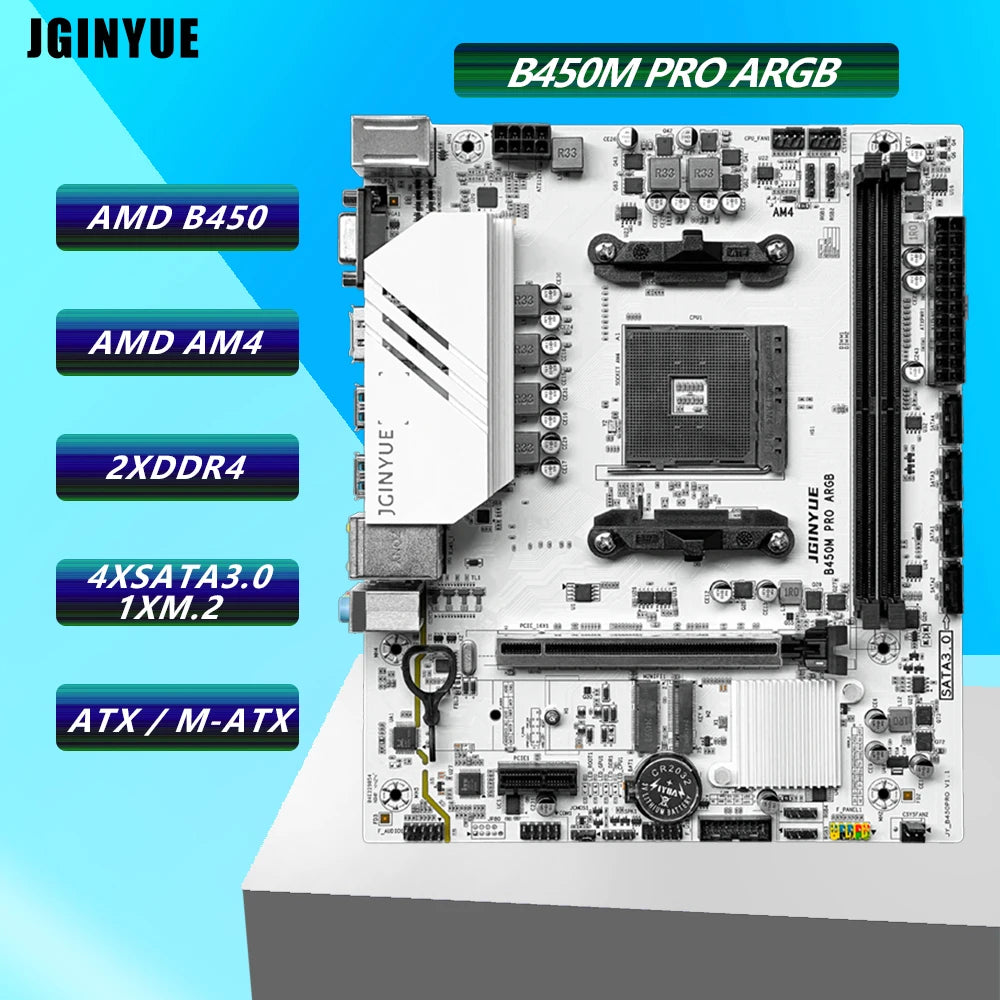

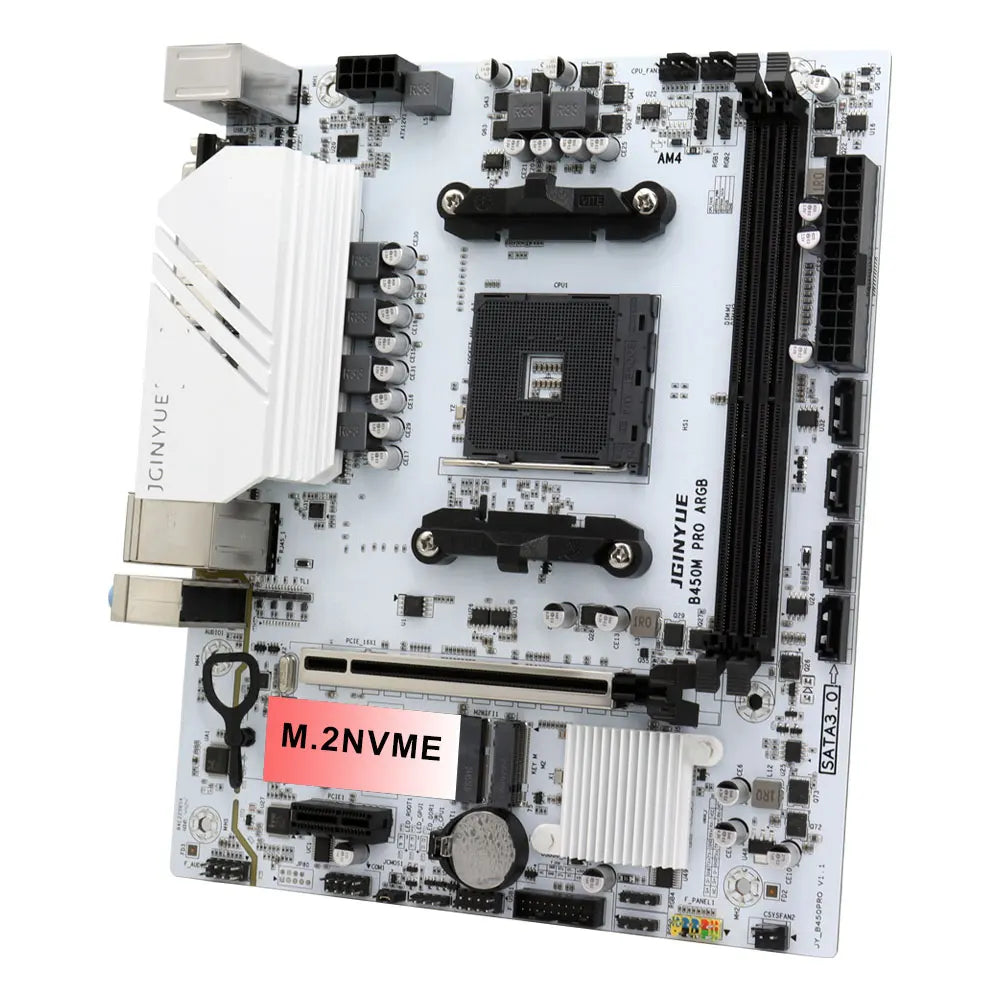

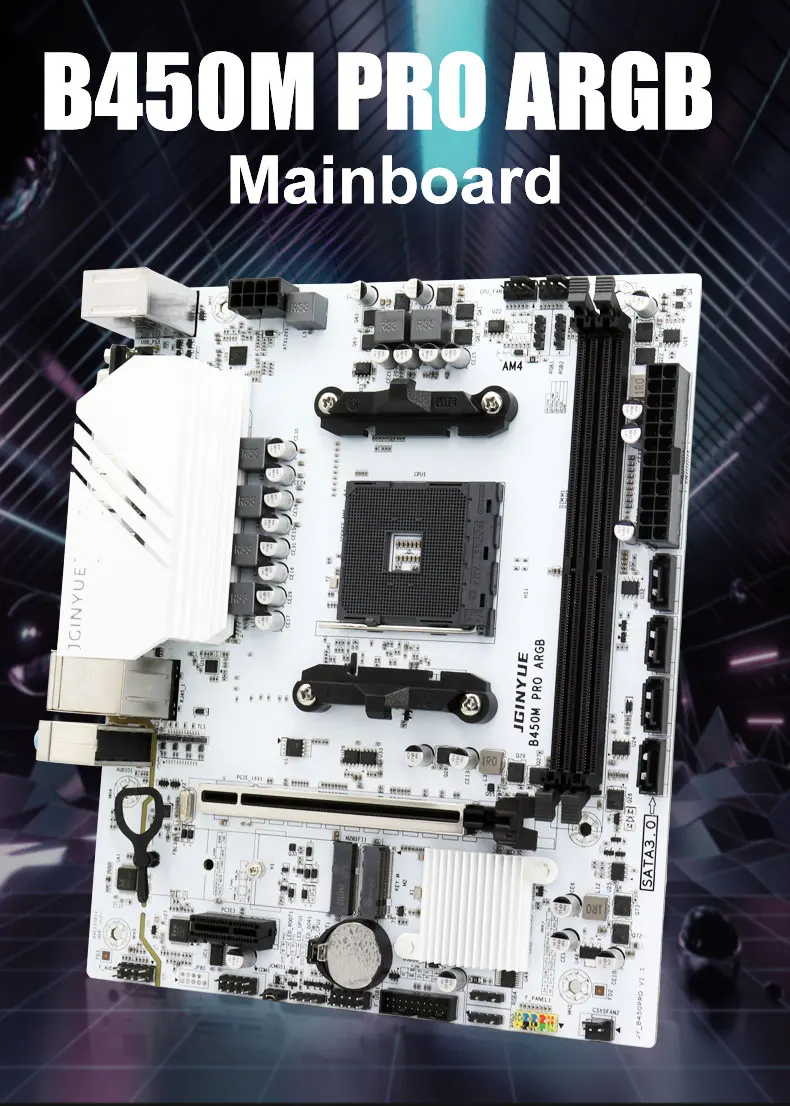

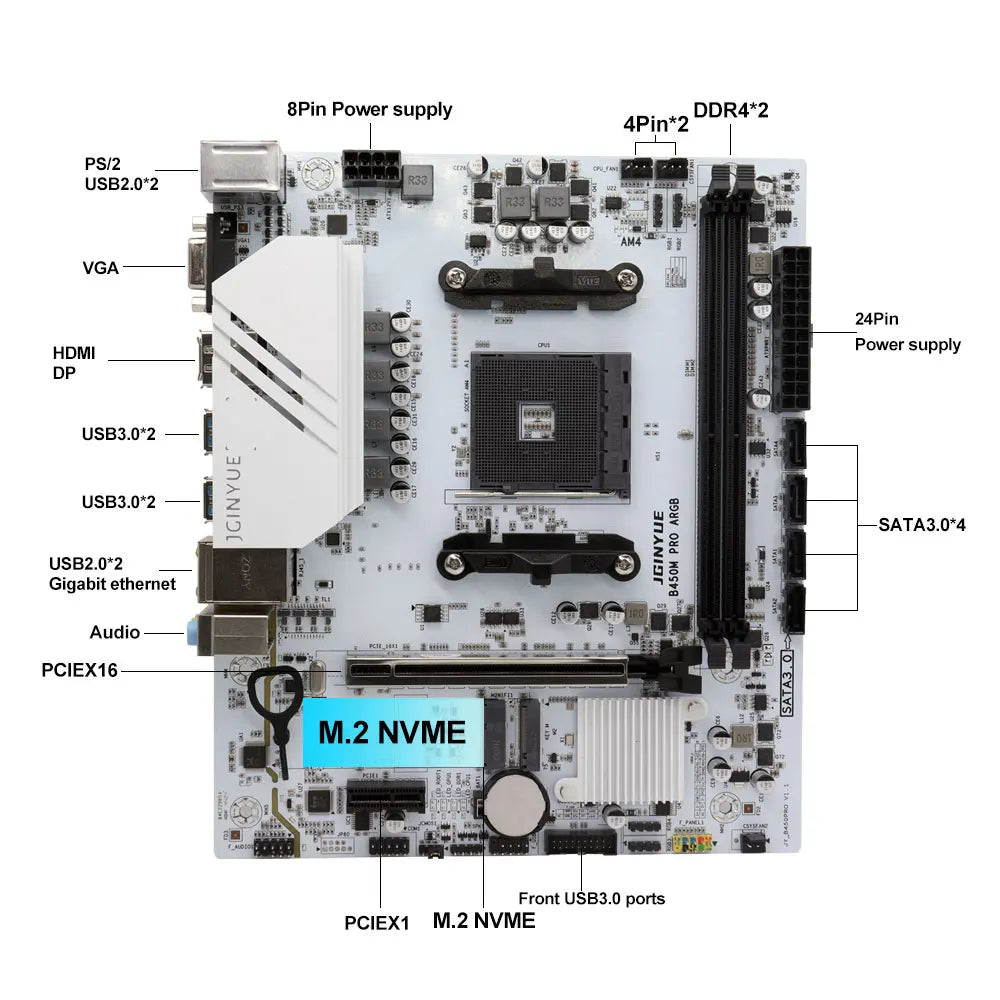

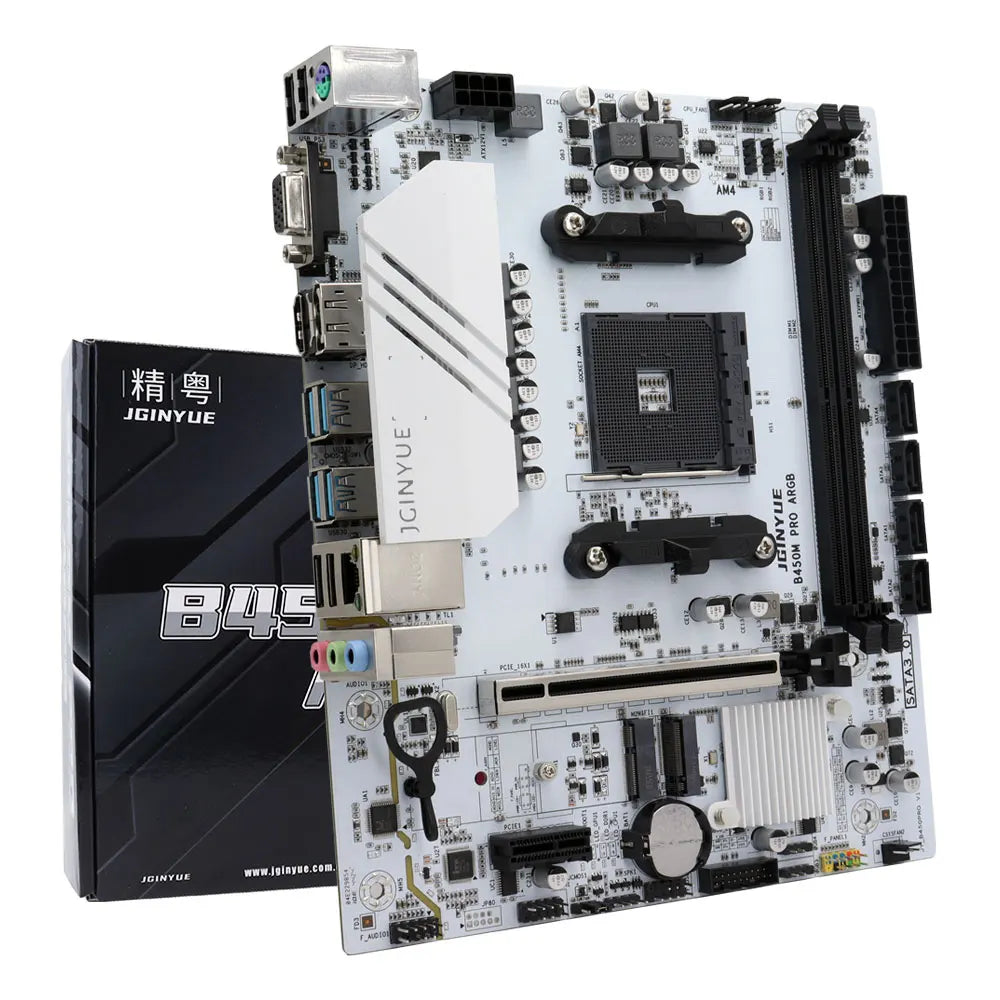

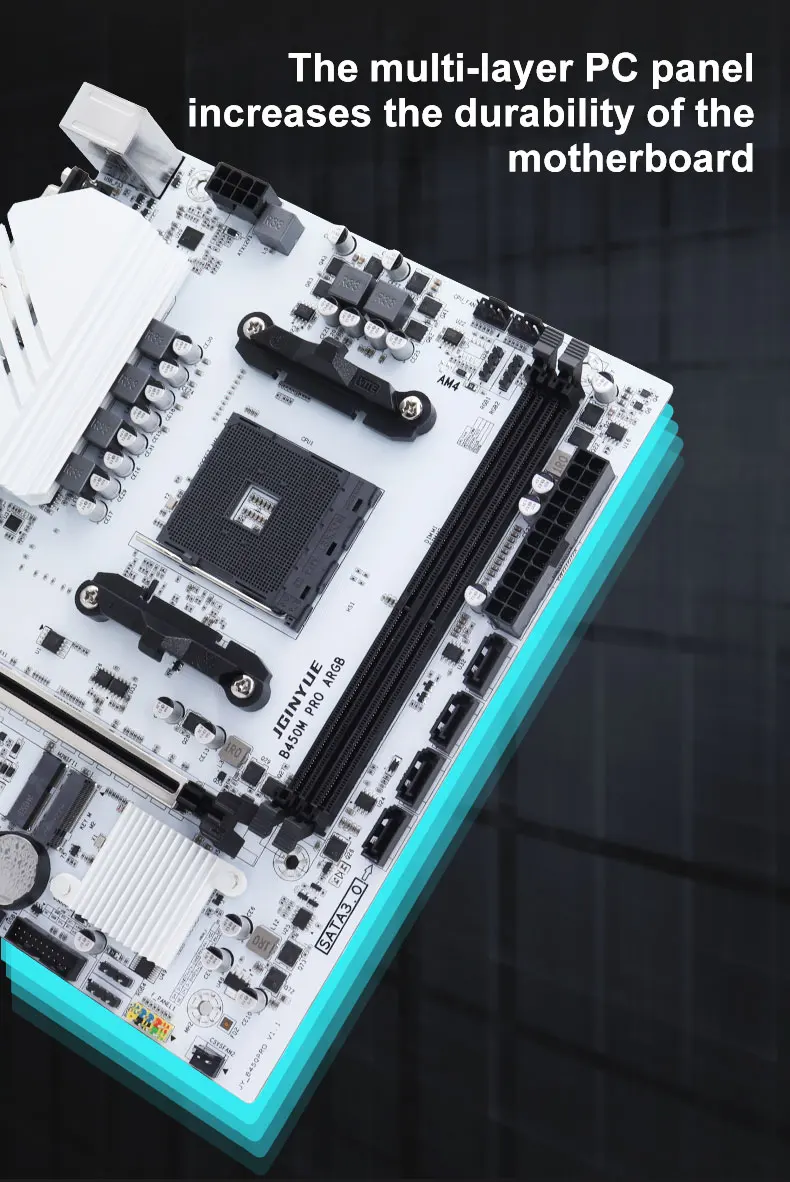

JGINYUE B450M PRO motherboard

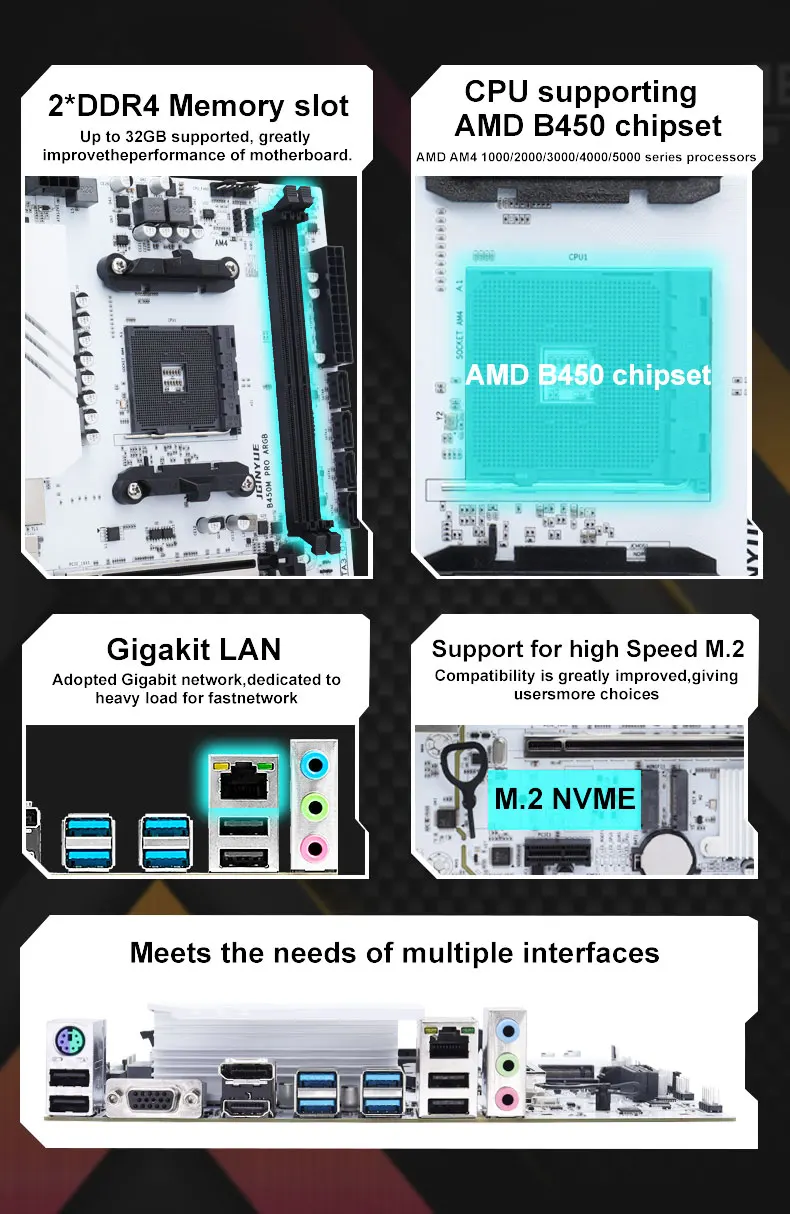

Supports AMD AM4 1000/2000/3000/4000/5000 series processors

Supports dual channel 2 DDR4 memory slots with a maximum capacity of 32GB

Memory frequency: 2133/2400/2666/3000/3200/3600/4000MHz (supports XMP technology/actual situation may vary depending on different CPU and memory configurations)

Display interface: 1 HDMI, 1 DP, 1 VGA interface

4 SATA3.0, 1 M.2 NVME protocol 3.0 interface

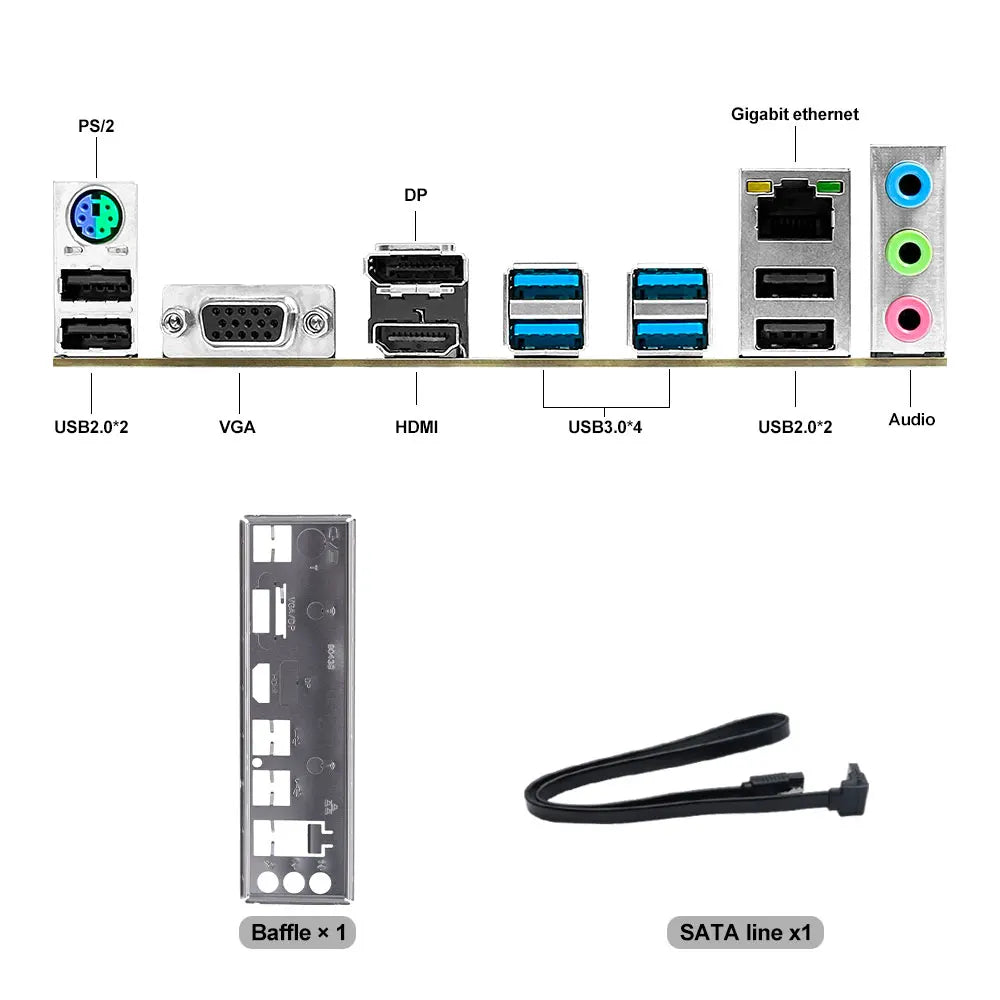

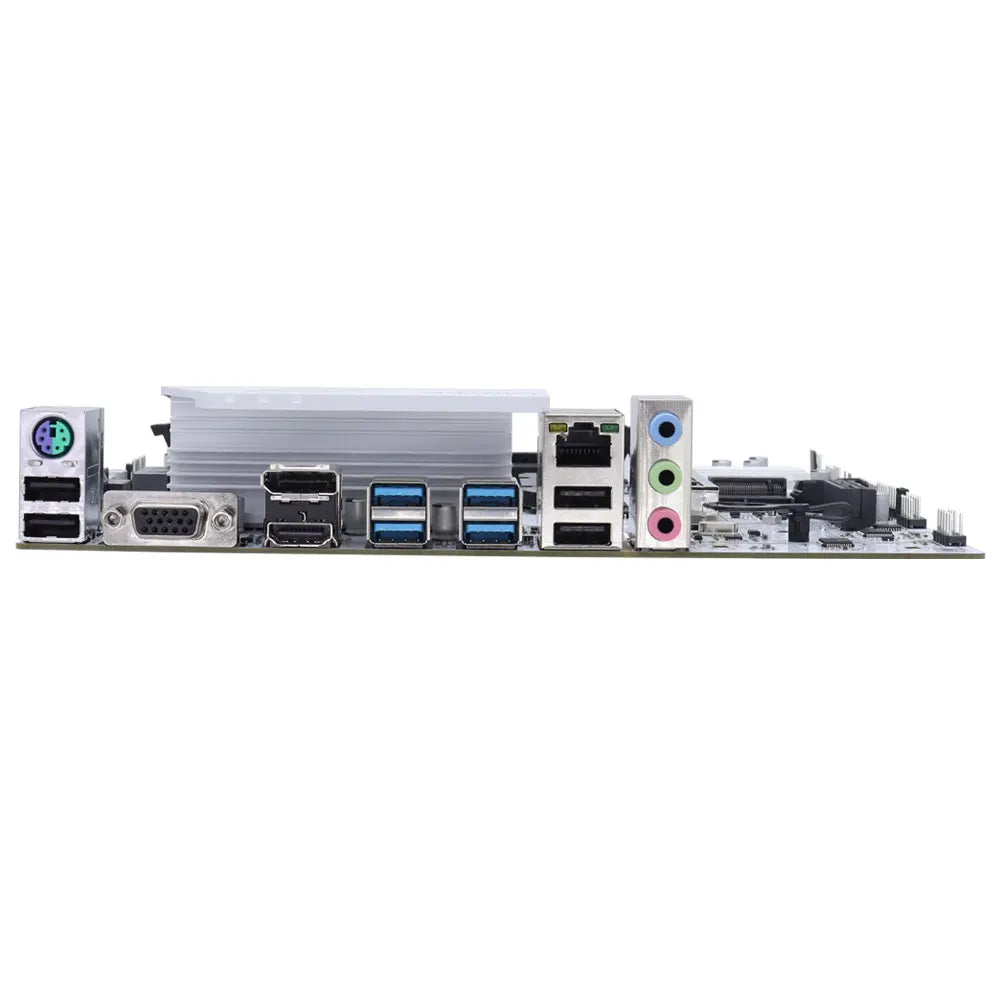

4 USB 3.0 and 4 USB 2.0 in the rear; Front 1 USB 3.0, 1 USB 2.0

1 PCI Express x16 slot 3.0
