SPECIFICATIONS

Application: Desktop,Server,Workstation,Mining,Industrial Computer

Back I/O Ports: 1x RJ45

Battery Included: Yes

Brand Name: JGINYUE

Chipset: Intel X99

Chipset Manufacturer: Intel

Maximum Ram Capacity: 256GB

Number of PCI: 0

Onboard LAN: 1x RJ45

PCI - E standards: PCI-E 3.0

Package: Yes

Processor compatibility: Intel Xeon E Series

RAID Supported: No

Socket Type: LGA 2011-3

Special Features: None

Storage Interface Type: U.2,SATA,SATA 2,M.2 (NVMe)

Support Memory Type: DDR4 REG

Usage Scenario: Enthusiast & Overclocking,Gaming,Office,Design,Workstation,Scientific Computing

With CPU: No

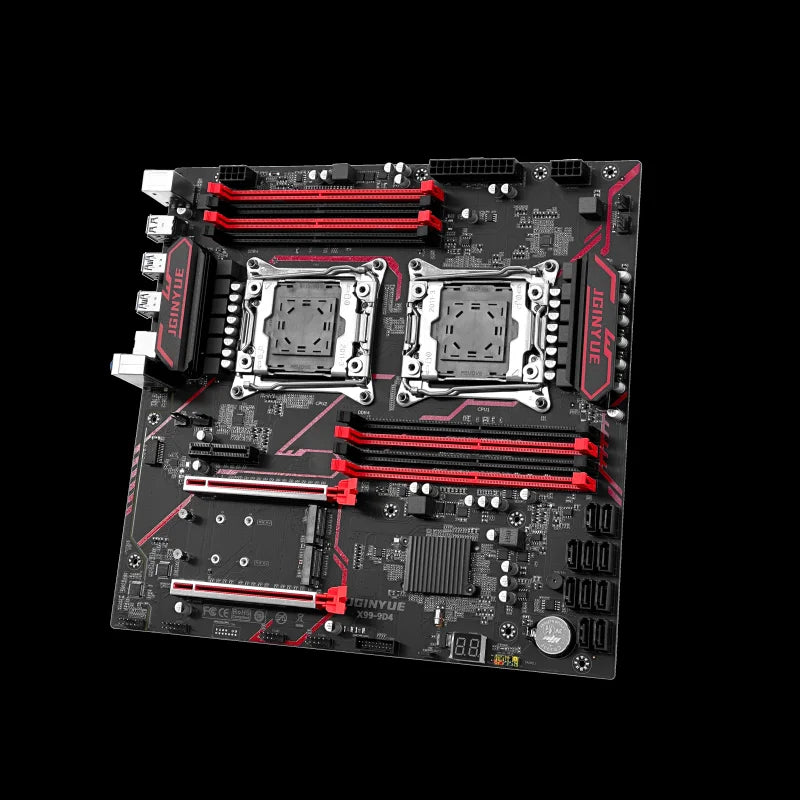

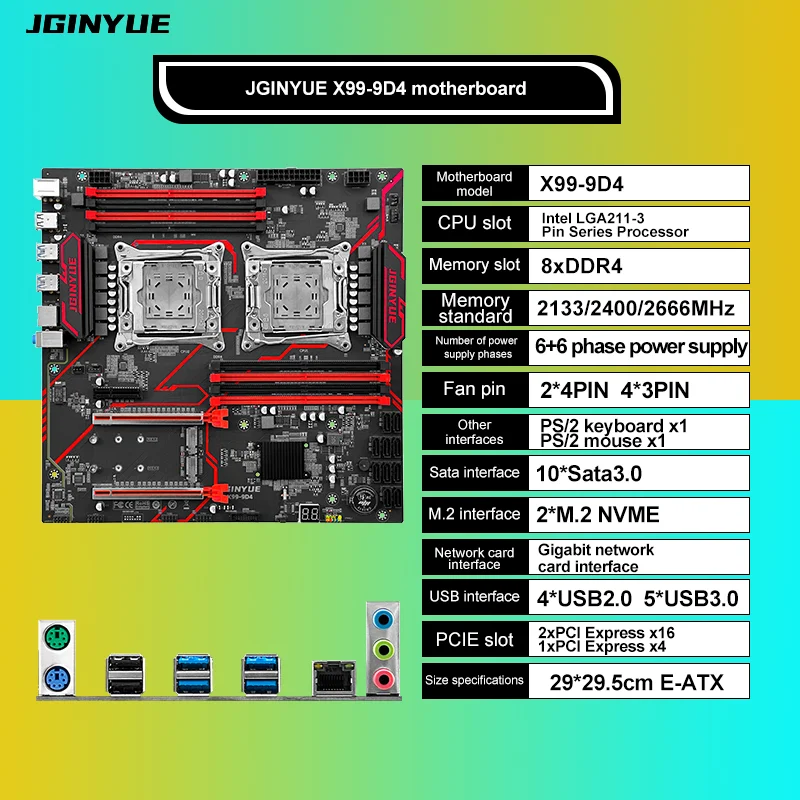

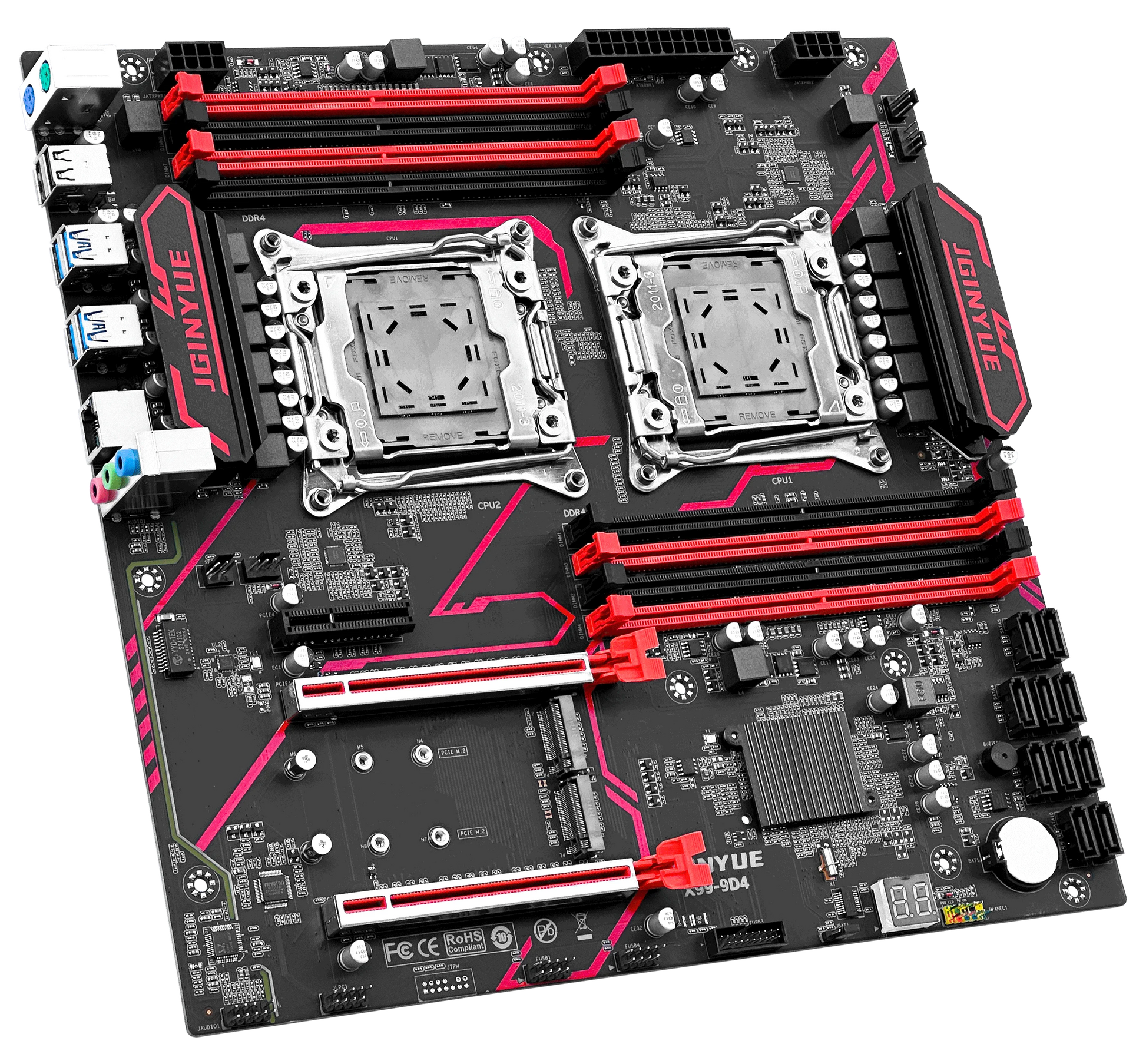

JGINYUE X99-9D4 motherboard

Support lntel LGA211-3 pin series processors

DDR4 * 8 memory slot

Desktop ECC server memory

6+6 phase power supply

Front USB 3.0 * 1 USB 2.0 * 2 Rear USB 3.0 * 4 USB 2.0 * 2

SATA3.0*10

2*PCI-E x16 1*PCI-E x4

X99 chipset

1 Gigabit Ethernet card interface

2 * M.2 supports NVME protocol

Chicken blood BIOS supports E5 V3 series processors; E5 V4 is not supported

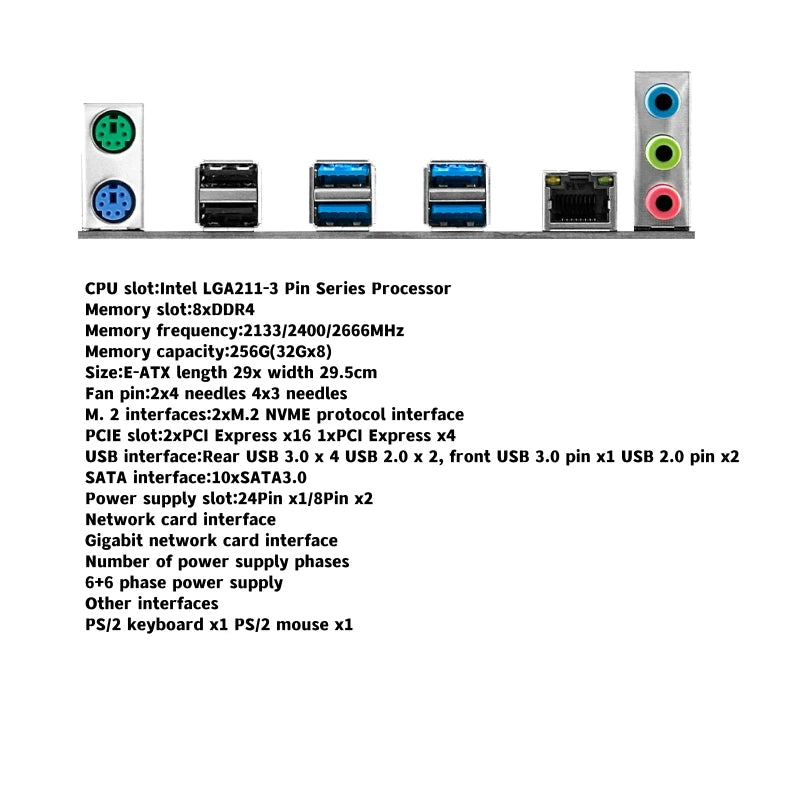

model
:X99-9D4

CPU slot
:Intel LGA211-3 Pin Series Processor

Memory slot
:8xDDR4

Memory frequency
:2133/2400/2666MHz

Memory capacity
:256G(32Gx8)

Specification and size
:E-ATX length 29x width 29.5cm

Fan pin
:2x4 needles 4x3 needles

M. 2 interfaces
:2xM.2 NVME protocol interface

PCIE slot
:2xPCI Express x16 1xPCI Express x4

USB interface
:Rear USB 3.0 x 4 USB 2.0 x 2, front USB 3.0 pin x1 USB 2.0 pin x2

SATA interface
:10xSATA3.0

Power supply slot
:24Pin x1/8Pin x2

Network card interface
:Gigabit network card interface

Number of power supply phases
:6+6 phase power supply

Other interfaces
:PS/2 keyboard x1 PS/2 mouse x1
