SPECIFICATIONS

Battery Capacity(mAh): -

Battery Included: No

Brand Name: QYT

Certification: CE,FCC

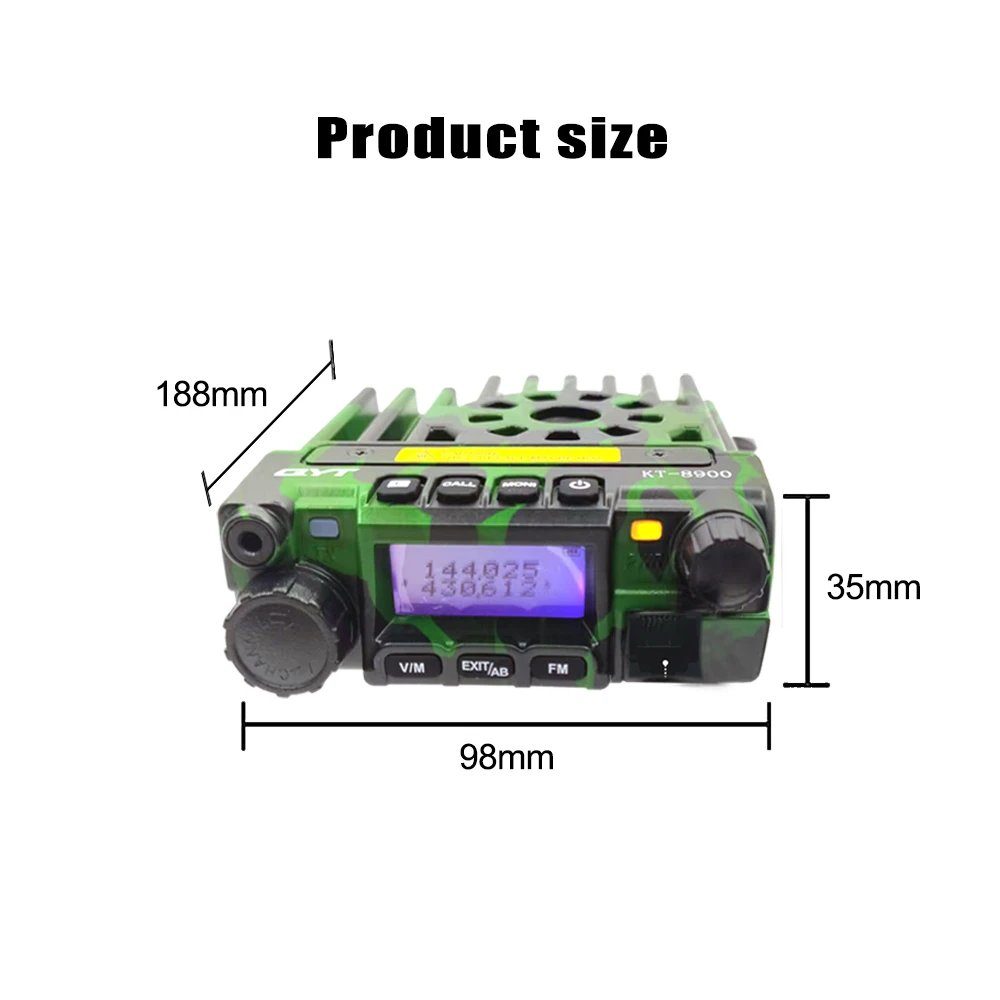

Dimensions: 98(W) x 35(H) x 118(D)mm

Frequency Range: VHF:136-174MHz & UHF:400-480MHz

Material: Plastic+metal

Maximum Range: 10km-50km

Model Number: KT8900 black

Output Power(w): 10w-25w

Qyt Model: analog

Storage Channel: 200

Use: Motor vehicle

Walkie Talkie Type: Car

Waterproof / Water-Resistant: IP55

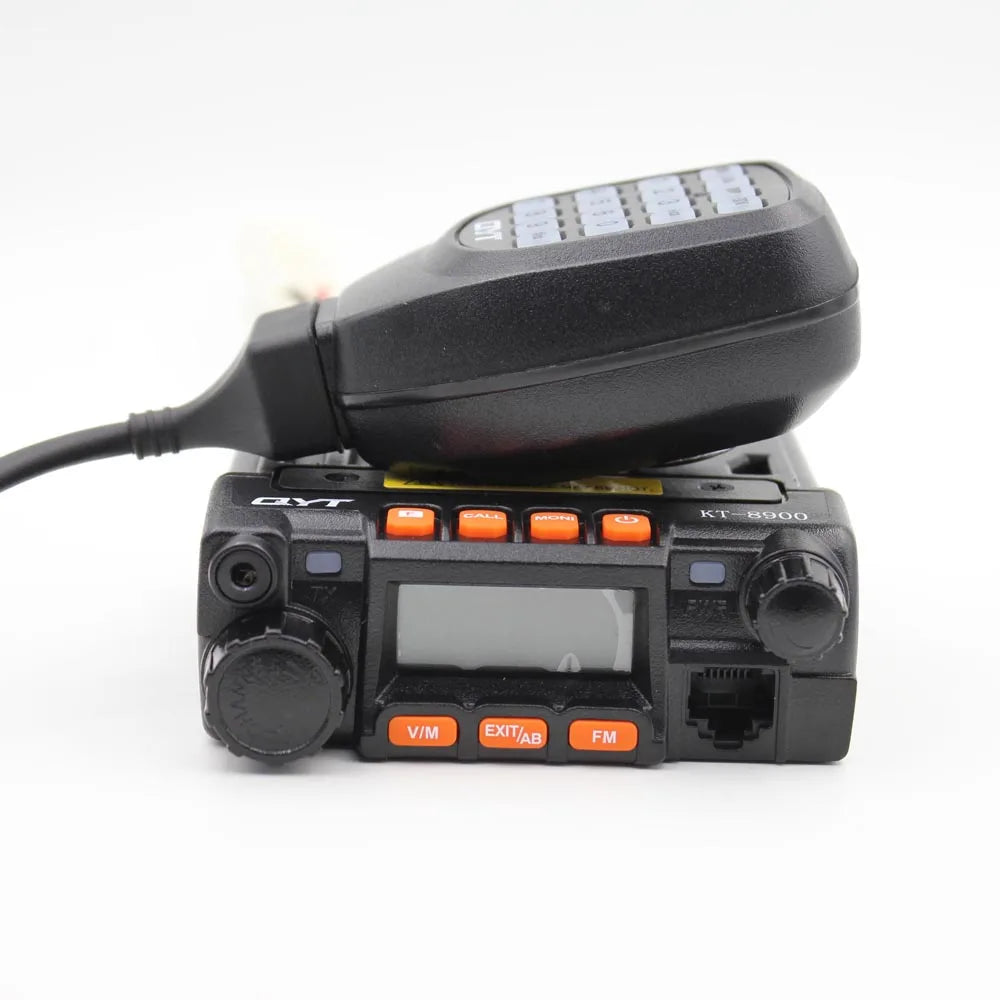

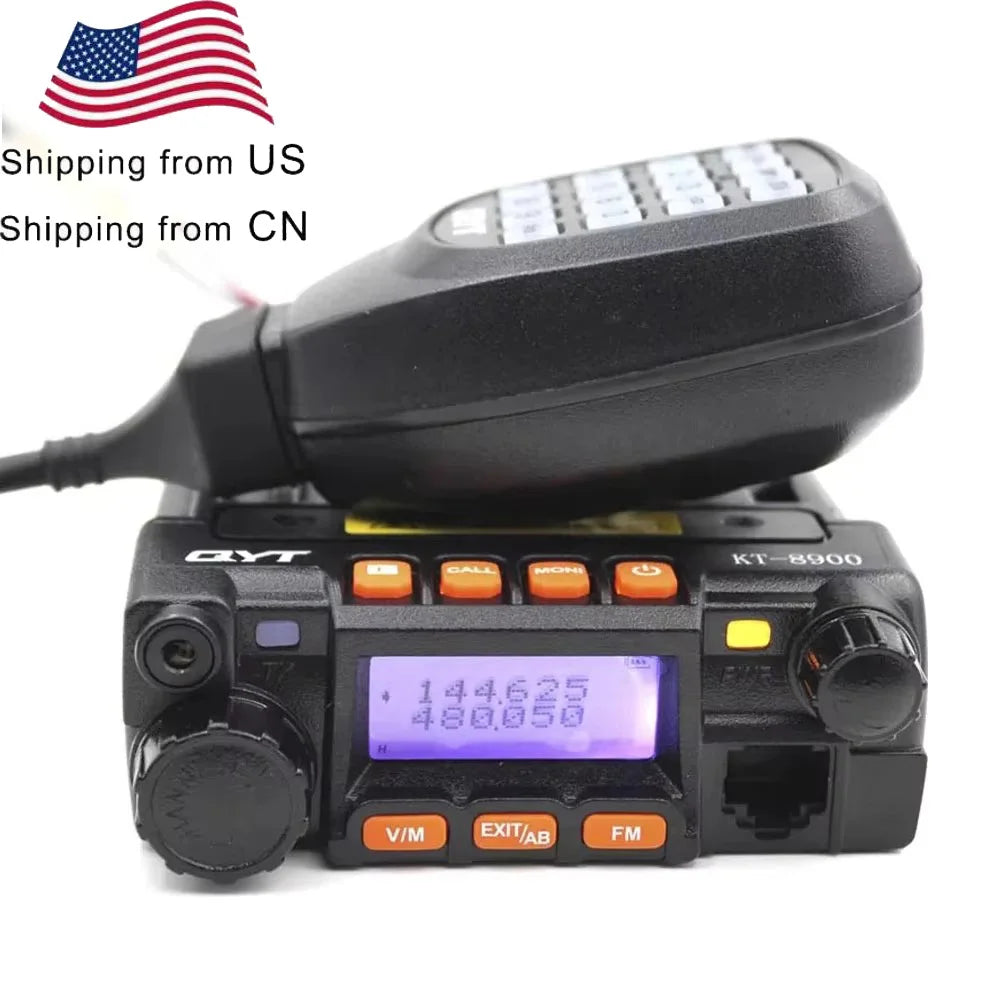

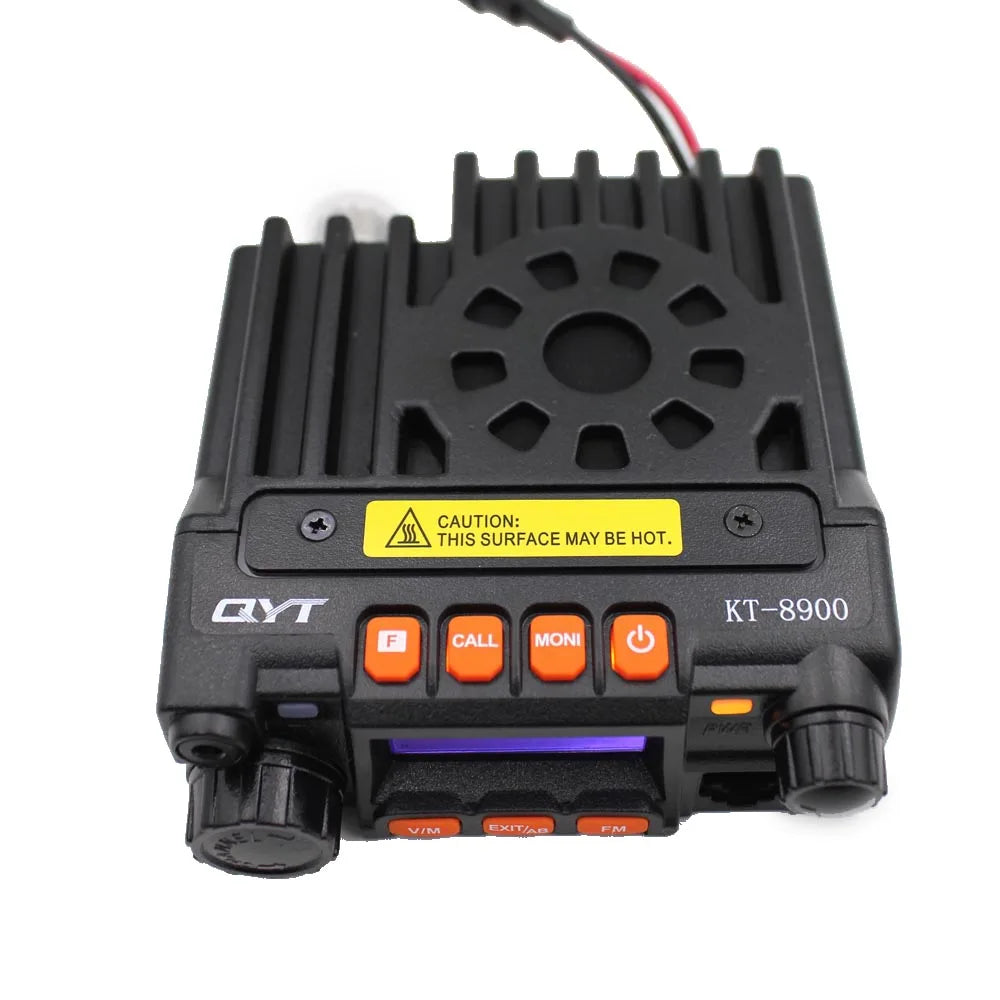

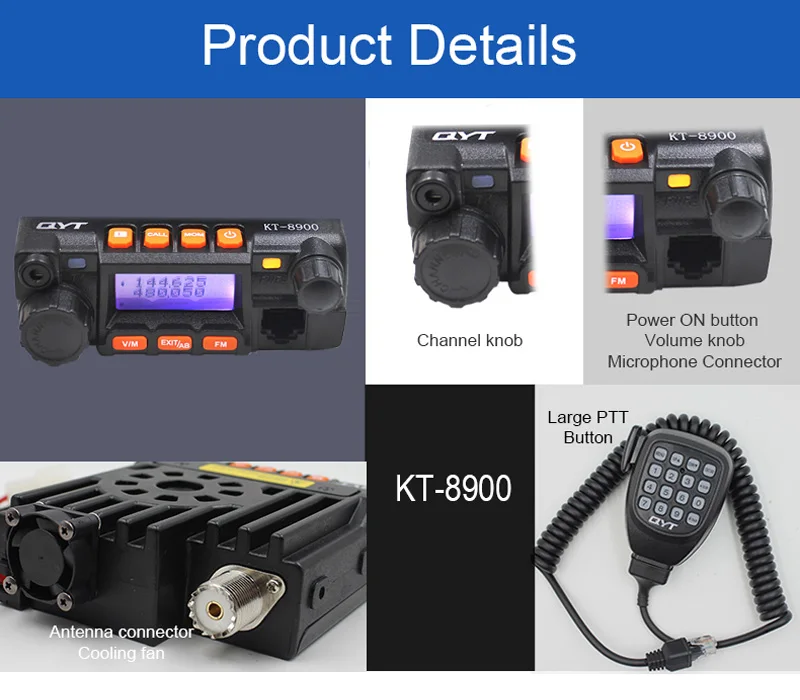

QYT KT-8900 Mini Car Radio Dual band 136-174&400-480MHz

25W High Power CTCSS / DCS walkie talkie

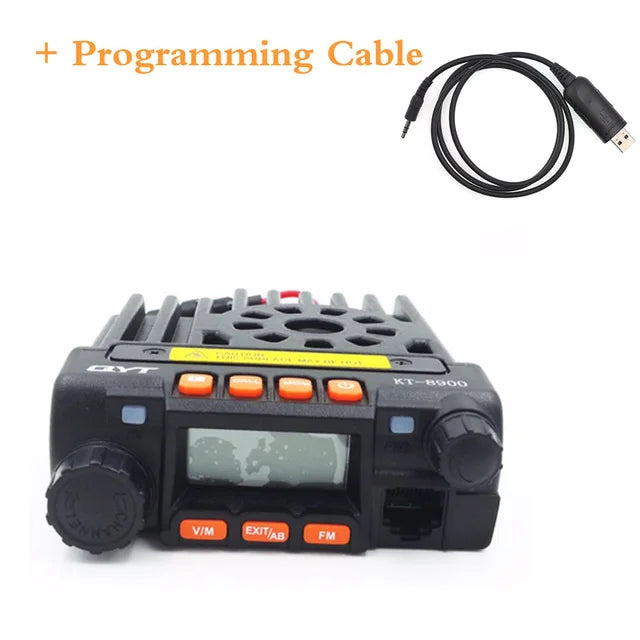

Note: if you need the software, please contact us.

Features & Functions
1. Frequency Range: VHF 136-174MHZ UHF:400-480MHz

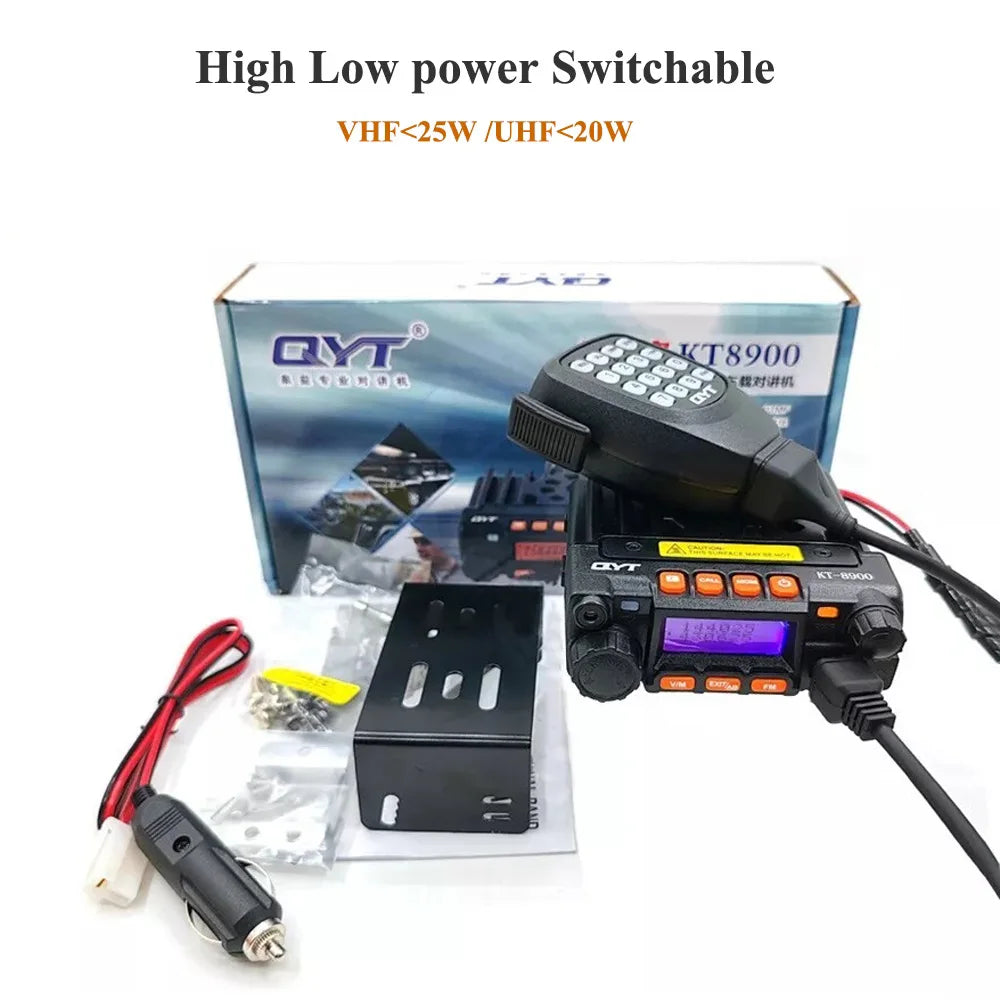

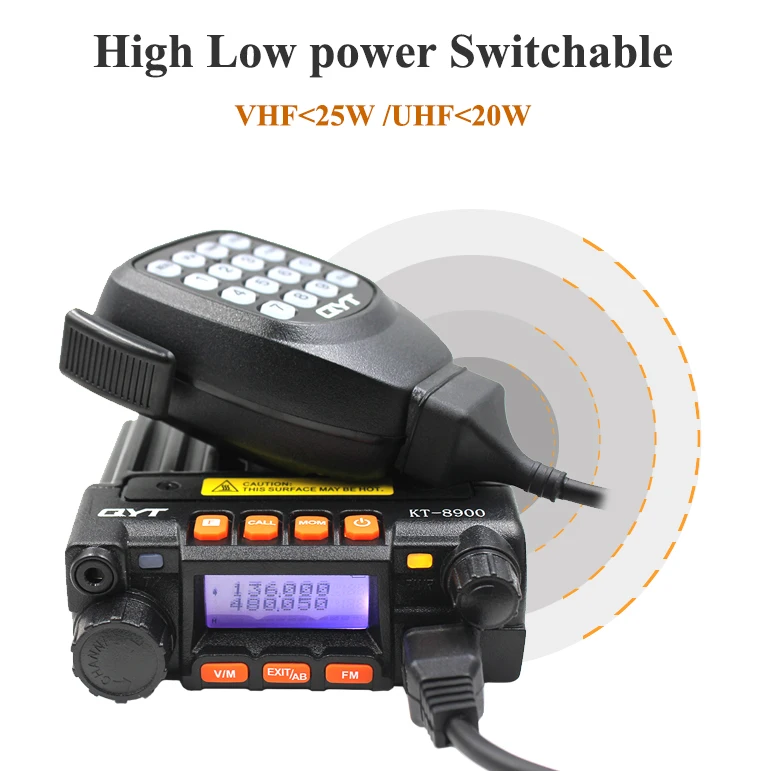

2. Output Power: VHF 25Watt, UHF 20Watt
3. MSK/5Tone/2Tone/DTMF/CTCSS/DCS
4. Optional signal setting
5. FM Radio Function
6. PTT ID
7. Auto Lock
8. Remote stun
9. Remote Kill
10. Channel Name set
11. 200 Channels

Specification

Channel Spacing: 25KHz 20K 12.5
Frequency Stability: 2.5ppm
Operating Temperature: -20 ~ + 60Celsius
Operating Voltage: 13.8V DC ± 15%
Dimension (HxWxD): 98(W)*35(H)*118(L)
Weight (with bracket): 1kg
Receiver
Sensitivity: 0.25V / 0.35V
Channel choice:>=70dB />=60dB
Inter modulation: >=65dB/>=60dB
Inter-modulation Rejection: >=60dB/ >=65dB
Spurious Rejection: >=70dB />=70dB
Audio Distortion: <=5%
Audio output power:>=2W@10%

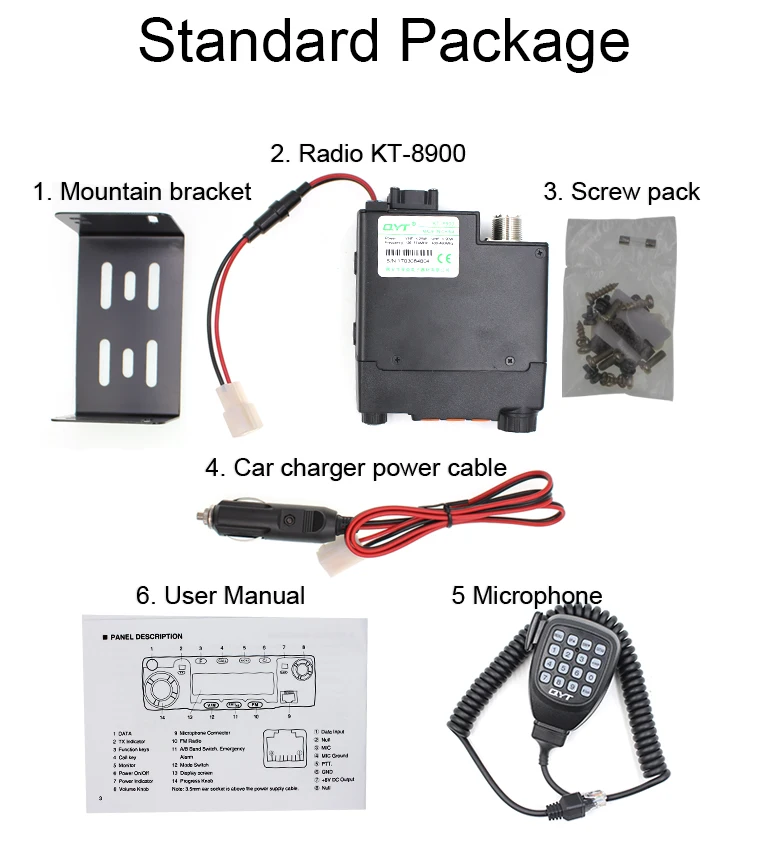

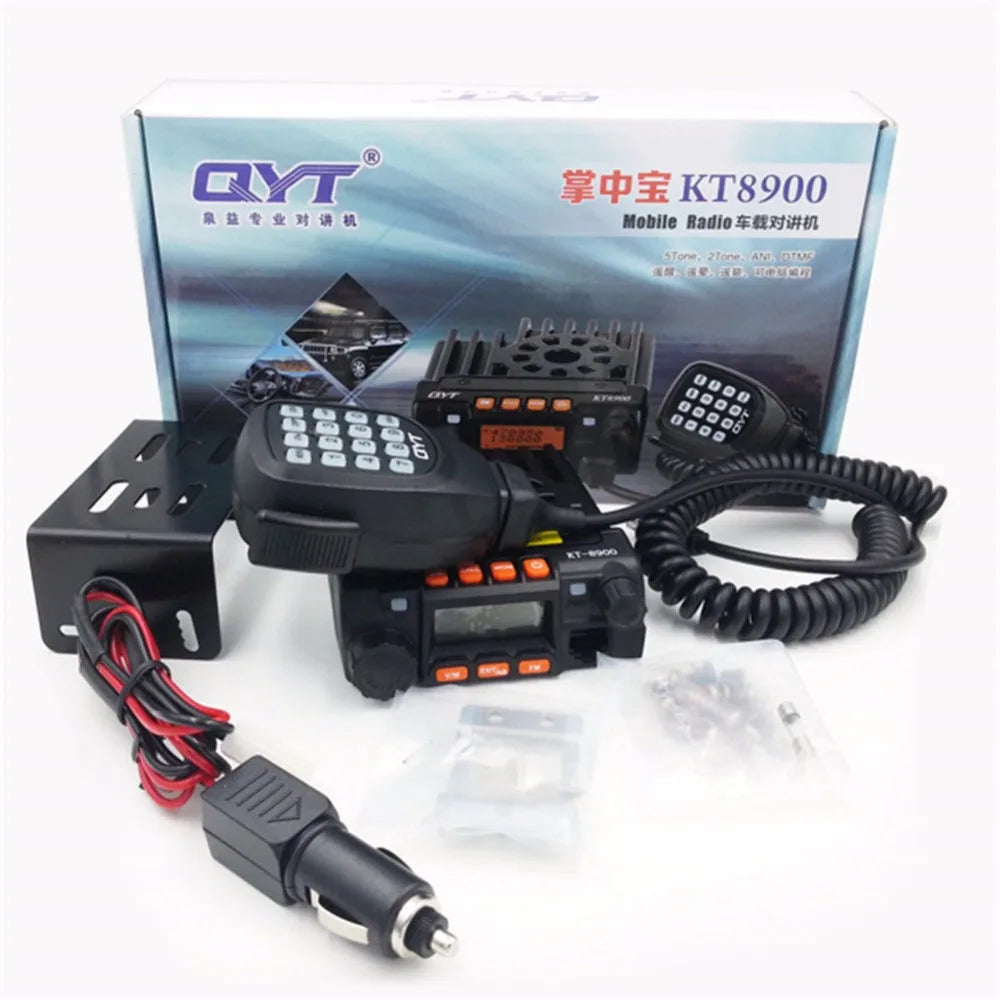

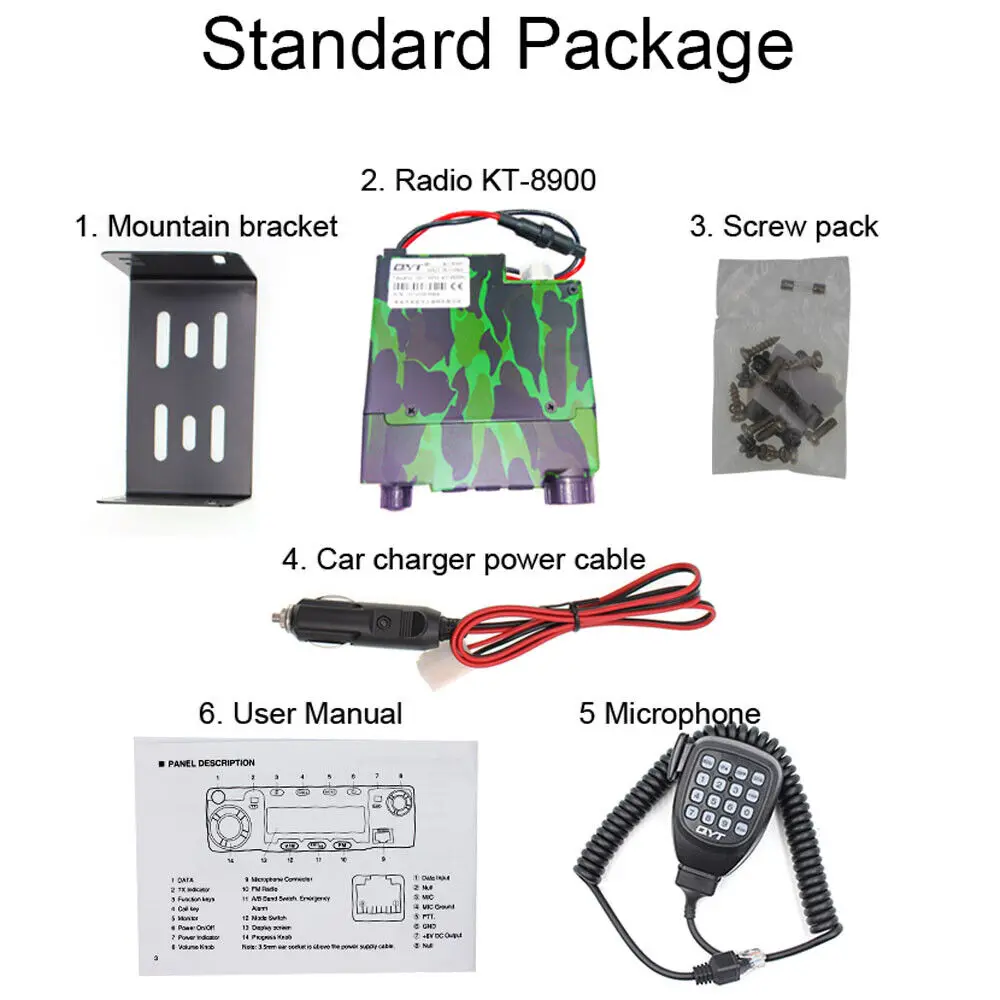

Package contents

1* Mobile Transceiver

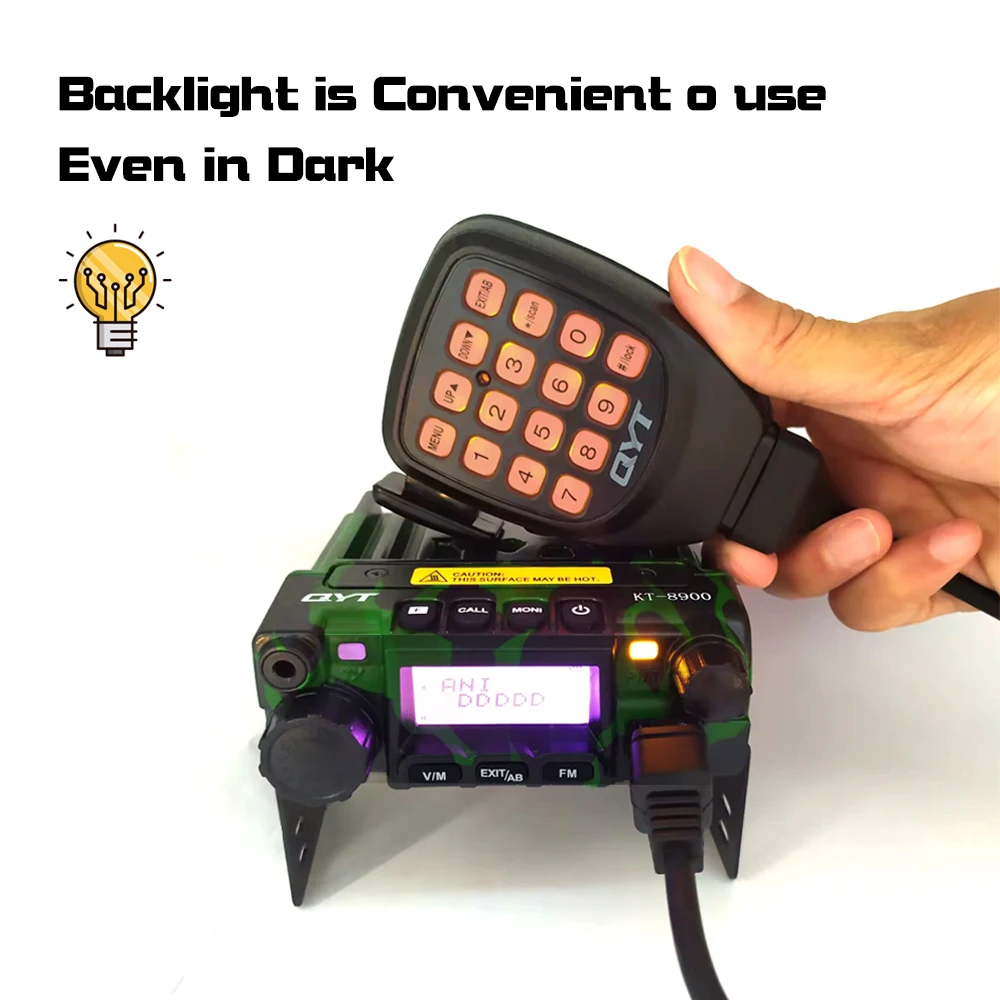

1* Microphone with DTMF Keypad

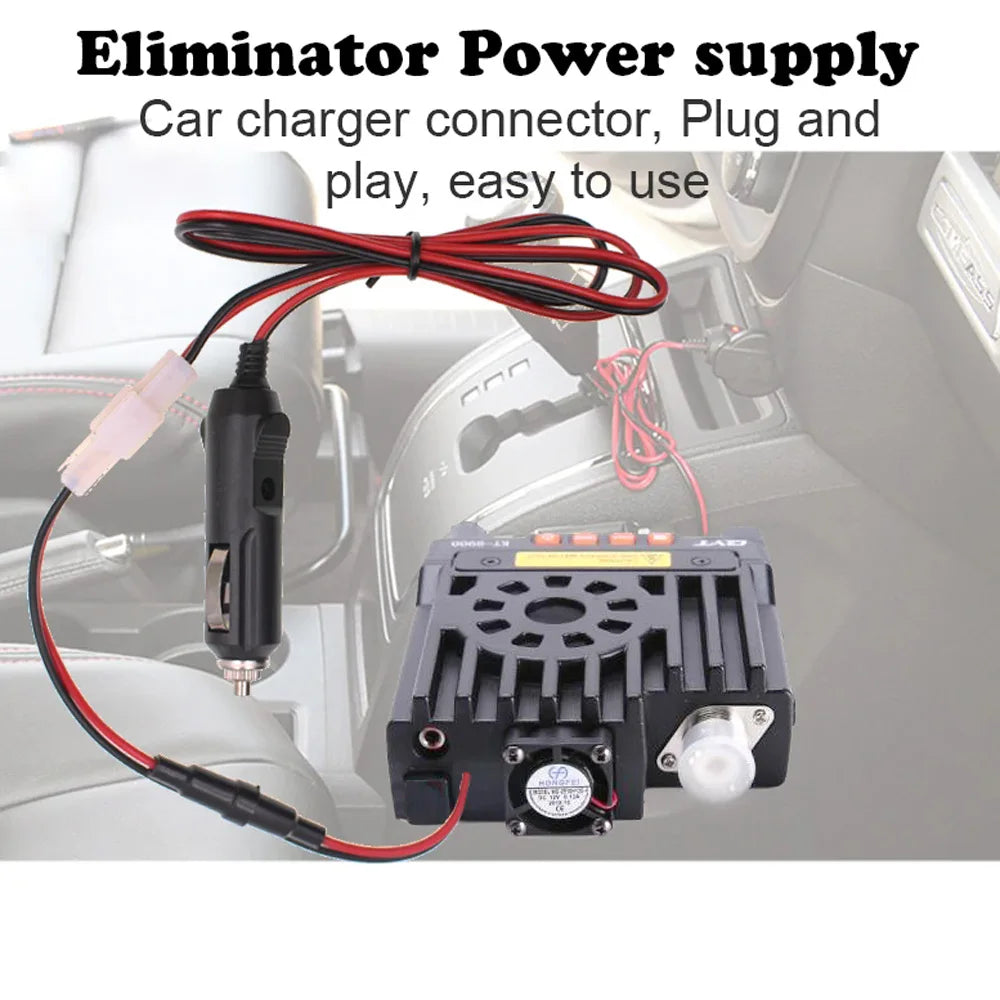

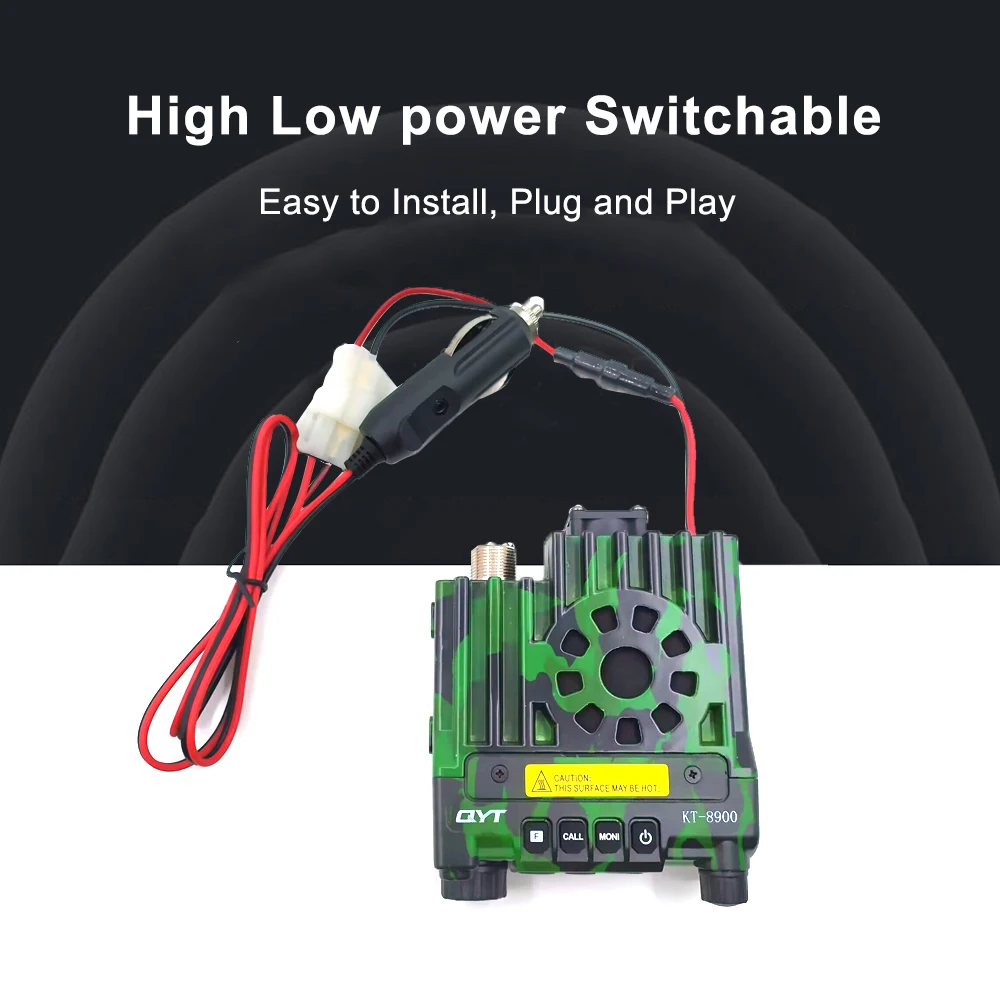

1* Car Charger
1* Mounting Bracket(Fuse and Screws included)
1* User Manual
