SPECIFICATIONS

Battery: 3.7V 4000mAh lithium battery

Brand Name: SKYSHL

Certification: CE

Connector Type: FC/UPC

DataStorage: 800000 groups of curve

Dimension: 176*85*42mm/6.93*3.3*1.65Inches

Display: 3.5inches HD TFT Color screen

EDZ/ADZ: 2.5m/6m

Fiber Type: Single Mode

Interface: Compatible with APC & UPC SC+ST+FC+LC

Light Source(OLS)/Optical Loss Test: 1310nm+1550nm

Max Testing Distance: 60km

Model Number: SS303T-2A1

Optical Power Meter(OPM): 800nm~1700nm; -50~+26dB

RJ45 Cable Tracker: >300m

Size: 176*85*42mm

Test Wavelength: 1310nm+1550nm

The Max Dynamic Range: 24dB+22dB

VFL: 10km

Weight: 0.41kg/0.9LB(Include Battery)

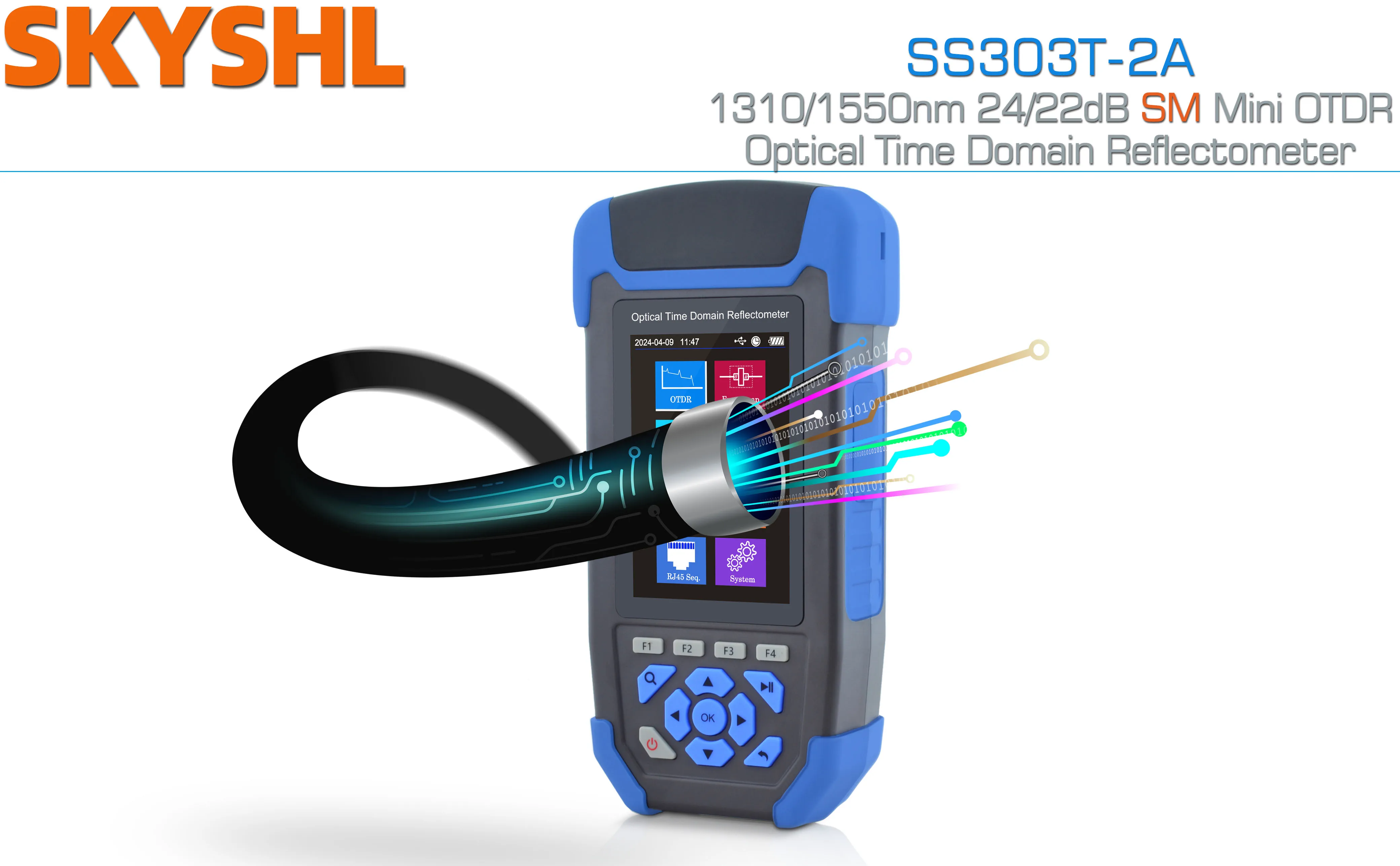

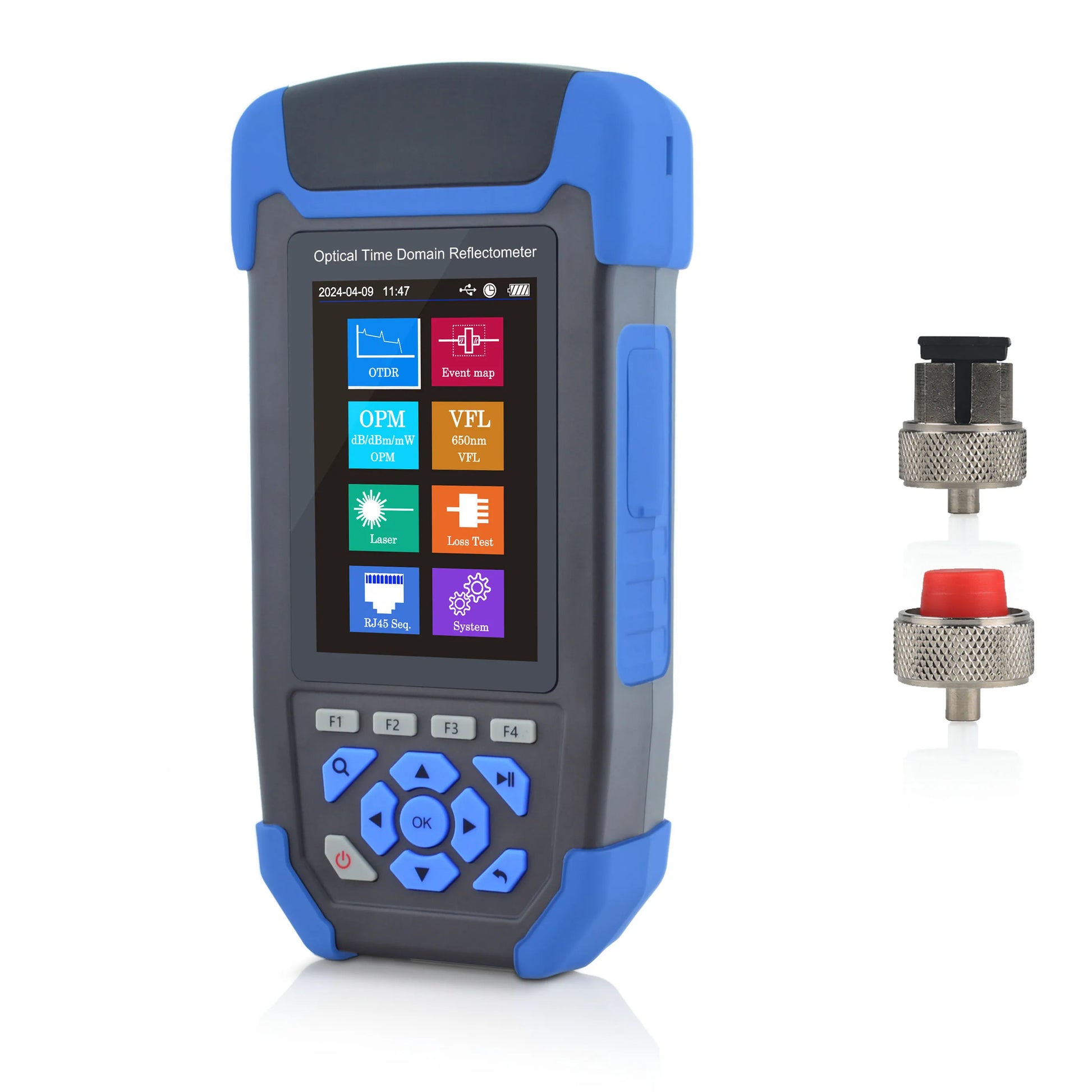

SKYSHL 1310nm/24dB+1550nm/22dB SM Fiber OTDR Tester

SKYSHL provides a new Optical Time Domain Reflectometer(OTDR)--SS303T series. They are used to measure the fiber length and overall optical attenuation in a circuit. The analyzed data provides insight into the integrity of the fiber and any passive optical components (such as connectors, splices, splitters, and multiplexers) transmitted along the cable path.

SKYSHL 1310nm+1550nm 24dB+22dB SM Fiber OTDR Key Features:

• 1310nm+1550nm 24dB+22dB OTDR tester(Max Test Distance:60Km).

• The body of the SS303T is very small, and it is very convenient to carry outdoors.

• 3.5-inch TFT high-definition color display.

• 3.7V/4000mAh lithium battery, continuous 11-15 hours

• Integrate OPM, VFL, OLS,Optical Loss Test,RJ45 Cable Tracker and Event map(Graphical analysis).

• One touch operation, automatic analysis, and tailored OTDR user interface for different skill level.Very short Event dead zone(2.5m) and Attenuation dead zone(6m).

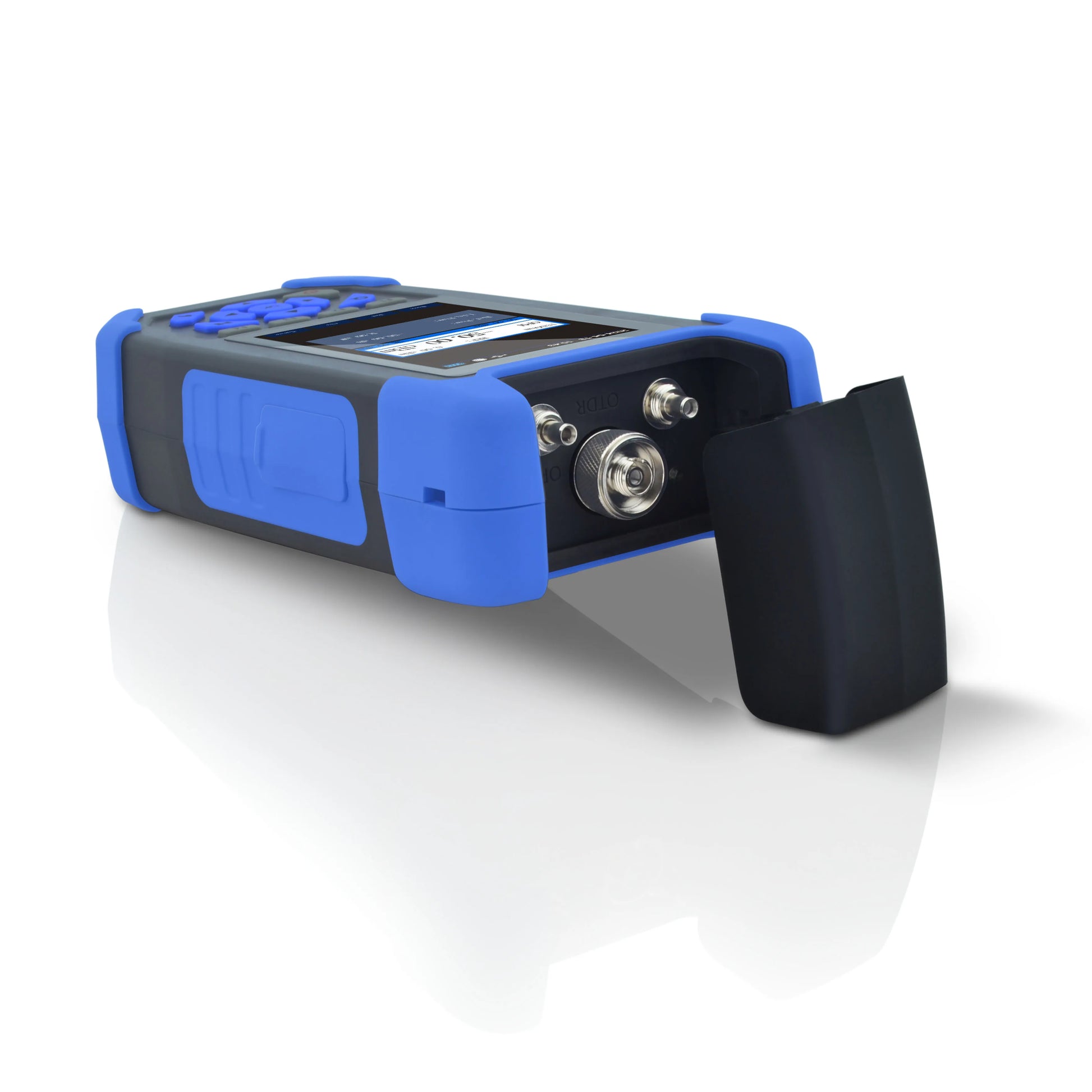

• Compatible interfaces: 2.5mm universal interface,SC, FC, ST, LC UPC&APC adapter.

• Automatic OTDR, Manual OTDR, Event map,Smart Graphical analysis of fiber optic connections

• Support for SOR formats.

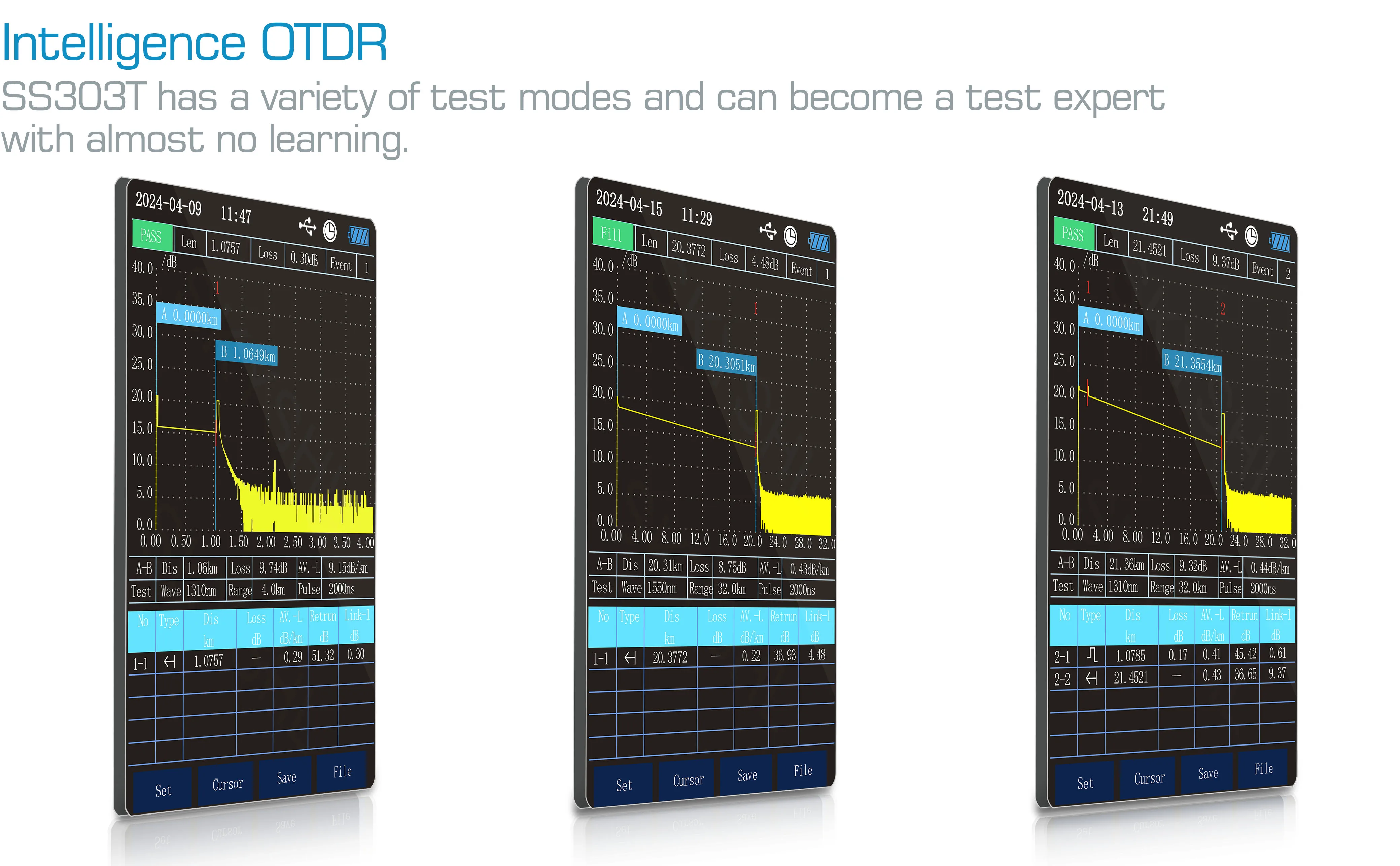

Smart OTDR

The Auto test lets you take advantage of the full power of your OTDR—bringing automation to a new level and enabling untrained technicians to become test experts in no time.

With one click, the unit automatically performs link recognition, sets the optimal parameters and launches multiple acquisitions and analyses—at multiple wavelengths—consolidating the results obtained for every link section and every network element. Get accurate information right away on each link element and export it to a single report.

Of course, you can also perform manual testing according to your actual optical fiber network. The parameter setting is also very simple, and it only takes a few steps to complete, such as wavelength,test range, pulse width, test time, etc. The curve obtained by manual test more satisfies your actual requirements.

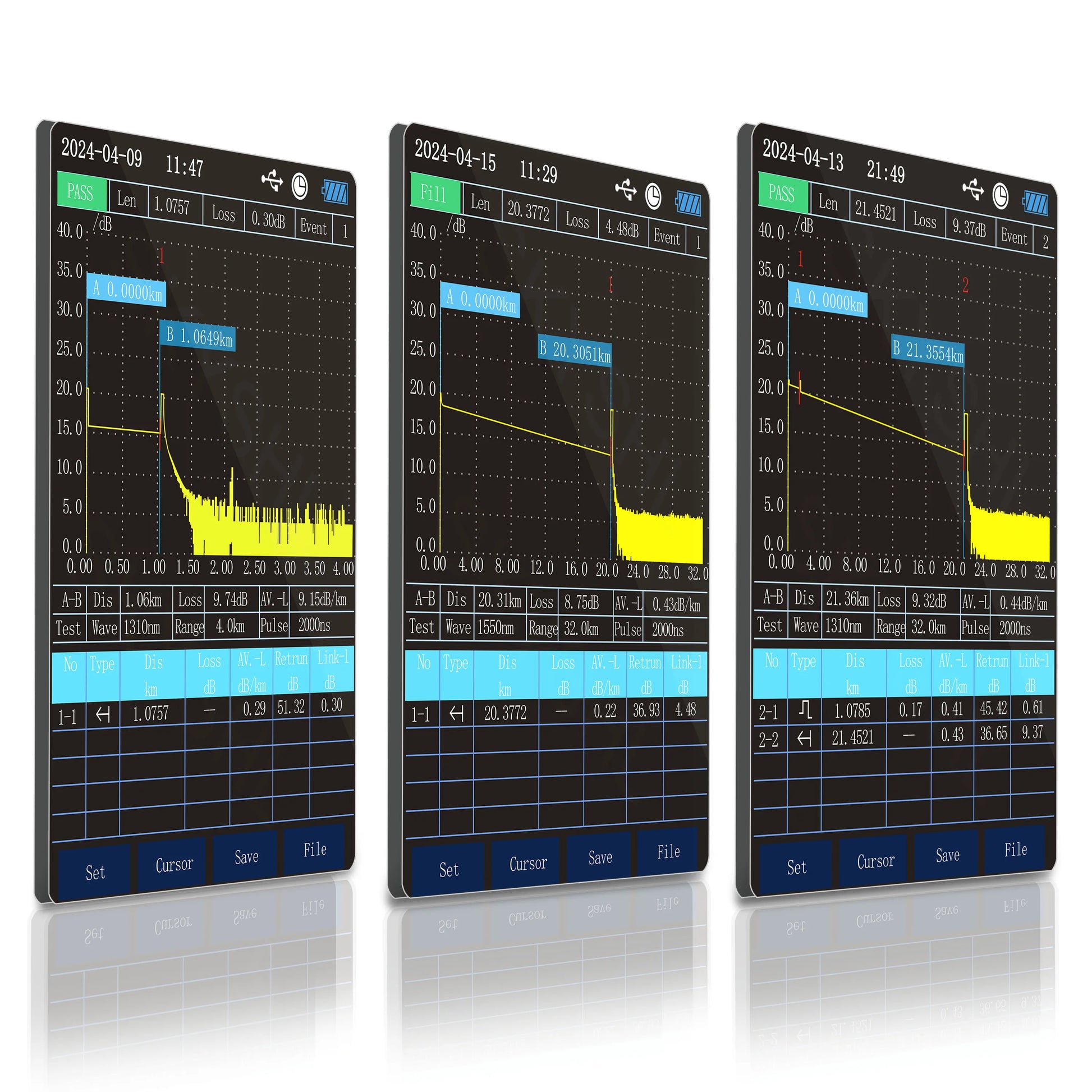

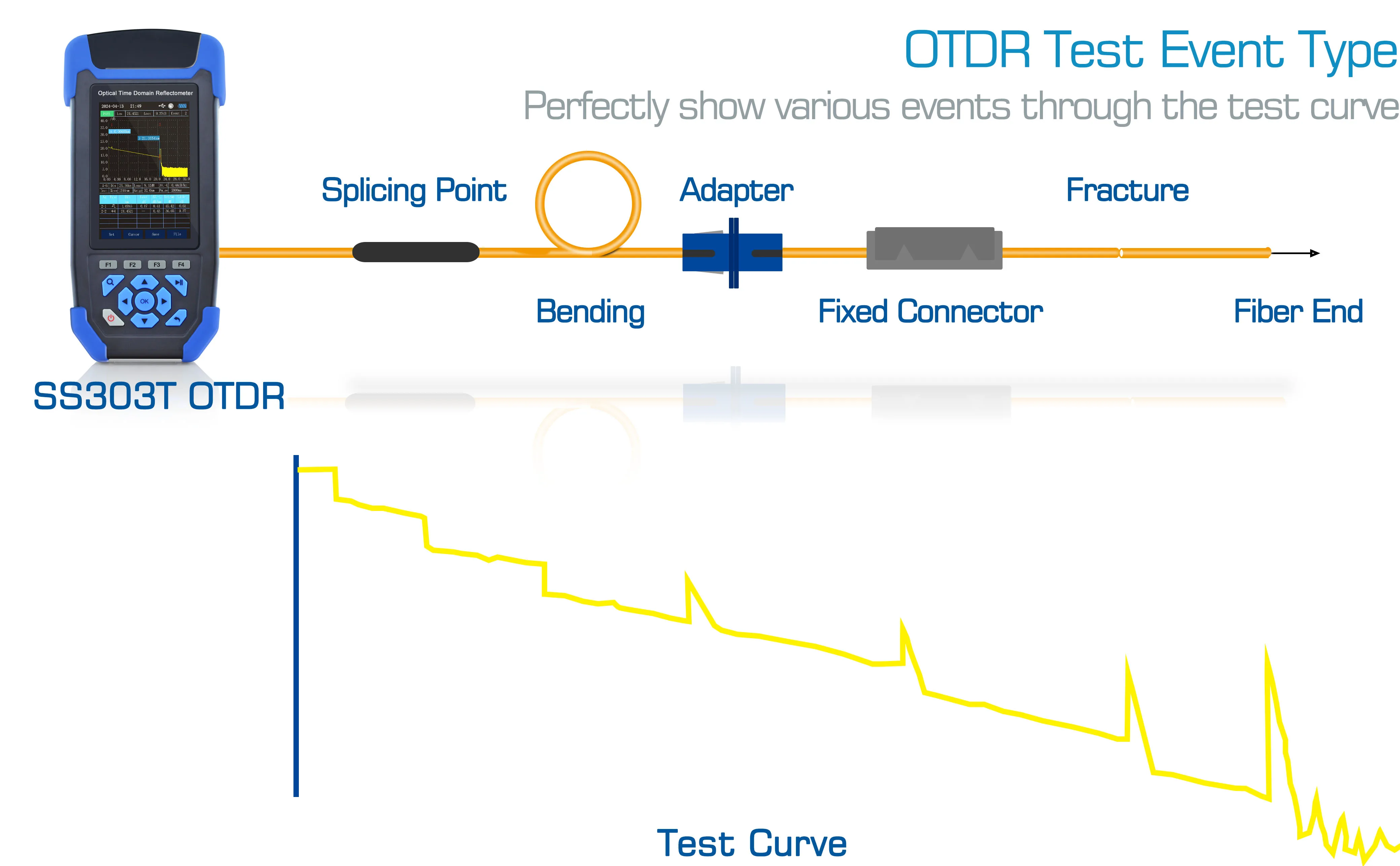

OTDR Test Curve and Event Type

A picture is worth a thousand words, and the OTDR picture (or "trace") takes a lot of words to describe all the information in it!

The slope of the fiber trace shows the attenuation coefficient of the fiber and is calibrated in dB/km by the OTDR. Connectors and splices are called "events" in OTDR jargon. Both should show a loss, but connectors and mechanical splices will also show a reflective peak. The height of that peak will indicate the amount of reflection at the event.

Reflective pulses can show you the resolution of the OTDR. You cannot see two events closer than is allowed by the pulse width. Generally longer pulse widths are used to be able to see farther along the cable plant and narrower pulses are used when high resolution is needed, although it limits the distance the OTDR can see.

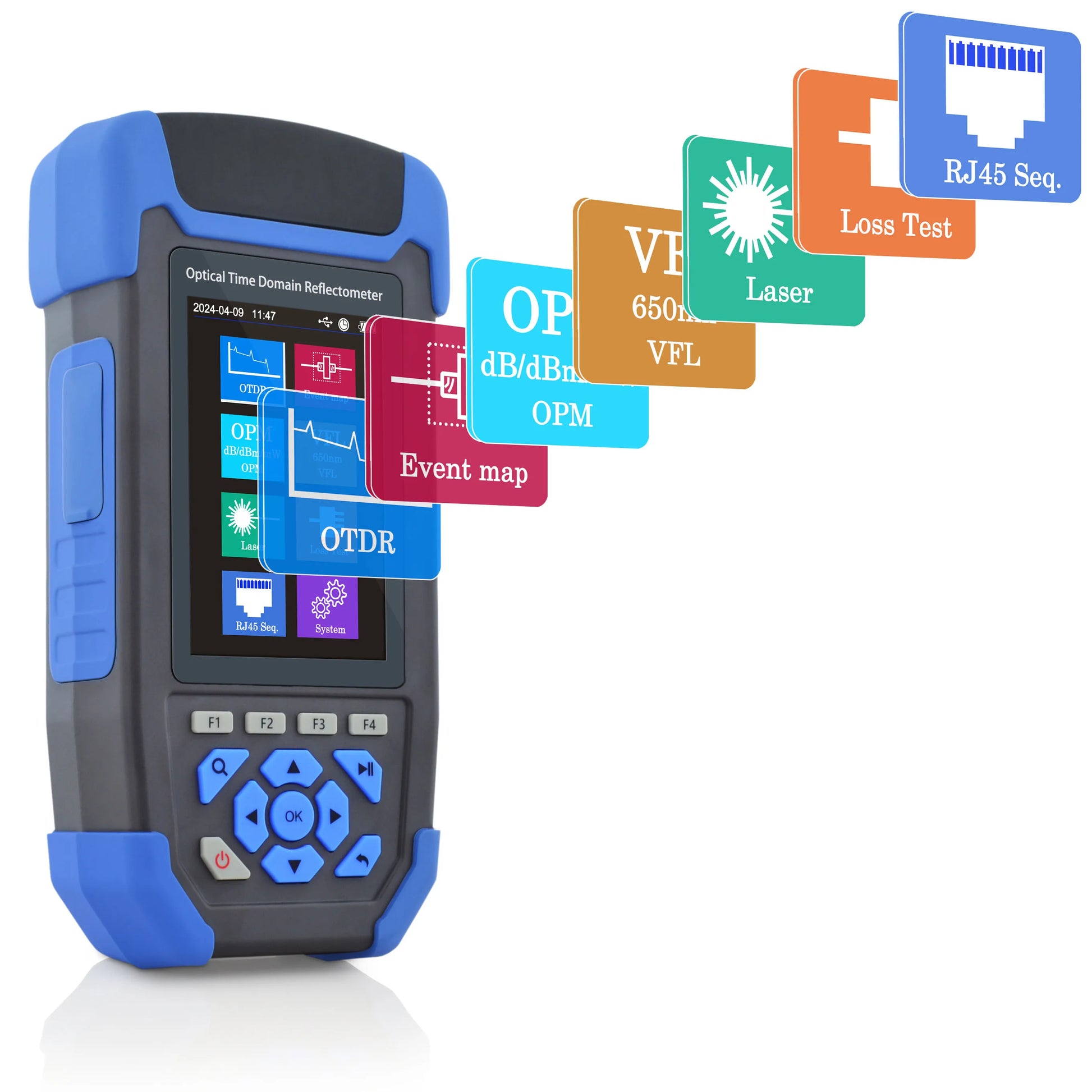

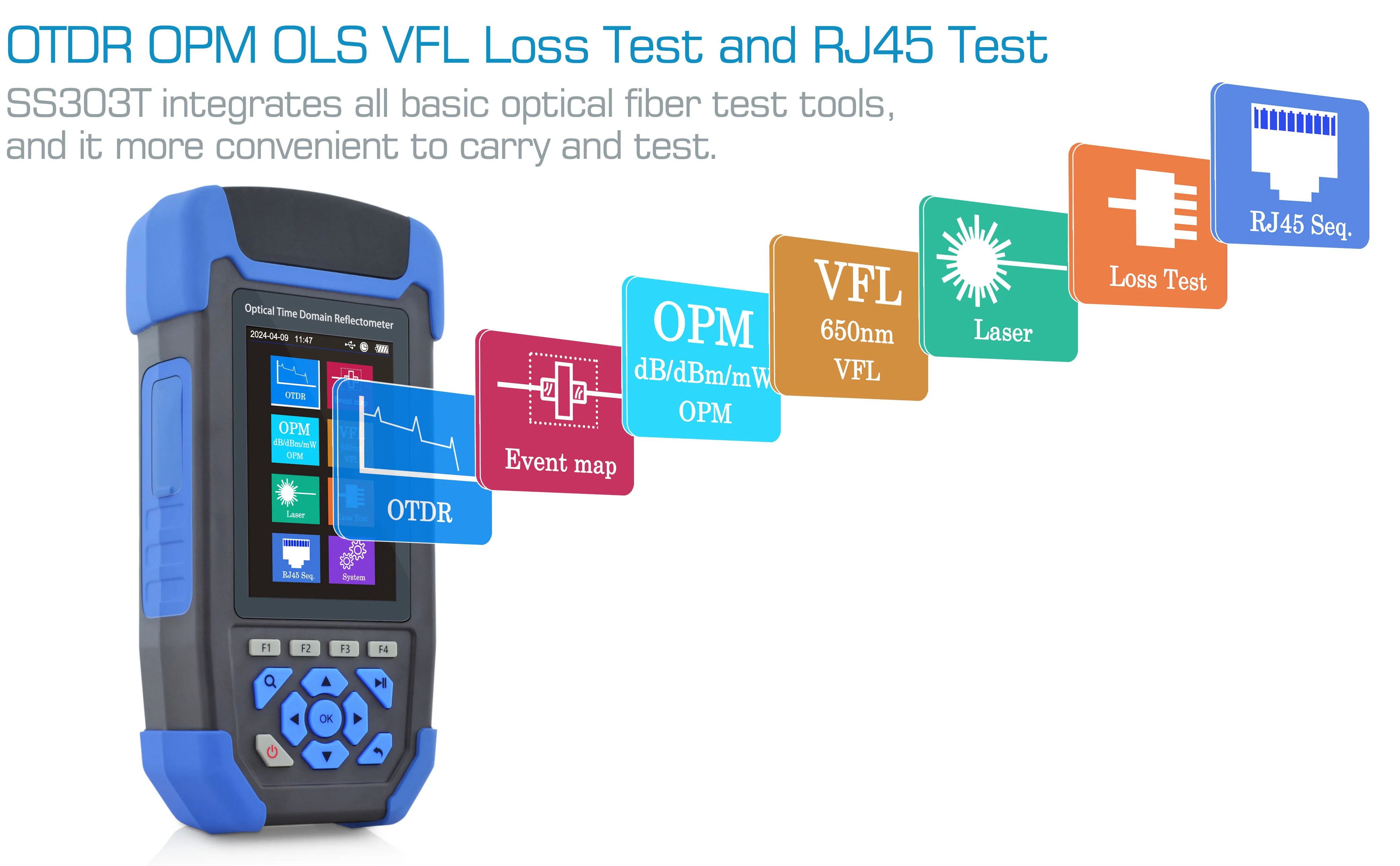

Built-in Auto OTDR+Expert OTDR+OPM+OLS+VFL+Optical Loss Test+RJ45 Cable Tracker

SKYSHL SS303T-2A integrates all the basic functions for testing fibers, including (Auto OTDR/Expert OTDR-1310nm+1550nm/24dB+22dB), visual fault location (650nm,10km), optical power meter (OPM-800nm-1700nm/-50~+24dB),optical light source (OLS-1310nm+1550nm),Optical Loss Test(OFLT-1310nm+1550nm) and RJ45 Cable Tracker(Test Distance>300m). Engineers no longer have to carry a lot of equipment when working outdoors.

SS303T-2A1(1310nm+1550nm 24dB+22dB) SM Fiber OTDR Key Parameters:

• Wavelength/Dynamic range:1310nm+1550nm/24dB+22dB(Max Test Distance:60Km); EDZ/ADZ:2.5m/6m.

• External interfaces:Mciro USB ,RJ45 Port and TF Micro SD.

• Display:3.5 inches HD TFT Color screen.

• Battery:3.7V/4000mAh lithium battery, continuous 11-15hours.

• Optical Power Meter:800nm-1700nm/-50~+26dB;Optical Loss Test:1310nm+1550nm

• Light Source:1310nm+1550nm(≥-5dBm/CW, 270Hz,330Hz,1kHz and 2kHz);VFL:10km(650nm±20nm/CW, 1Hz and 2Hz);RJ45 Cable Tracker:>300m.

• Power Supply:AC/DC adapter:AC100V~240V;DC: 5V(2A).

• Compatible interfaces: SC, ST, FC, LC UPC&APC adapter.

• Dimension:176*85*42mm/0.41kg(Include Battery).

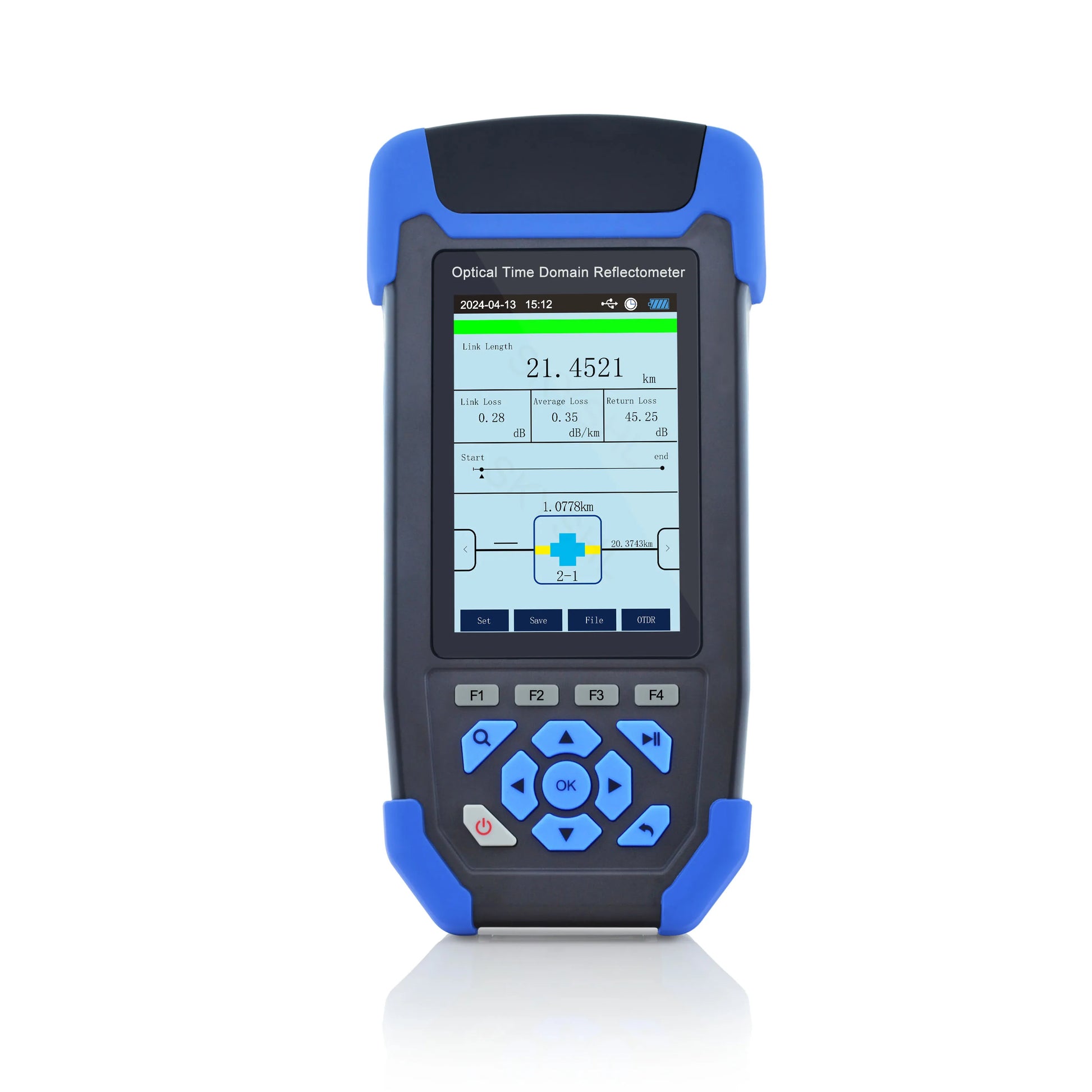

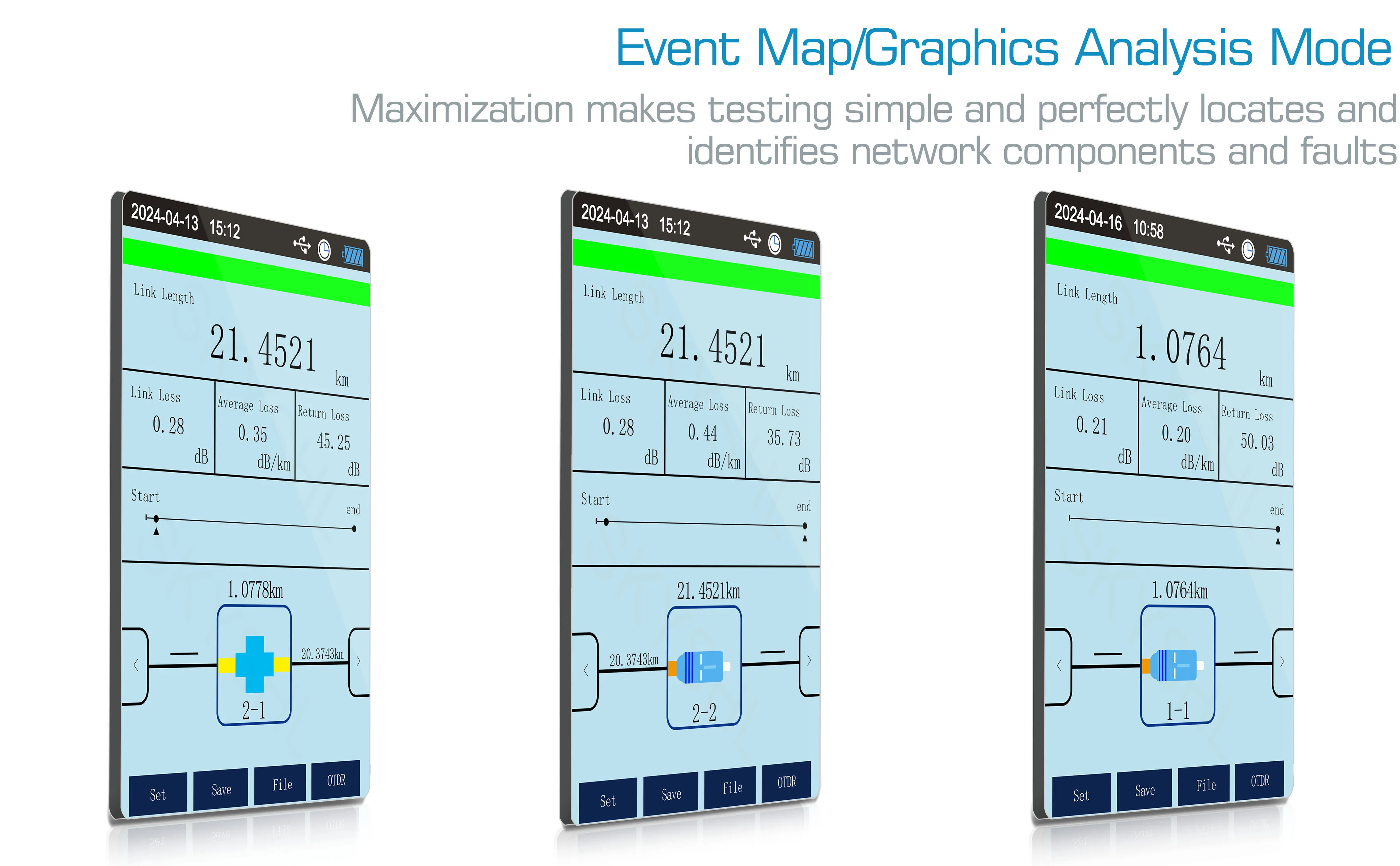

Event Map/Graphics Analysis Mode

The OTDR optical fiber test is simplified through the event map, and the representation accuracy of the network topology is optimized through intelligent algorithms, and all network components and fault locations are dynamically located and identified at the maximum resolution, thereby bringing a new experience to the optical fiber test engineer.

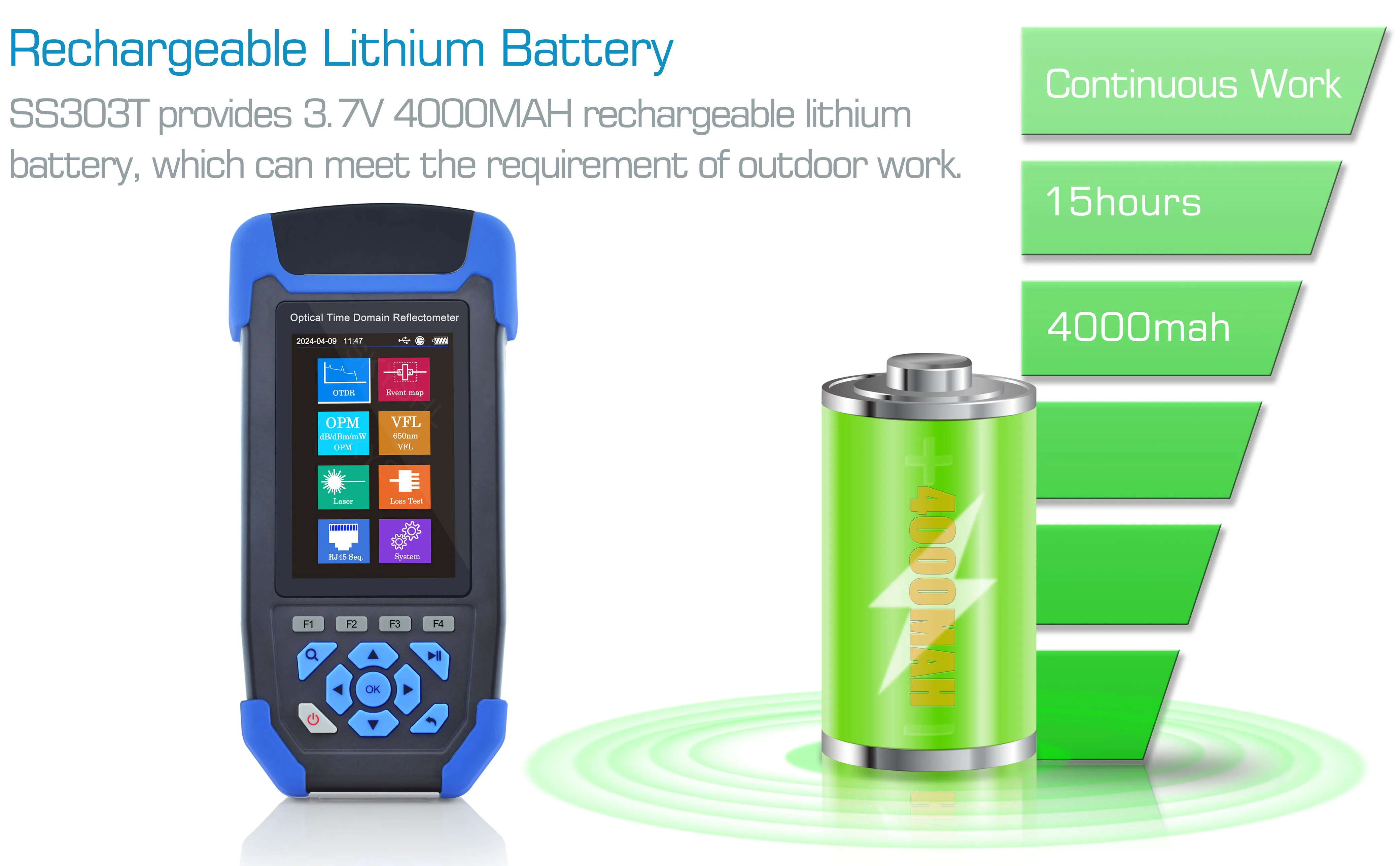

Rechargeable Lithium Battery

SKYSHL SS303T fully understands the needs and worries of users who work outdoors, and provides a set of high-quality large-capacity rechargeable lithium batteries (3.7V 4000mah) according to the actual needs of customers. It can work continuously for 15 hours on a full charge, basically satisfying users’ needs when work outdoors.

SS303T-2A(1310nm+1550nm 24dB+22dB) SM Fiber OTDR Applications:

• Characterize point-to-point access & metro fiber networks.

• Qualify and troubleshoot FTTH/PON networks.

• Qualify and troubleshoot singlemode FTTA/DAS front haul.

• Fiber Optic Lab Testing.

• LAN,WAN for the purpose of telecommunication networks.

• CATV systems.

• Long distance optical networks.

• FTTH Testing.

• Other Fiber Optic Measurements.

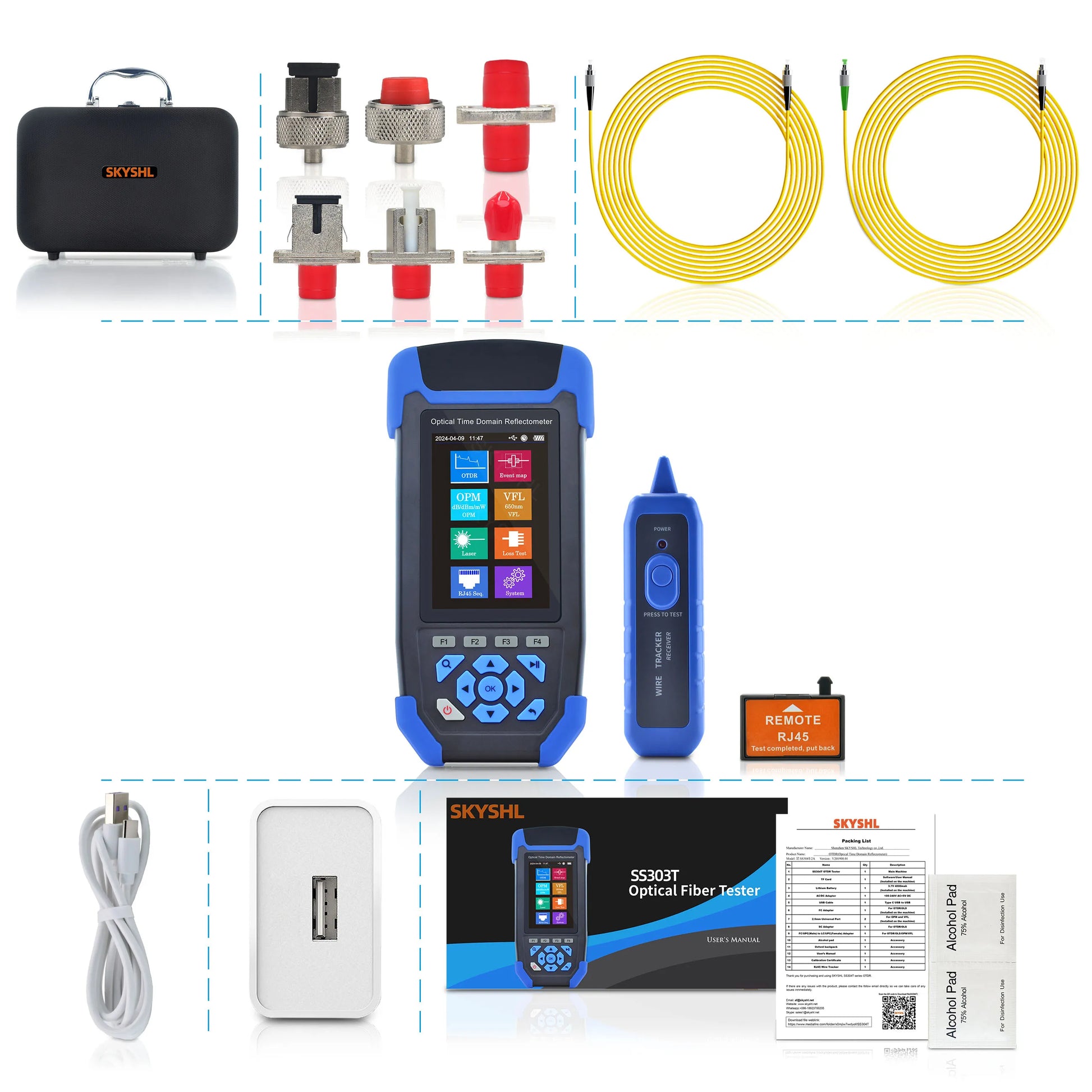

SS303T-2A(1310nm+1550nm 24dB+22dB) SM Fiber OTDR Package List

1*OTDR+1*SC&FC/UPC for OTDR+2*2.5mm universal connector for OPM&VFL+1*FC-LC UPC Adapter+1*User Manual+1*USB Cable+1*Charger+1*Alcohol cleaning cloth+1*Oxford backpack+1*Calibration report+1*RJ45 cable locator
