SUWOLF 4.3" Touch LCD Screen High Precision Fiber Optic Fusion Splicer Machine for SM, MM, NZ-DS, EDF Fibers (FS37)
SUWOLF 4.3" Touch LCD Screen High Precision Fiber Optic Fusion Splicer Machine for SM, MM, NZ-DS, EDF Fibers (FS37)
Couldn't load pickup availability
SPECIFICATIONS
Applicable fiber: SM, MM, NZ-DS, EDF Fibers
Average Splice Loss: 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Brand Name: SUWOLF
Display: 4.3" Touch LCD Screen
Electrodes Life: >5000 times
Fiber Alignment: Core to Core Alignment by PAS technology
Fiber Image: 300 X or Y view, 130 X and Y view
Heating Time: 15s
Model Number: FS37A
Power supply: lithium battery 4000mAh 11.1V
Product Size: 208Lx137Wx102H mm / 8.2Lx5.4Wx4.1H Inch
Product Weight: 1.36KG/3LB
Return Loss: ≥60dB
Splicing Time: 7s
Parameter
Splicing Fibers Type:SM, MM, NZ-DS, EDF ,Pigtail, Rubber-insulated wire Series;
Average Splice Loss:0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF);Return Loss:≥60dB;
Splicing time: <7s;Heating time<15s (adjustable);
Fiber Alignment: Core to Core Alignment by PAS technology;
Electrodes Life:>5000 times, easy to replace electrodes;
Power supply:Built in lithium battery 4000mAh 11.1V; AC adaptor: 100～240V,50/60Hz;DC adaptor: 11.1V voltage
Battery Life:Cycling charge 300-500 times, easy to replace battery;300 cycles splicing and heating
Fiber Image/ Magnification:X 300/130
Language:English, German, French, Spanish, Italian, Portuguese;
Weight:1.36KG/3LB;Size:208(L)×137(W)×102(H)mm / 8.2(L)x5.4(W)x4.1(H)Inch
FS37A Core to Core Alignment Fusion Splicer

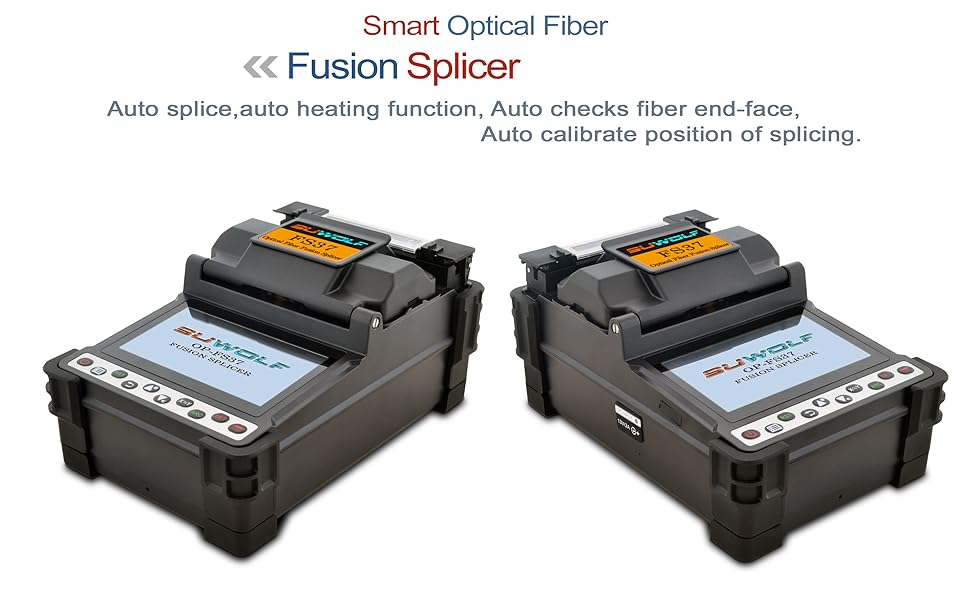

SUWOLF FS37A fusion splicer adopt high-speed image processing technology and special precision- positioning technology,automatically finish the whole process of fiber fusion in 8 seconds typically, LCD monitor displays all steps of fiber fusion clear at a glance.
Widely used for SM and MM Quartz Fiber with diameter 80-150μm, coating layer diameter 0.1-1.0mm and bare fiber length 16mm more or less. Ideal tools for construction and maintenance of fiber and cable in both field and laboratory applications.
Package Include
1*Fusion Splicer,1*Fiber Cleaver,1*Fiber Stripper,1*100-240V AC adapter,1*11.1V 4000mah Li Battery,4*Spare Electrodes(Total 6 pcs),1*Cooling Tray,1*User Manual CD,1*Plastic Carrying Case
FS37A Optical Fiber Fusion Splicer Features

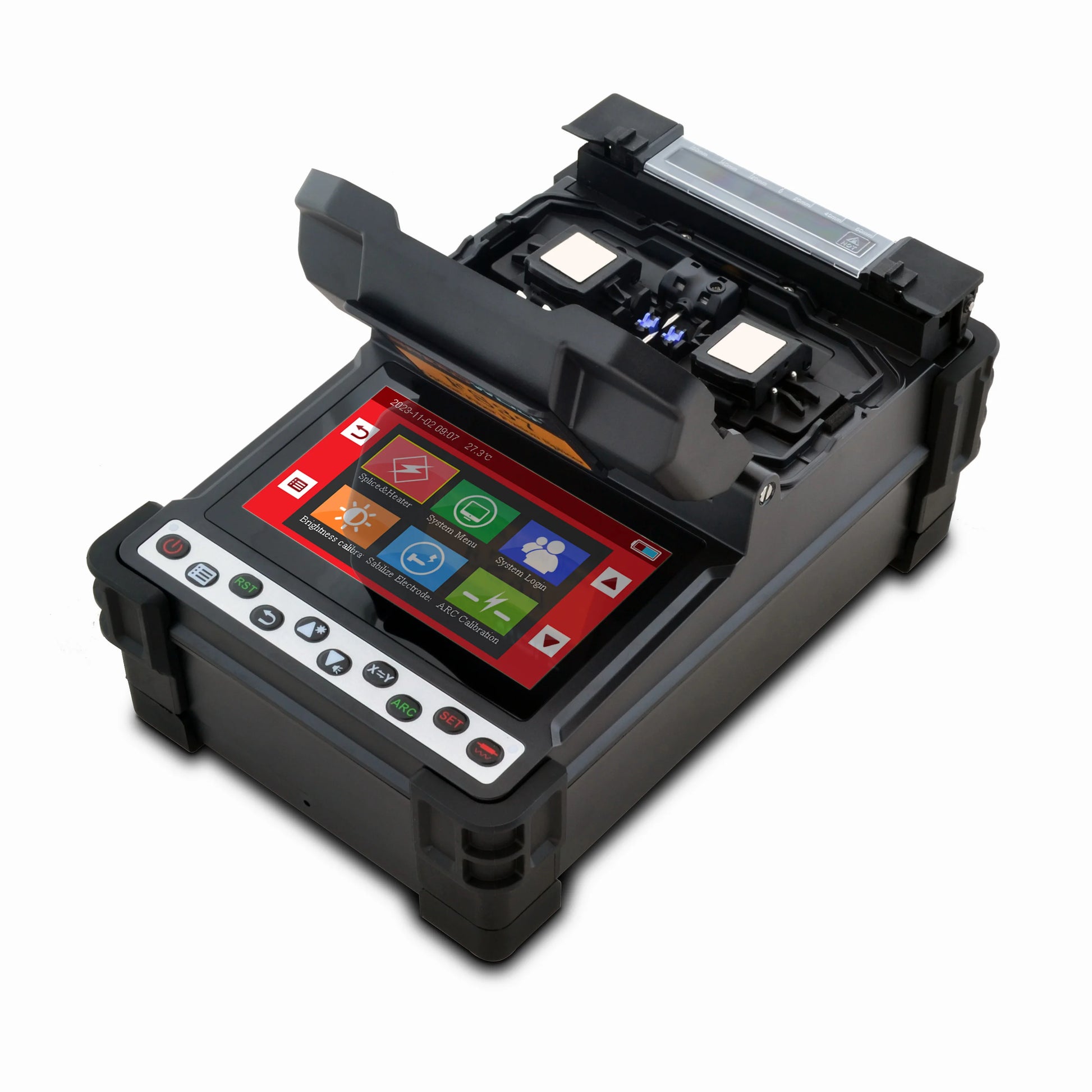

High-resolution true color Rotary outdoor-enhanced anti-glare 4.3 inch TFT LCD display.high contrast and vividness. Simultaneous display of X and Y axes.
The advanced core to core fiber profile alignment system(PAS).
Real time calibrating system,parameter needn’t be adjusted.
X/Y axes were displayed meanwhile,300 X or Y view, 130 X and Y view.
Reduced splicing time and Heating time--Only 7 seconds splicing time, only 15 seconds Heat-Shrinking.
Battery capacity was display in real time, precisely.
Built-in 11.1V 4000mah high capacity battery, support 240 times splicing and heating, to meet one days’work.
6pcs Long Electrode Lifetime, Each pair electrode life is up to 5000 times,without splicing quality loss.
The new wind-protective lid, heater, fiber holders design. Increased waterproof, dust and shock resistance, may be used under severe environment conditions. Max wind velocity of 20m/s.
Three Splicing modes: auto, half-auto, manual.
Built-in super high-brightness LED supply convenience for day and night work.
Auto calculate splicing loss,Splice Loss: SMF/BIF: ≤0.02dB(typ.); MMF: ≤0.01dB(typ.); DSF/NZDSF: ≤0.04dB(typ.)
Small bulk and light weight, only 1.36kg include battery.
New comfortable High-strength engineering plastics carrying case,It can protect the fusion splicer and avoid the damage of the fusion splicer.meanwhile,The case may be used as a simple working table. Operation manual is installed into the splicer.
10000 results Storage
Splicing Fiber Type
SUWOLF FS37A Fusion Splicer is core-to-core alignment single fiber splicer, which is designed for splicing single-count optical fibers: SM (G.652/657), MM (G.651), DSF (G.653), NZDSF (G.655) for telecommunication use, PON/FTTx networks, etc.

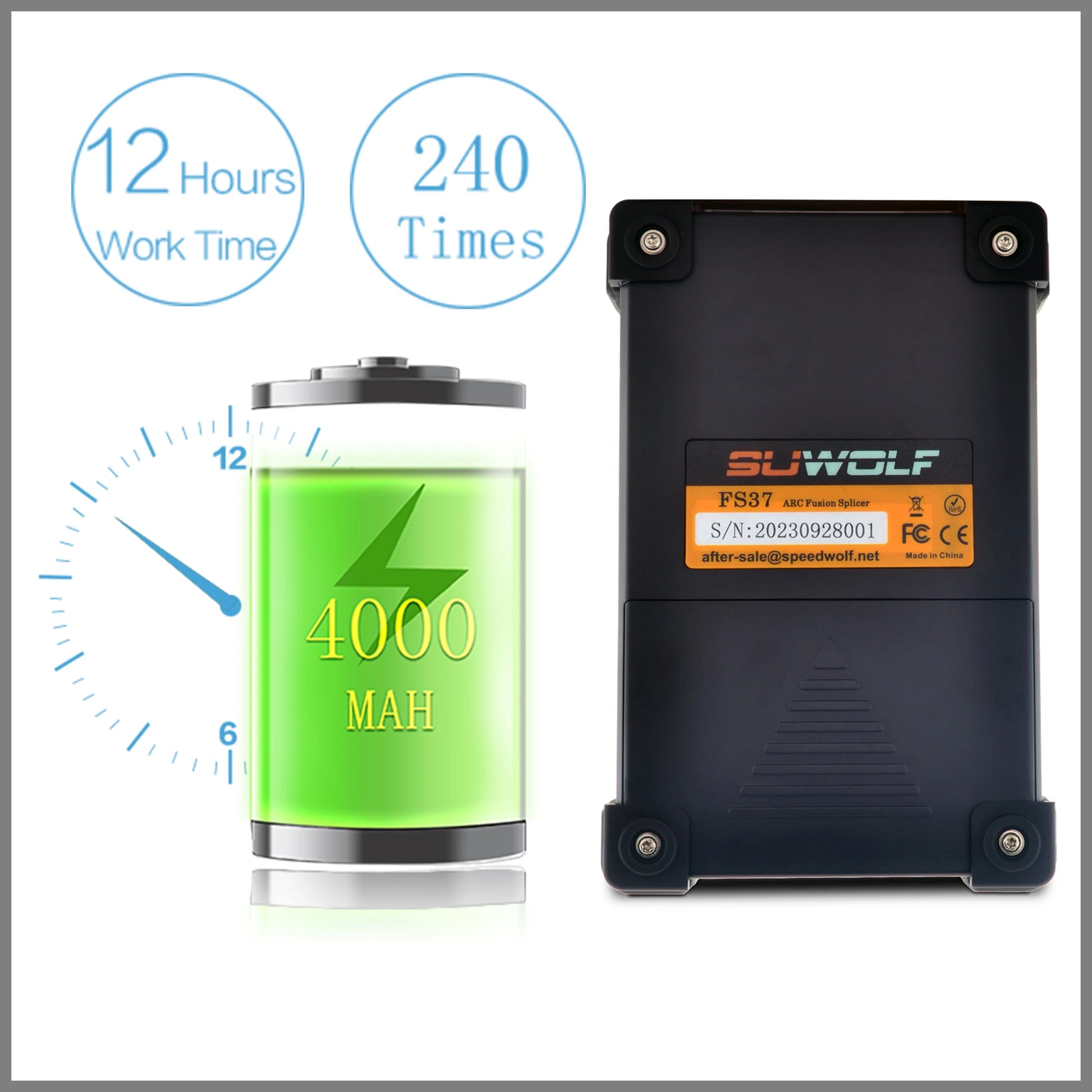

11.1V 4000mah Li-ion Battery
SUDWOLF FS37A Fusion Splicer built-in 11.1V 4000mah high capacity battery, support 240 times splicing and heating after full charge, to meet one days’work. and it is easy to replace battery.

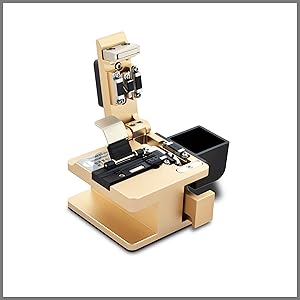

Fiber Cleaver with 16Surface Blade
Optical Fiber Cleaver is imported from Korea developed a technology for Splice can meet the heat-fusible fiber a multi-purpose cutters;and it using high-strength blade surface 16 points, longer life, comes with triple fixtures can be incision line, pigtails and bare fiber.
Mini Size
FS37A have small size and light weight---The size is only 208(L)×137(W)×102(H)mm / 8.2(L)x5.4(W)x4.1(H)Inch,the weight is only 1.36KG including batter.

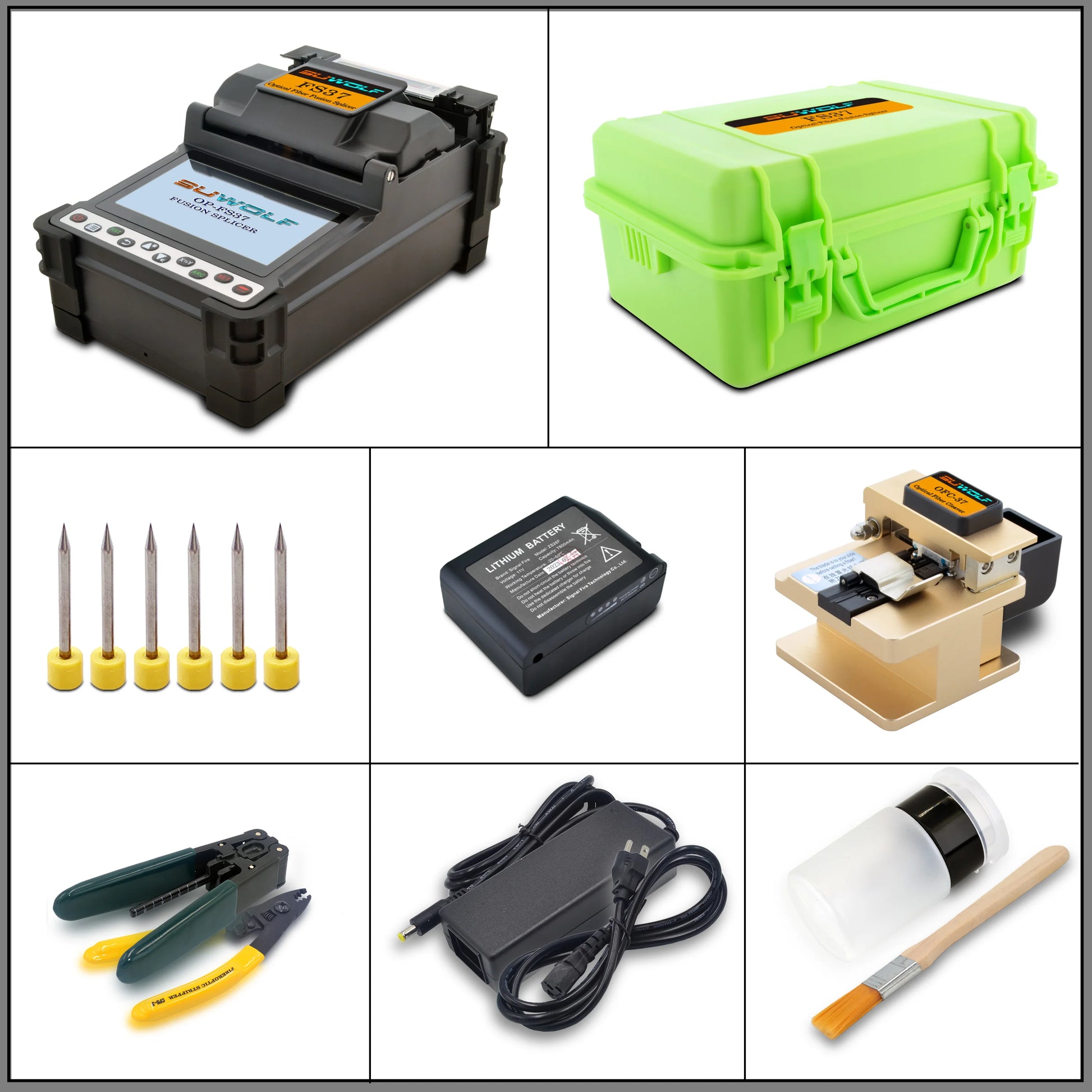

Plentiful Accessories
1*Fusion Splicer,1*Fiber Cleaver,1*Fiber Stripper,1*100-240V AC adapter,1*11.1V 4000mah Li Battery,4*Spare Electrodes(Total 6pcs),1*Cooling Tray,1*User Manual CD,1*Plastic Carrying Case.
Quality Control
The hallmark of SUWOLF is quality. All of our commitments,actions and products must be recognized as an expression of quality. Our most important criterion of quality is the satisfaction of our customers.
