SPECIFICATIONS

Brand Name: ZoeRax

Certification: CE,UL

Feature: CAT6/CAT5E

Feature 2: multi-function crimping pliers

Feature 3: Network Tool Kit

Hign-concerned Chemical: None

Model Number: M7

Number of products: 8 in 1

Package: Yes

Product Name: Cat6 Cat5e Crimp Tool Kit

Product Weight: 0.97KG

Type: Cable Crimper

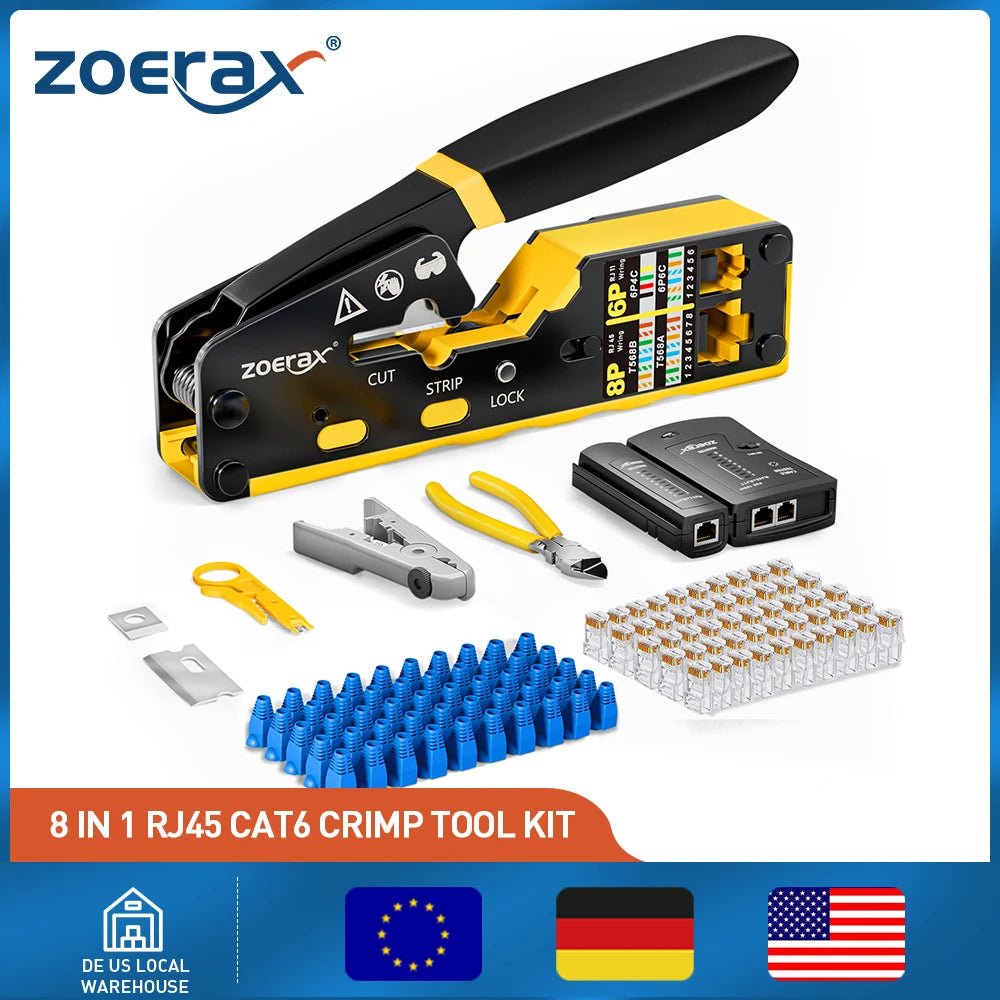

ZoeRax 8 in 1 RJ45 Crimp Tool Kit with Crimper tool Cable Tester Wire Cutter Blades 50Pcs Cat 6 Connectors and Strain Relief Boots

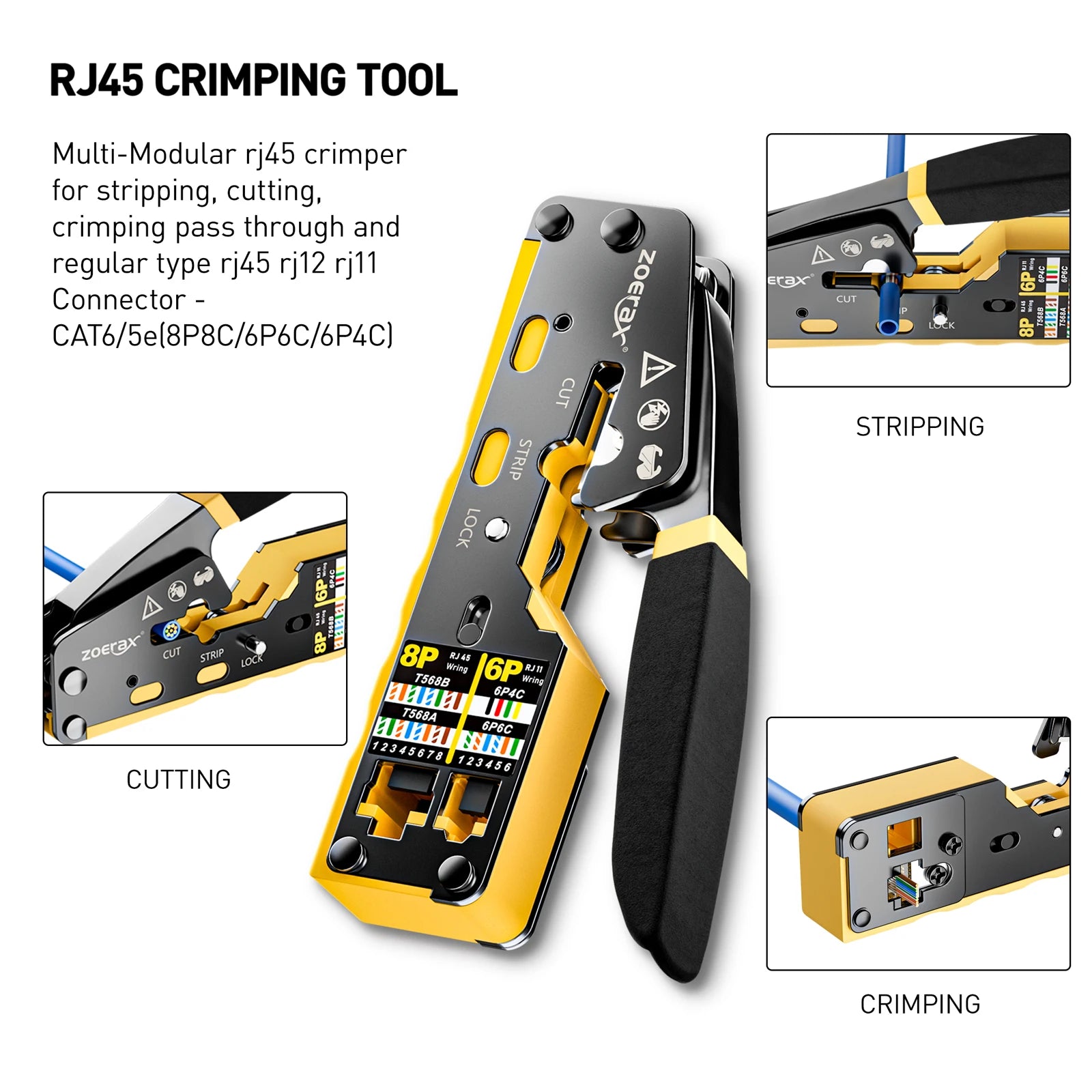

RJ45 CRIMPING TOOL

Multi-Modular rj45 crimper for stripping, cutting,crimping pass through and regular type rj45 rj12 rj11 Connector-CAT6/5e(8P8C/6P6C/6P4C)

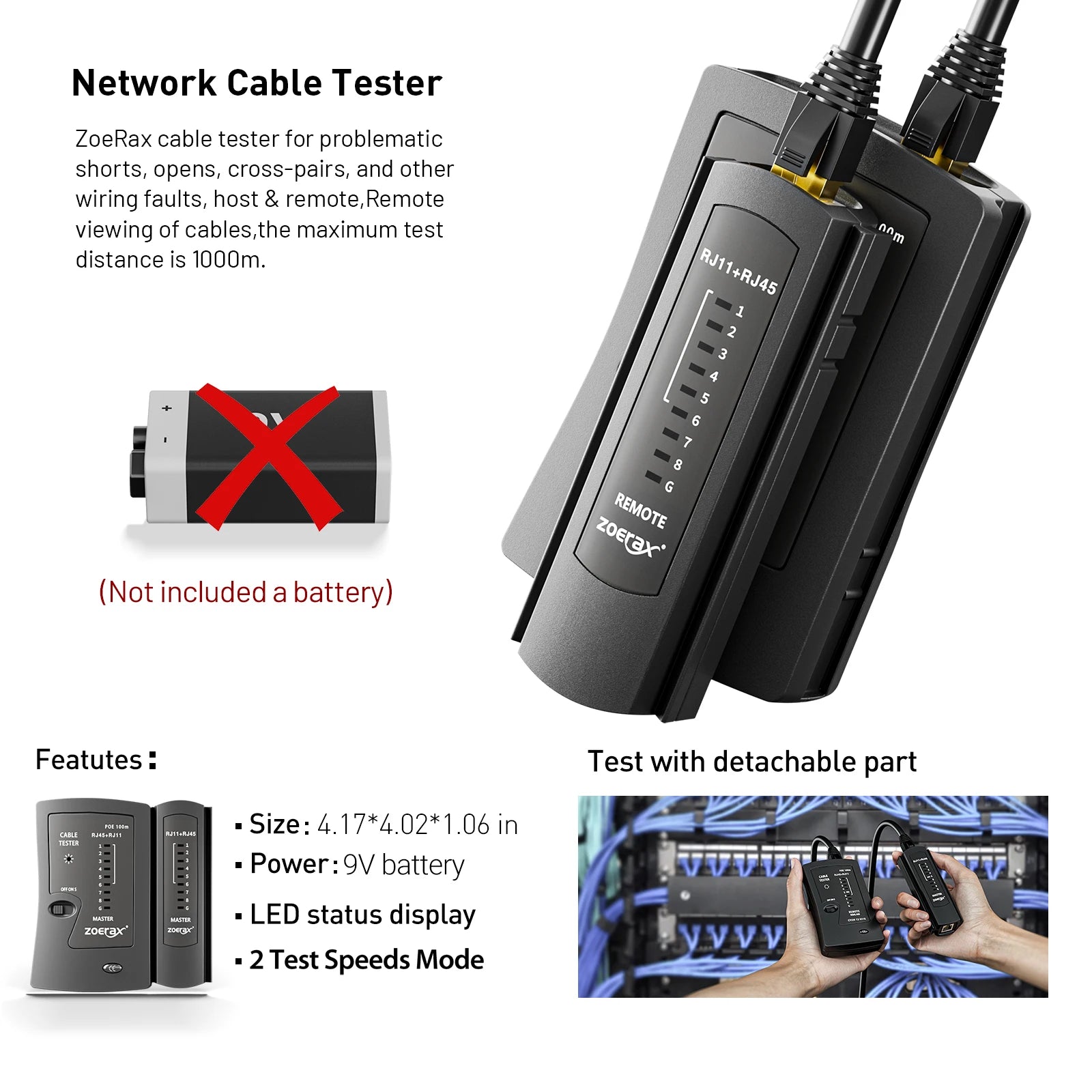

Network Cable Tester

ZoeRax cable tester for problematic shorts,opens, cross-pairs, and other wiring faults, host & remote,Remote Viewing of cables,the maximum test distance is 1000 m.

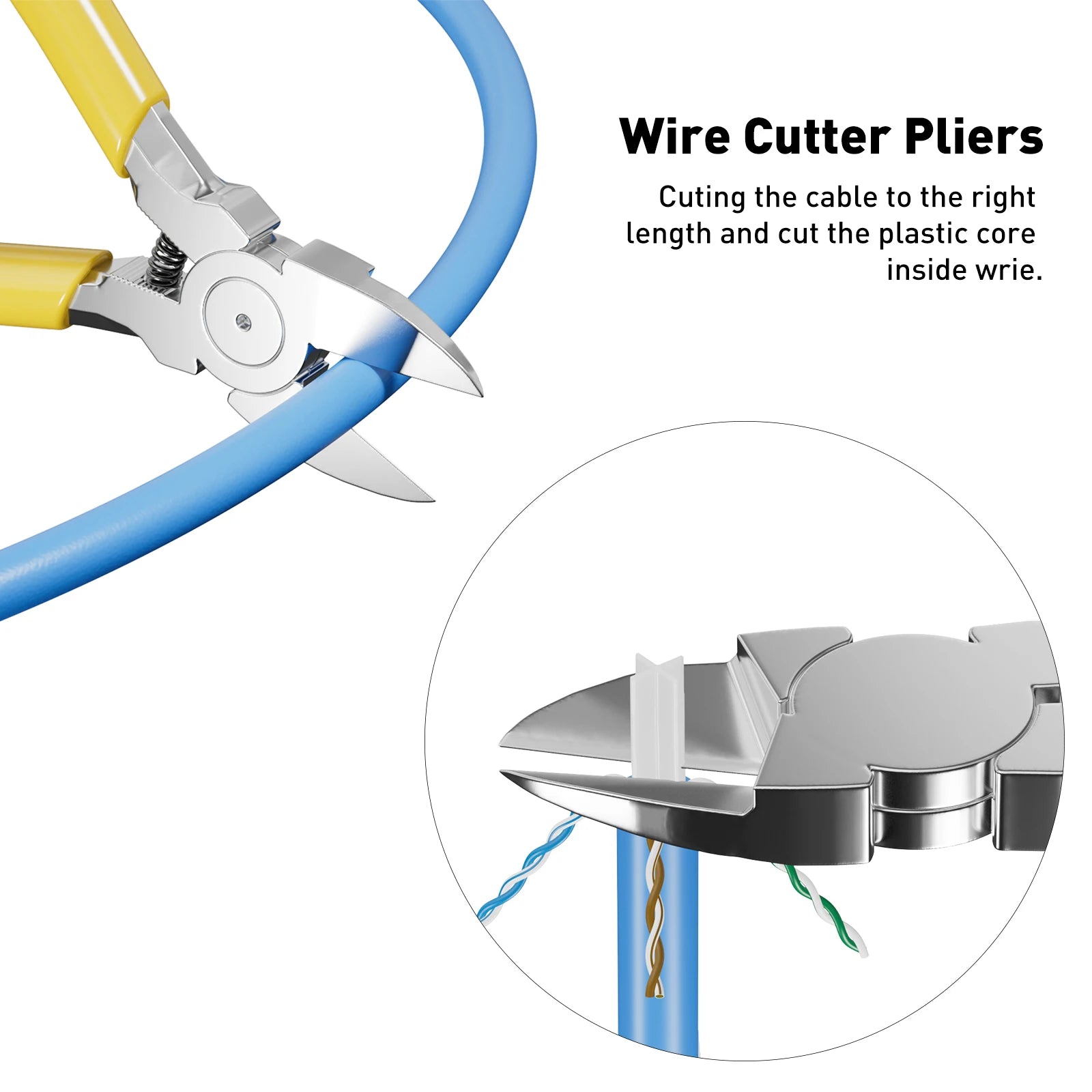

Wire Cutter Pliers

Cutting the cable to the right length and cut the plastic coreinside wire.

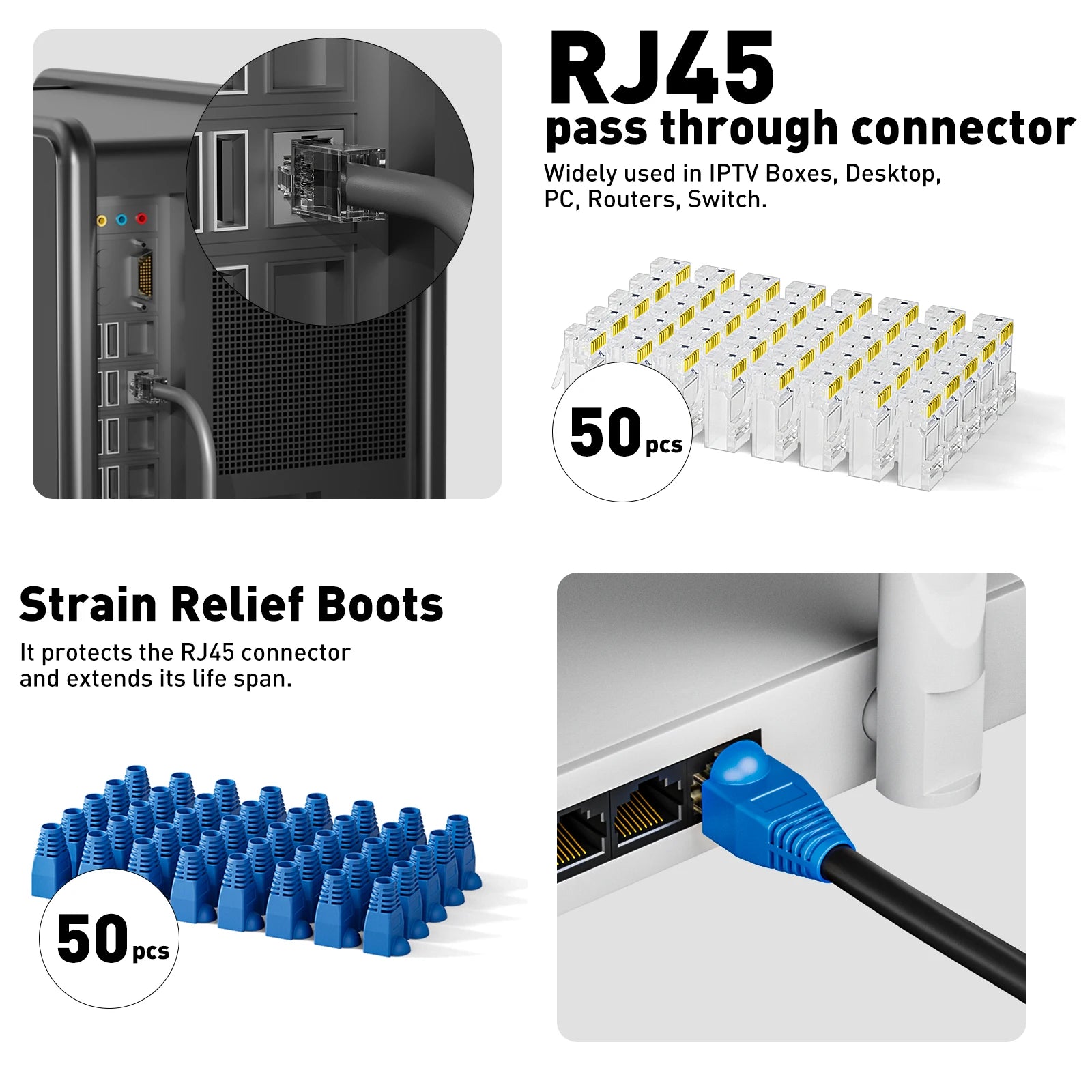

RJ45 pass through connector

Widely used in lPTV Boxes, Desktop PC.Routers, Switch.

Strain Relief Boots

It protects the RJ45 connector and extends its life span.

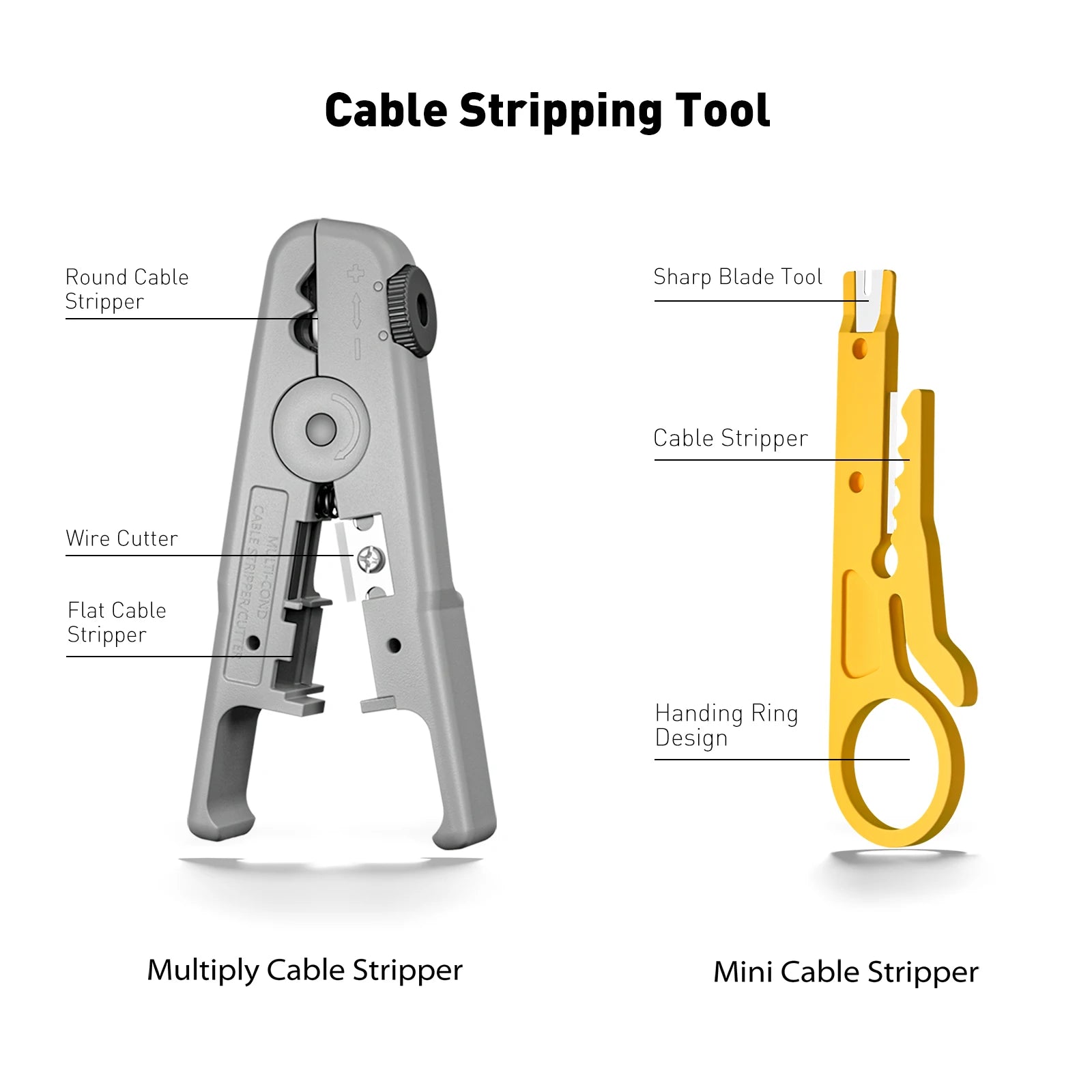

Cable Stripping Tool

with Multiple Cable Stripper and Mini Cable Stripper

HOW TO MAKE A RJ45 CABLE

Step 1：Trim excess cable

Step 2： Strip the Jacket off

Step 3 ：Separate wires andarrange based on T568A/B

Step 4: Put the wires intocrimp dies the squeeze

Step 5: Precisely Crimp andtrim excess wires at the same time

Step 6: Ensure all pins areset and use RJ45 tester tocheck

Packing List

1*Blades
*Multi-function Crimping Tool
1 Pack*RJ45 Pass Through Connectors
1*Wire Cutters Pliers
1*Mini Wire Stripper
1Pack*Strain Relief Boots
1*Multiply Cable Stripper
1*RJ45 Cable Tester
